DESIGNED BY DR. R. LORINCZMANUFACTURED BY LDO MOTORS1 DECEMBER OF 2021One of the most expected project of 2021, theOrbiter v2.0 High precision direct drive extruder using custom manufactured by LDO Motors. This is our finest direct drive extruder system in which we have integrated all what we learned about extruders in the past years.   Features: 1. Shorter drive gears 11mm vs 15mm 2. Hardened filament drive gears manufactured by Bondtech 3. Weight reduced to ~135 grams 4. Smaller more compact dimensions (11.6% shorter) 5. New motor design offers ~40% increase in pushing force in real printing conditions and much improved acceleration performance 6. Flipped drive gears – filament path closer to the extruder center for a more balanced design and perfect fit on delta printers as well 7. Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing experience and extreme wear resistance when using abrasive filaments. 8. High temperature resistant injected housings, GPA12 9. Machined PEEK secondary drive gear sleeve 10. Tension mechanism with grab screw design (Captive Grab Screw) 11. Mounting screws in line with filament exit path – improving housing stiffness and easier mounting 12. Perfectly aligned filament path 13. New smaller and better PTFE input coupler 14. Motor position rotated by additional 10 degrees for easier maintenance and assembly 15. Filament sensor add on with auto load and unload button add on feature 16. And many more small changes to improve mechanical accuracy and design look

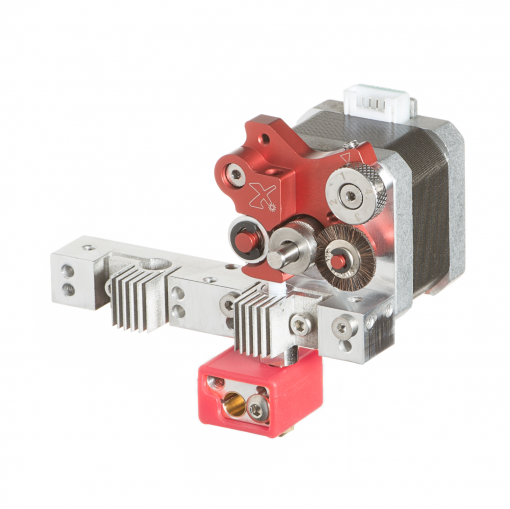

Description 3D printer extruder retrofit kit for dual-extruder direct-drive machines, such as the Flashforge Creator Pro, QiDi Tech, Powerspec Ultra, CTC Dual Extruder, and Makerbot Replicator 2X. The Flexion extruder will allow full-speed printing of flexible filaments and improved accuracy printing with PLA and ABS. The precision machined components allow your printer to push on filament harder, achieve high pressure in the nozzle, and control of feed rates very closely. The self-cleaning drive will keep your long prints from failing due to a clogged drive. Works will with Ninjaflex, Filaflex, flexible PLA, TPU, TPE ultra-flexible filament down to 50 Shore A, and all the standard rigid filaments like ABS and PLA. Fits all of the most common dual extruder printers – Flashforge Creator Pro, Powerspec Ultra, QiDi Tech, Malyan M180, Wanhao Duplicator 4s, CTC, etc. Please note, the QiDi and CTC stock extruders are NOT compatible, so you will not be able to mix your stock and Flexion extruder. Also for QiDi, the temperature sensor location is moved and will read 10-15° low, so turn your print temperatures down. The Flexion Extruder uses a high-stiffness lever to compress the filament. The compression is controlled with a cam and an adjust screw, rather than the traditional spring. This allows more tension and more precise control of the tension. To learn more about the benefits and drawbacks of this system, please read our blog post about it. This kit requires you to disassemble your printer’s extruder and reinstall this upgrade. Detailed instructions on this process can be found on our support page. Additional information Weight 1 oz Works with Flashforge Creator, Monoprice Dual, Dremel, Wanhao 4S, Powerspec Ultra, CTC Dual Extruder, and many others Includes Mounting block 2x Tensioning arm with idler and cleaning brush (one right and one left) 2x Adjustment cam 2x Drive gear 2x Feed barrel 2x Heater block 2x Insulation for heater block 6 nozzles – 2 each 0.3, 0.4, 0.5 mm orifice 2x Adapter shim to allow 6mm and 0.25″ heater cartridges 4 PTFE feed tubes 2 spare cleaning brushes All mounting hardware 6mm and 7mm wrench for installing nozzles "Flexion inside" quick-guide sticker Note: does not include stepper motor or motor mounting screws

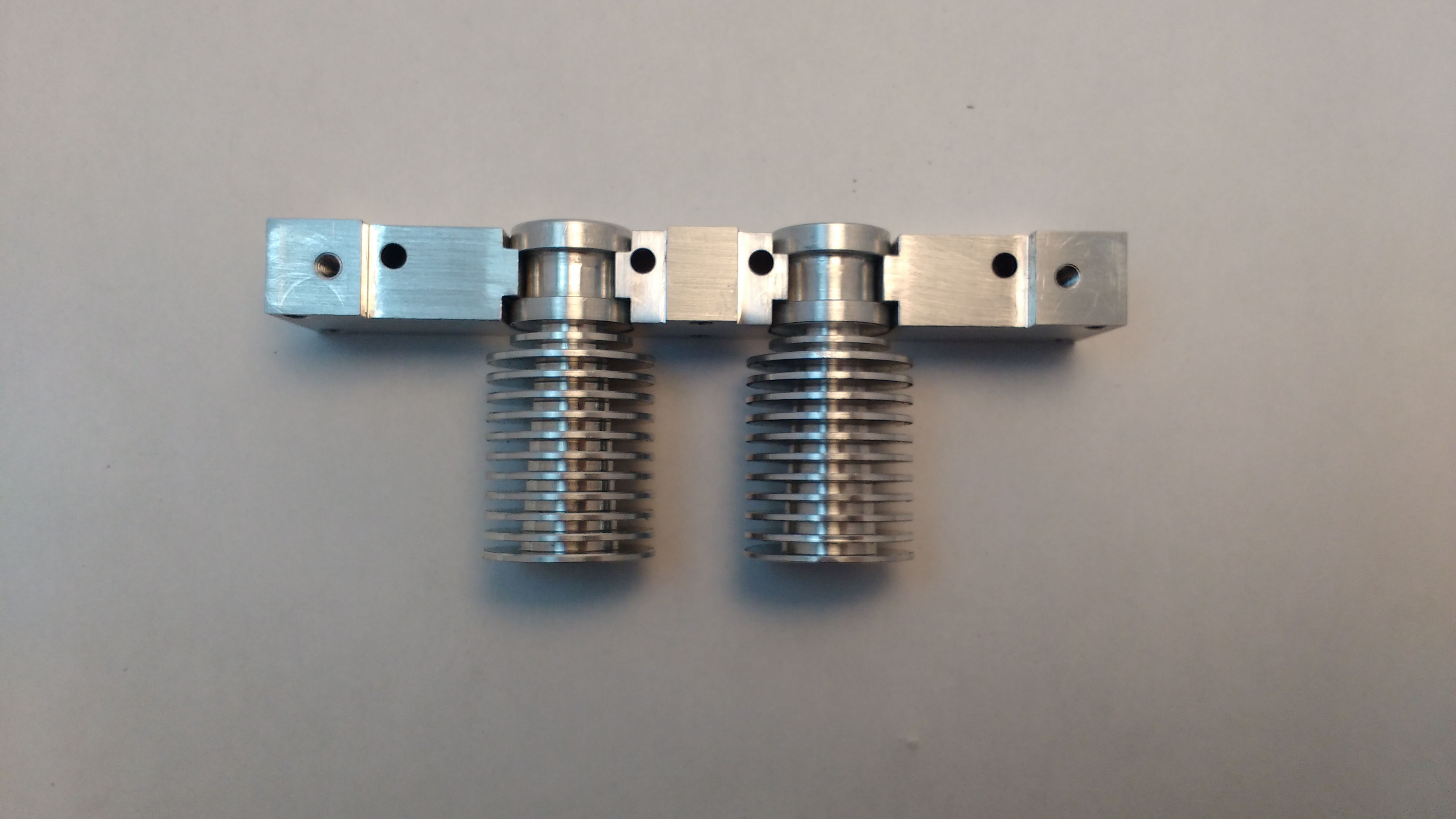

Flexion extruder with an E3D mount. Comes with everything shown in the box: Flexion extruder E3D mounting block PTFE tube that fits the E3D v6 hotend (plus a spare) Clamp plate and mounting screws Spare brush Spare nozzles: 0.2, 0.3, 0.4, and 0.5mm Does NOT include the stepper motor or hotend.. Those can be ordered here. Dual E3D mount. Includes the mounting block and clamp plates, two mirrored Flexion Extruder drives, PTFE tubes for E3Dv6 hotend, and 4 nozzles: 0.3, 0.5, 0.6, 0.8. Does NOT include the E3D hotend, as pictured. 3D printer extruder retrofit kit for E3D v6 hotend (1.75mm). This allows the use of the Flexion Extruder with the excellent E3D hotends – enabling precision extrusion of virtually every available filament from Nylon to ultra-flexible Shore 50A. This uses the same mounting hole pattern as the E3D extruder, and also has a couple mounting holes in the front (see drawing). It includes a PTFE tube cut to length for the E3D v6 hotends. So you’ll have all the same advantages of precision, supported, reliable filament driving with the flexibility to print at much higher temperatures. This kit is appropriate for RepRap and Lulzbot printers by following instructions here. Includes: Flexion extruder E3D mounting block Precision cut PTFE guide tube (plus a spare), and alignment collar. Clamp plate and mounting screws Spare brush Spare nozzles: 0.2, 0.3, 0.4, and 0.5mm orifice Includes Mounting block and mounting hardware Tensioning arm with idler and cleaning brush (one right and one left) Adjustment cam Drive gear Nozzles: 0.2, 0.3, 0.4, and 0.5 mm orifice 2 PTFE feed tubes Spare cleaning brushes “Flexion inside” quick-guide sticker Note: does not include stepper motor or hotend Installation Instructions for Printers The Flexion Extruder is a drop-in upgrade on most common printers

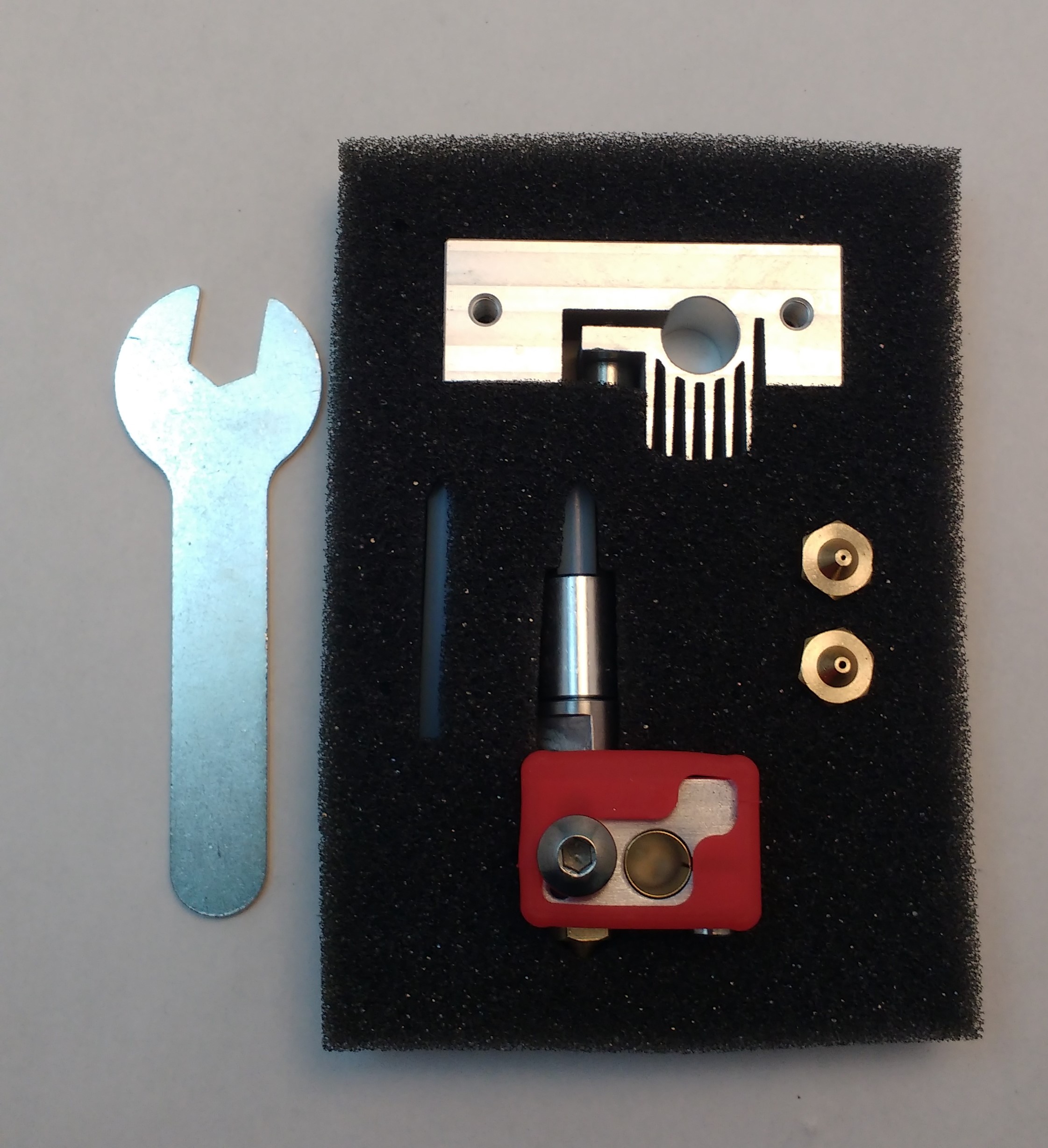

Description High-temperature 3D printer extruder upgrade or retrofit kit for common 3D printers. This upgrade allows printing of materials at up to 290°C. The barrel is designed in collaboration with Micro Swiss. The finned mounting block has several advantages: Better thermal performance Visibility of extruder (you can remove your stock heatsink – but continue to use the fan) Easy removal of the hotend without disassembling the motor and extruder (tool access between fan blades) This kit requires you to disassemble your printer’s extruder and reinstall this upgrade. Instructions will be posted soon. Note: the HT mounting block does NOT include an M6 mounting hole, necessary for HICTOP and some other eBay kit printers.   Additional information   Weight 1 oz Dimensions 3 × 4 × 1 in Works with Flashforge Creator, Monoprice Dual, Wanhao 4S, Powerspec Ultra, and many others (see support pages)
