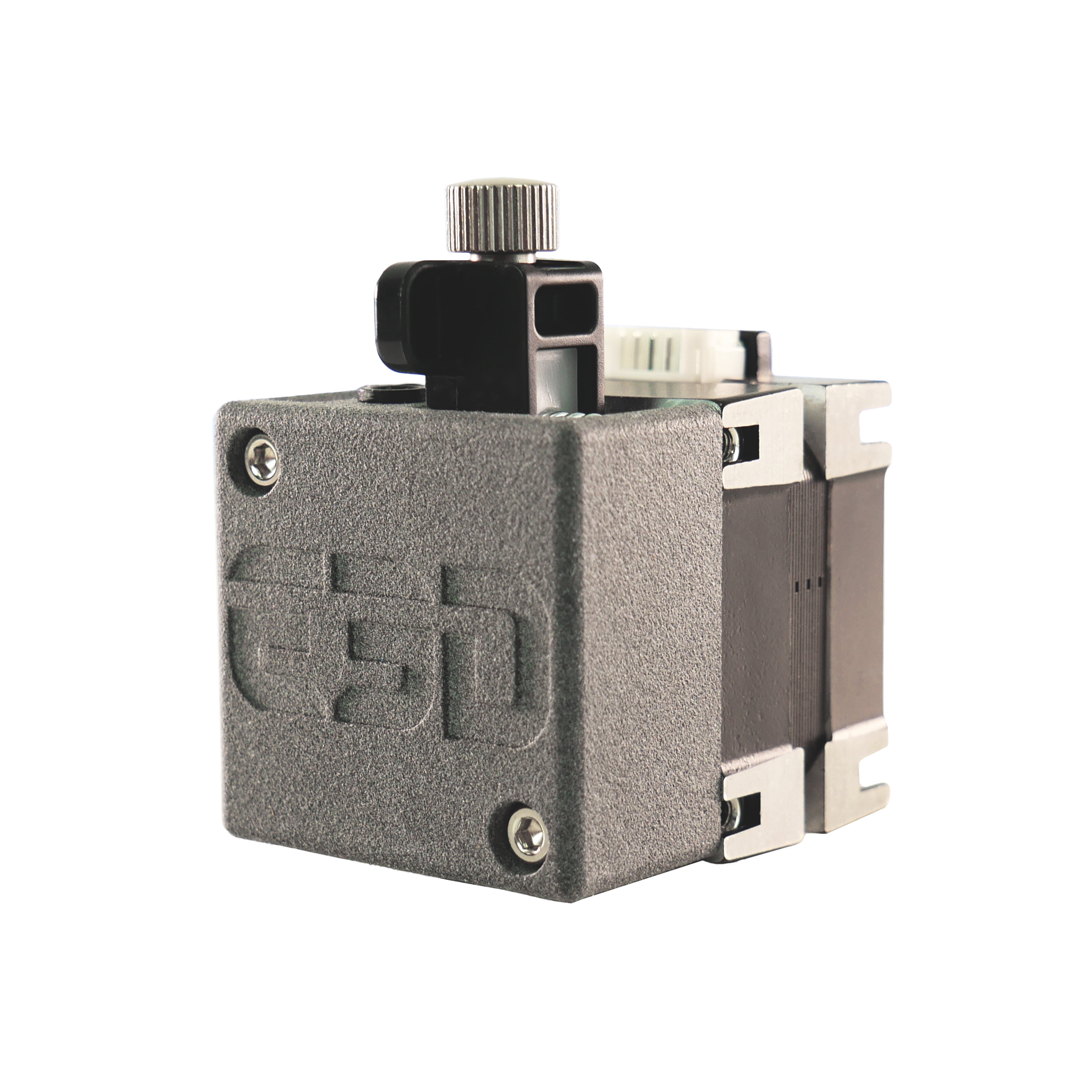

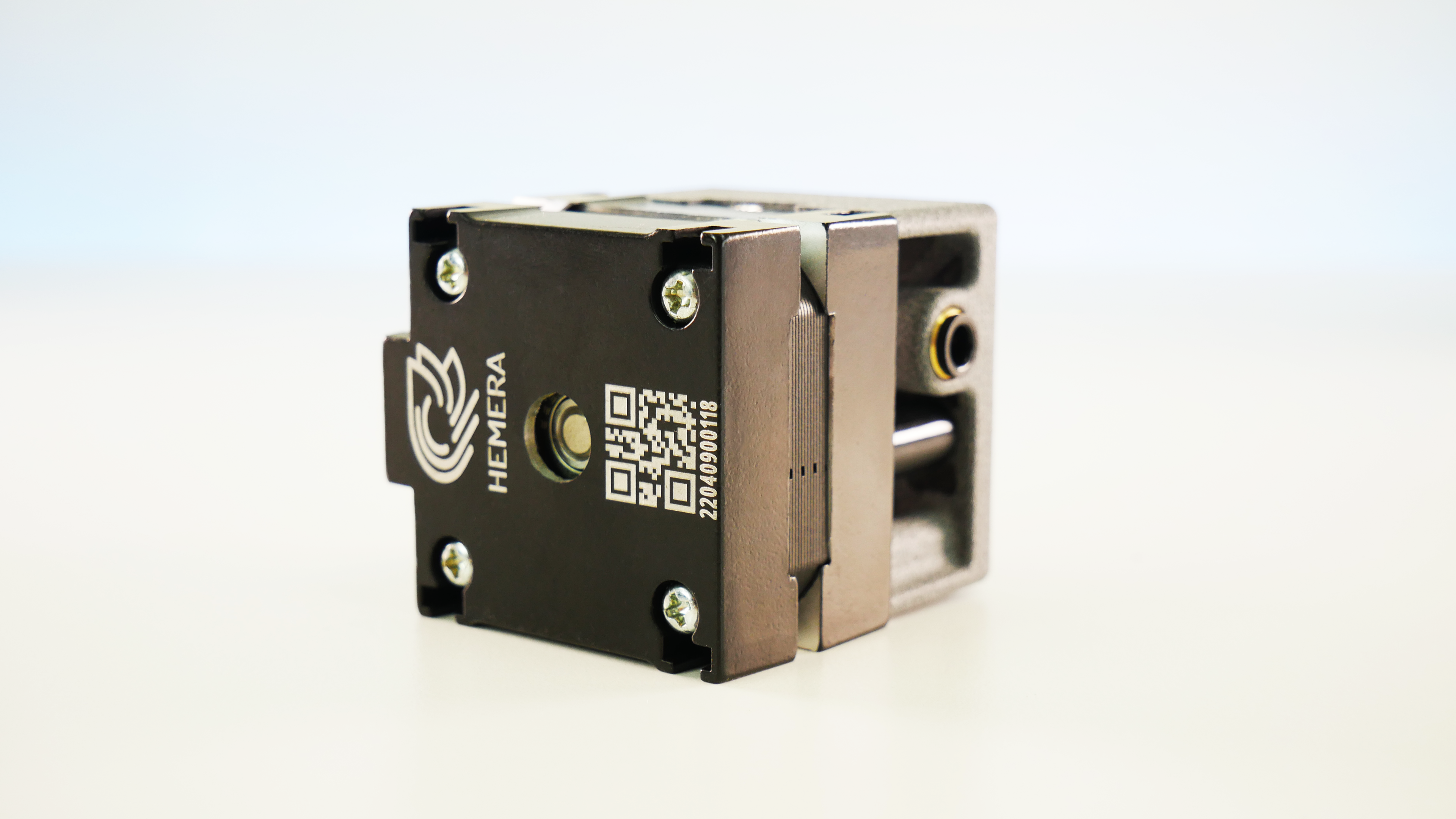

Hemera XS Bowden V2

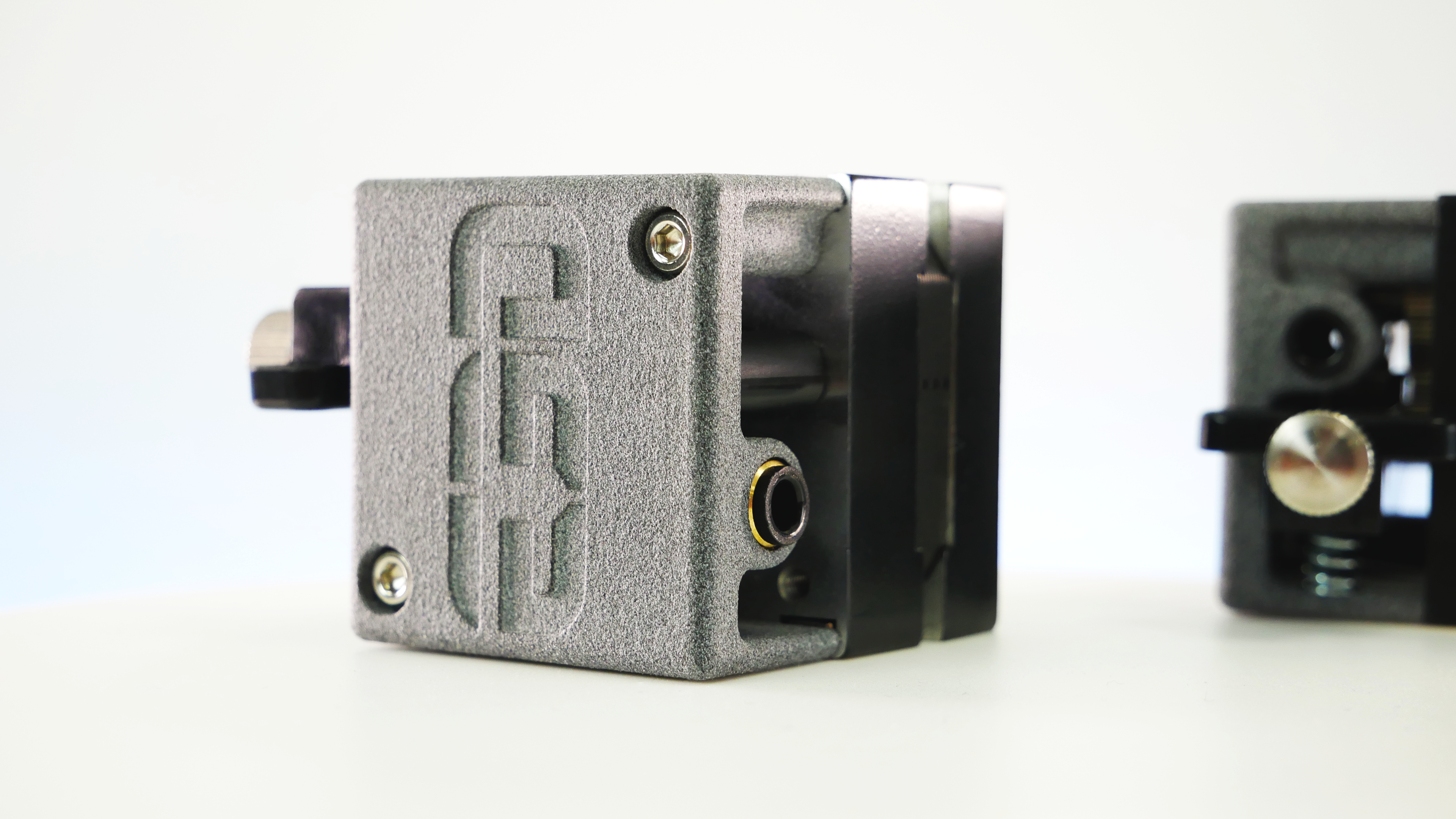

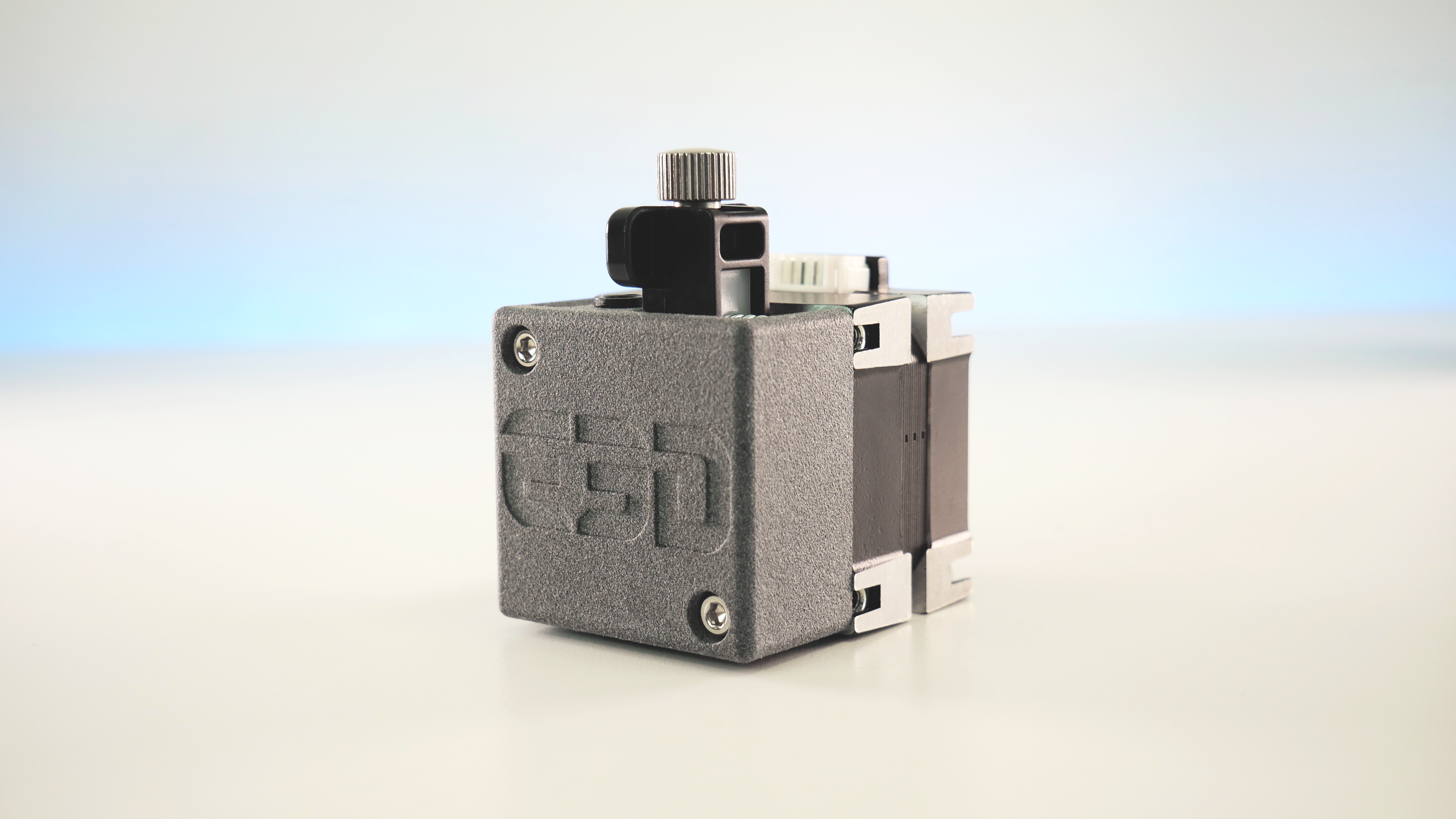

Shorter and lighter. Hemera XS Bowden V2 is 46g lighter and almost 6mm shorter than its predecessor. Achieved by replacing the old heatsink with a 3D-printed, lightweight cover.

Capable of a wide range of 3D printing filaments. Enjoy excellent performance with all 3D printing materials, particularly challenging materials like abrasives.

E3D Ecosystem compatible. The heatsink geometry for Hemera XS accepts the Bowdaptor, Revo Hotsides and V6 ecosystem hotsides.

All the force you need. Hemera XS Bowden has all the extrusion force you need to drive the entire E3D ecosystem, including Revo High Flow and SuperVolcano.

Less likely to strip filament. In the event of a jam, the filament drive train for Hemera XS will stall instead of stripping the filament, making it easier to recover and start 3D printing again.

 T-slot flat mounting. Our custom mounting system means a range of accessories can be mounted on this extrusion system, such as bed levelling probes, expansion boards, and more!

Please note:

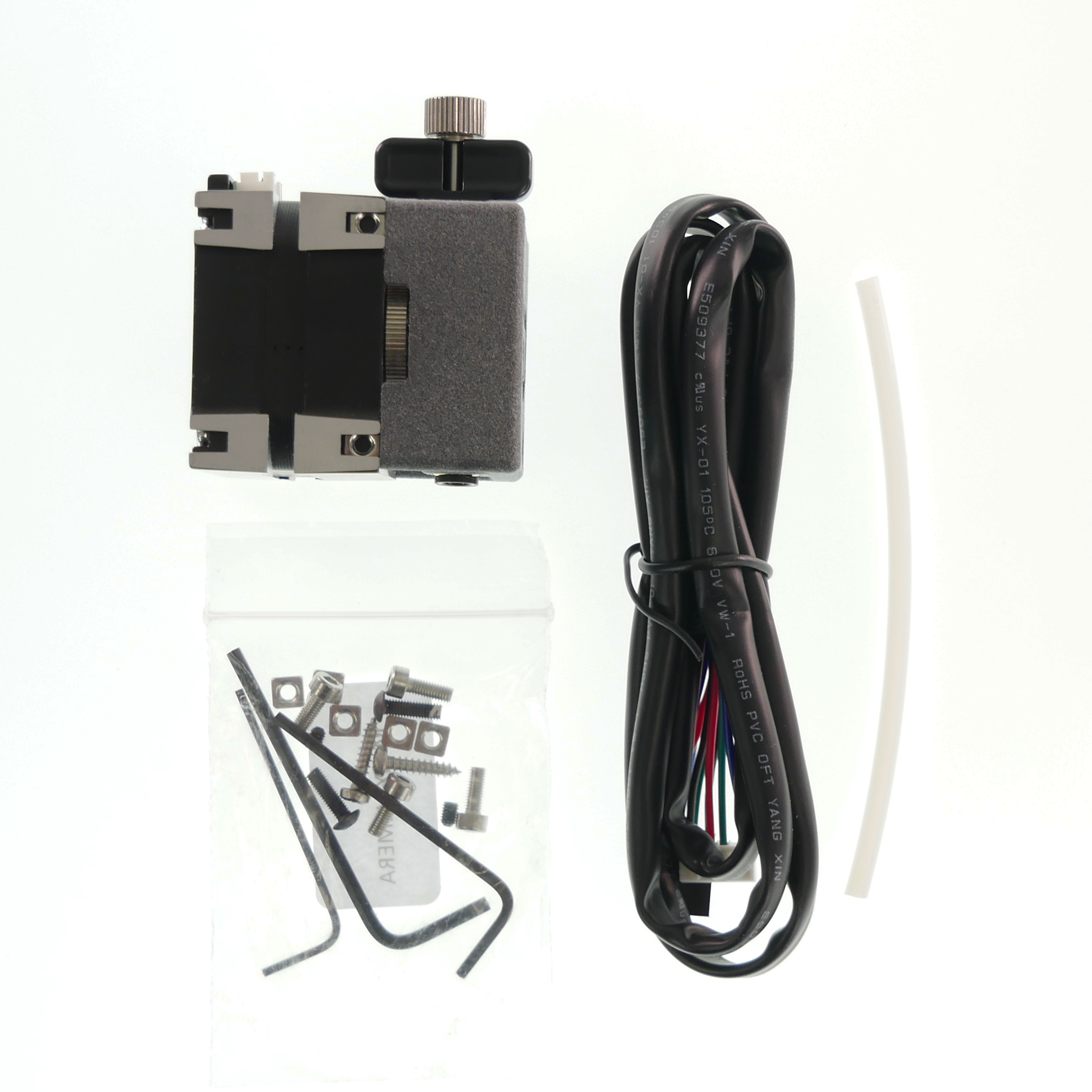

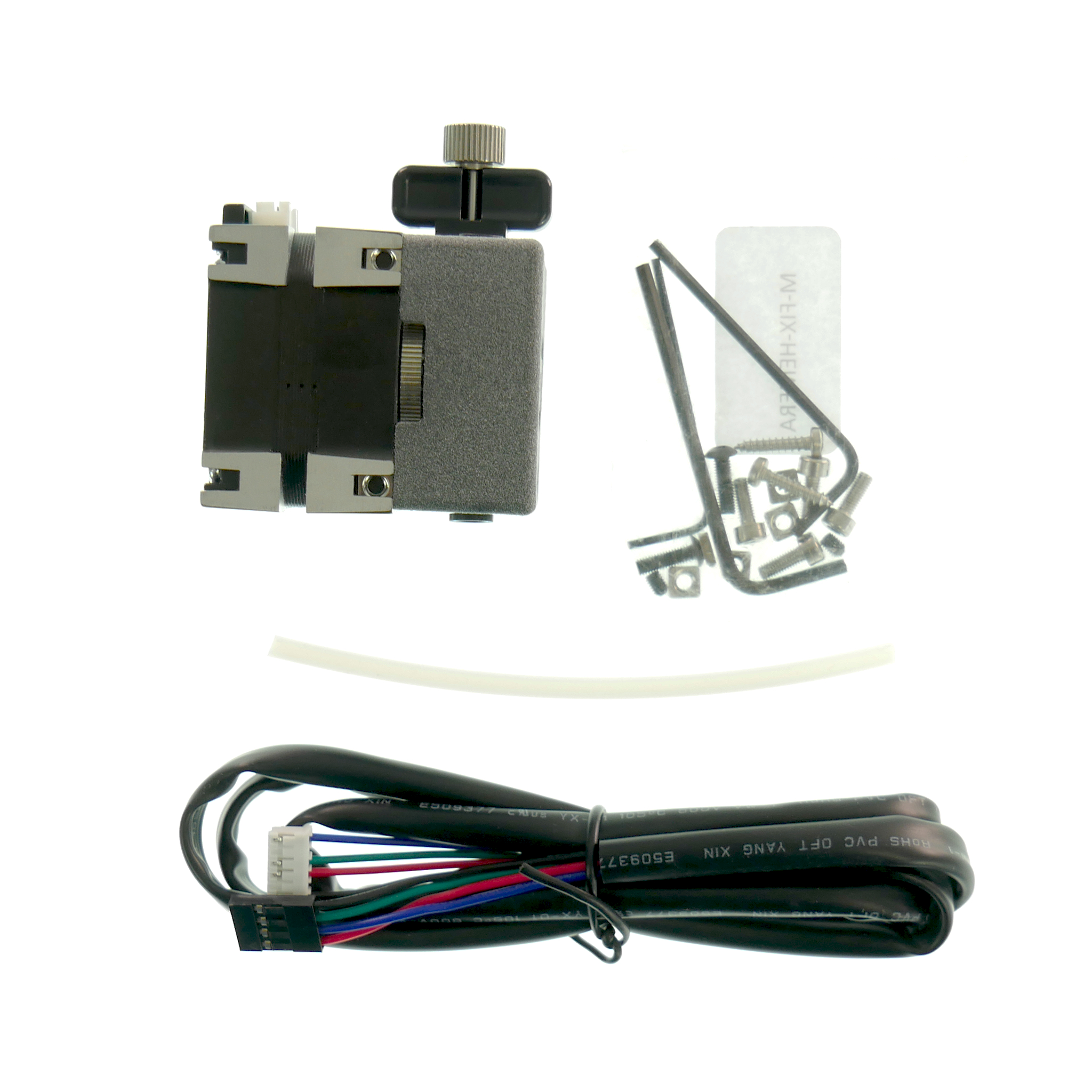

This kit includes 100mm of PTFE tube. If you require more, you can purchase some here.

Key features

- Filament diameter: 1.75mm

- Works with Revo HotEnds, and V6 ecosystem HotEnds

- T-slot flat mounting system

- Dimensions: 85.5 x 44 x 65.25mm (HxWxD)

- Recommended Current: 1.40A Peak (~0.99A RMS)

- Nominal steps per mm (x16): 397

- 1.8° step angle

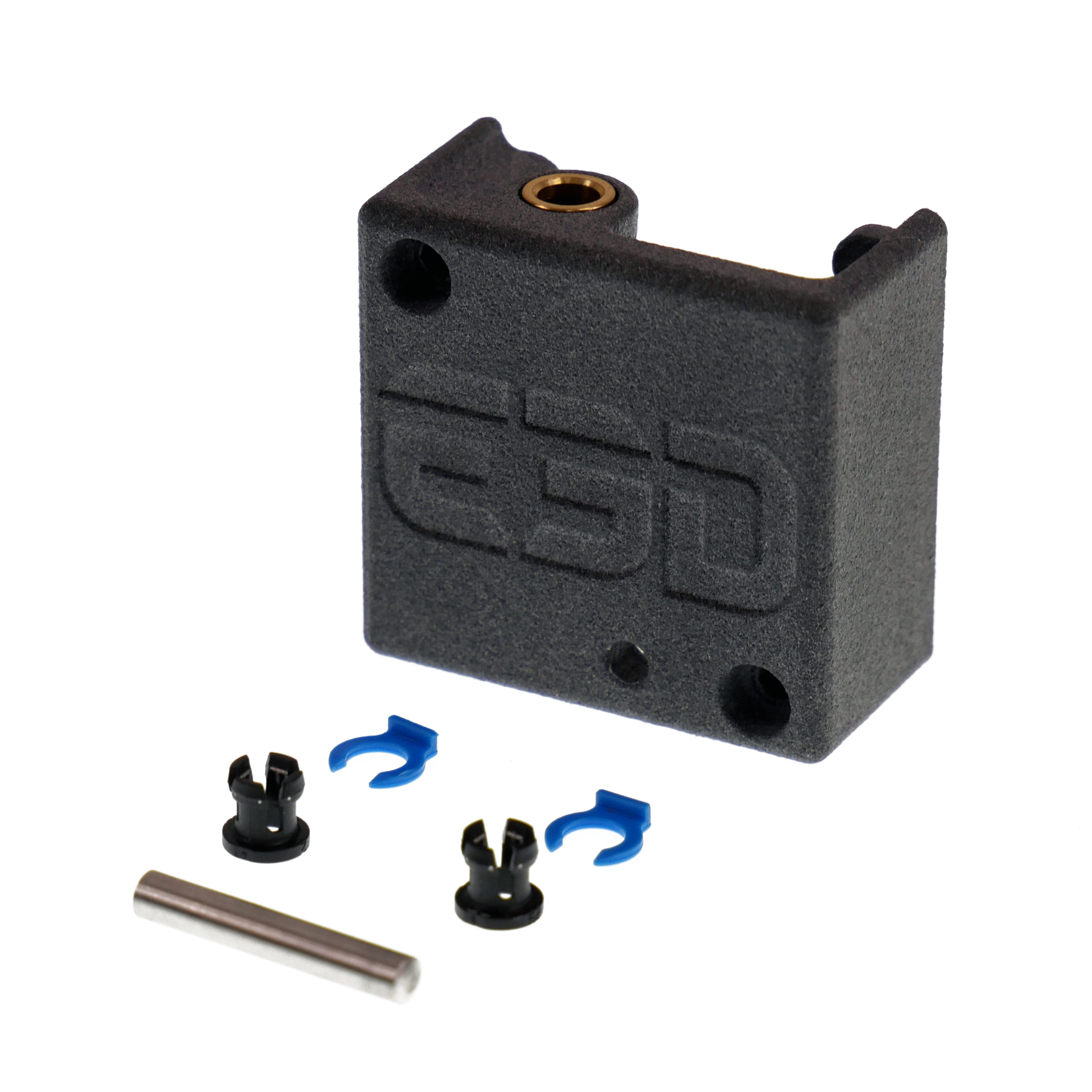

Hemera XS Bowden Cover Product Description

A replacement cover for your Hemera XS Bowden. Reduce the weight of your Hemera XS Bowden by 46g if you swap out the Hemera heatsink for this new cover.
