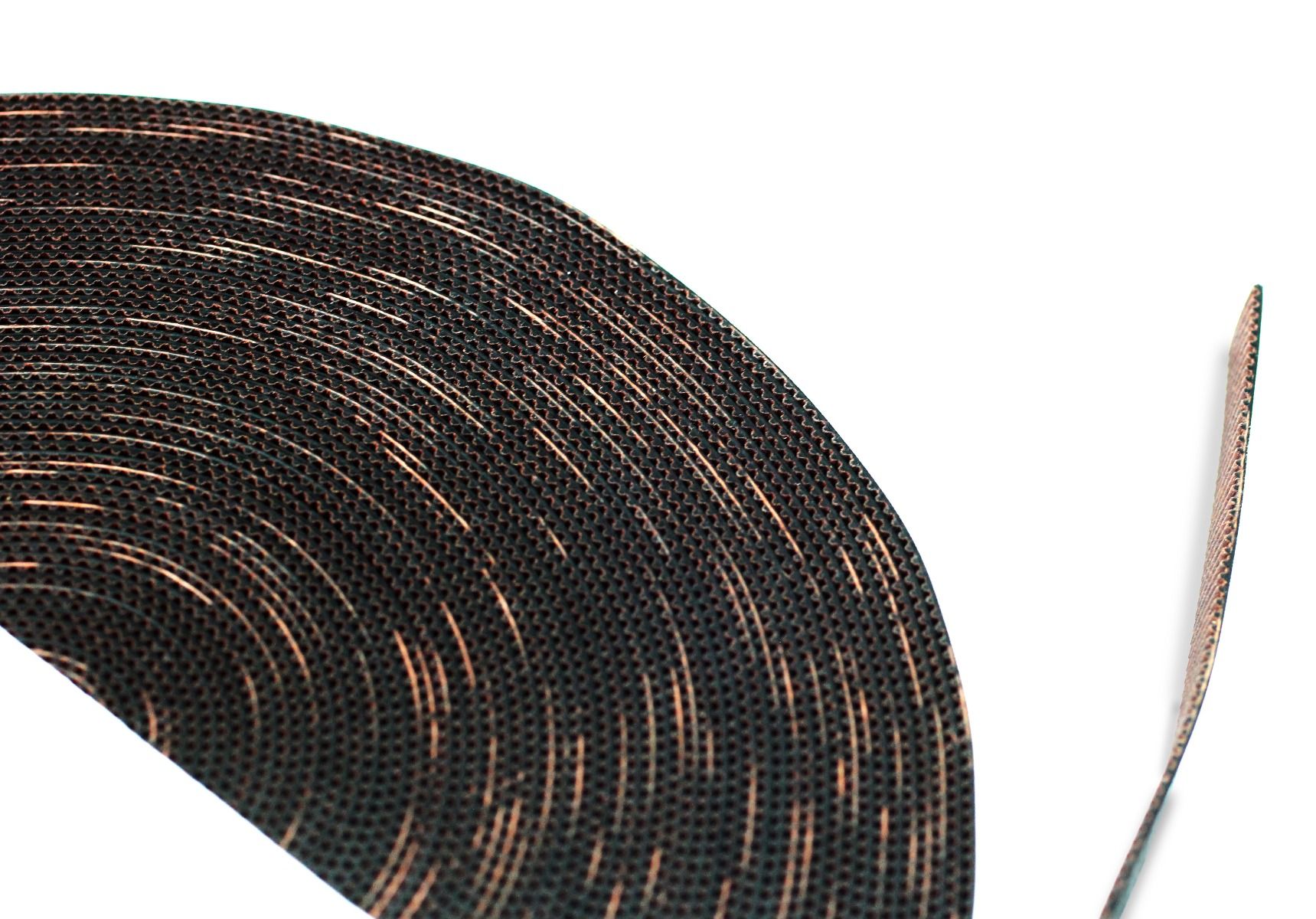

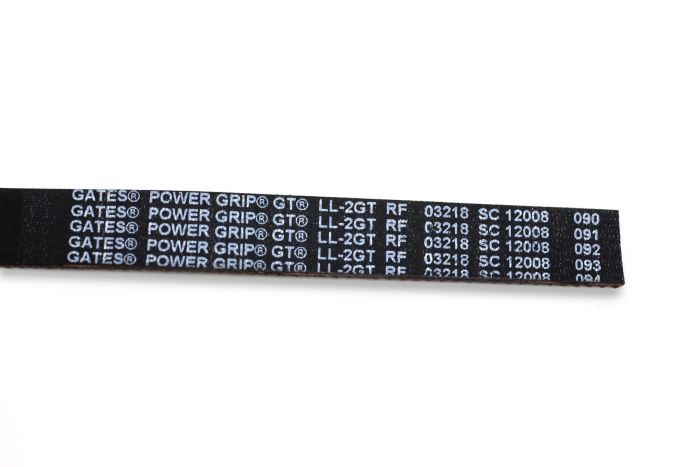

Gates Powergrip® *2GT* Belt 9mm x 100mm

1,16 € *
Inhalt: 0.1 Laufende(r) Meter (11,60 € * / 1 Laufende(r) Meter)

inkl. MwSt. zzgl. Versandkosten

Lieferzeit ca. 1-7 Werktage

  • gates-2gt-9mm
*2GT Gates belts are compatible with our full range of matching toothed pulley and idlers.... mehr
Produktinformationen "Gates Powergrip® *2GT* Belt 9mm x 100mm"

*2GT Gates belts are compatible with our full range of matching toothed pulley and idlers.

For over 100 years Gates Corporation has earned itself a reputation as a pioneer of power transmission and fluid power solutions, and amongst their high-quality range of products, Gates drive belts are considered second to none.

Gates Belts offer a standard that others just can’t match:

  • Made out of a fiberglass reinforced rubber which means it’s chemically resistant, harder wearing and doesn’t stretch whilst under stress

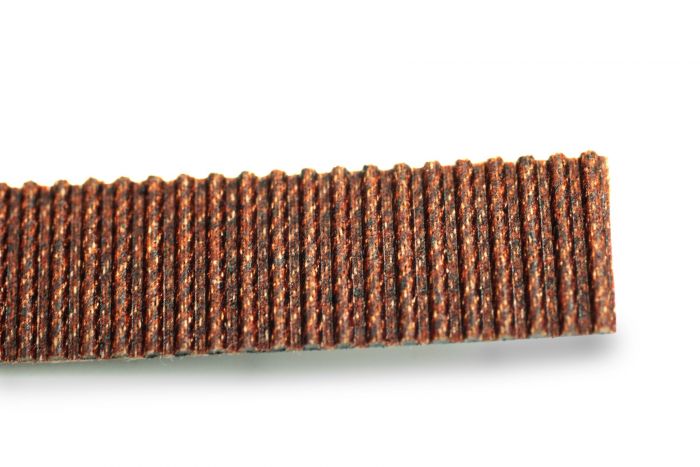

  • Imbued with a nylon fabric which coats the compound of the belt and acts as both a wear resistant surface (protecting the teeth) and provides a superior grip
  • A uniquely designed tooth profile distributes strain across the entire belt allowing the belt to handle greater loads
  • Has 25% higher power ratings than our previous Poly Chain GT2 belts
  • Quiet, compact, durable

Purchased by the 100mm and available in various widths

Product variations available for purchase



Product Title

Size

Internal Diameters

Pitch Circle Diameter

Belts

Gates 2GT Belt 6mm n/a n/a
  Gates 2GT Belt 9mm n/a n/a
  Gates 2GT Belt 12mm n/a n/a

Pulleys

Gates Pulley with 16 Teeth 6mm 5mm 10.19mm
  Gates Pulley with 18 Teeth 6mm 5mm 11.46mm
  Gates Pulley with 20 Teeth 6mm 5mm 12.73mm
  Gates Pulley with 20 Teeth 9mm 5mm 12.73mm
  Gates Pulley with 20 Teeth 12mm 5mm 12.73mm

Idlers

*all idlers are 20-tooth equivalent
Gates Toothed Idler 6mm 5mm 12.73mm
  Gates Toothed Idler 9mm 5mm 12.73mm
  Gates Toothed Idler 12mm 5mm 12.73mm
  Gates Smoothed Idler 6mm 5mm 12.73mm
  Gates Smoothed Idler 9mm 5mm 12.73mm
  Gates Smoothed Idler 12mm 5mm 12.73mm
