Compatible With Multiple Models
This extruder upgrade kit for the Creality CR-10, CR-10S, Ender3, Tevo Tornado and other printers that uses the same type of mounting plate will replace the original feeder.
Dual Drive Extruder
It allows for a more reliable printing with all sorts of filaments, both stiff and flexibles and the DualDrive system ensures that the extruder never loses grip of the filament so grinding, slipping is a thing of the past.
The bowden tube is securely held in place by the 4mm industry standard integrated push-fit connector.
Improved Performance

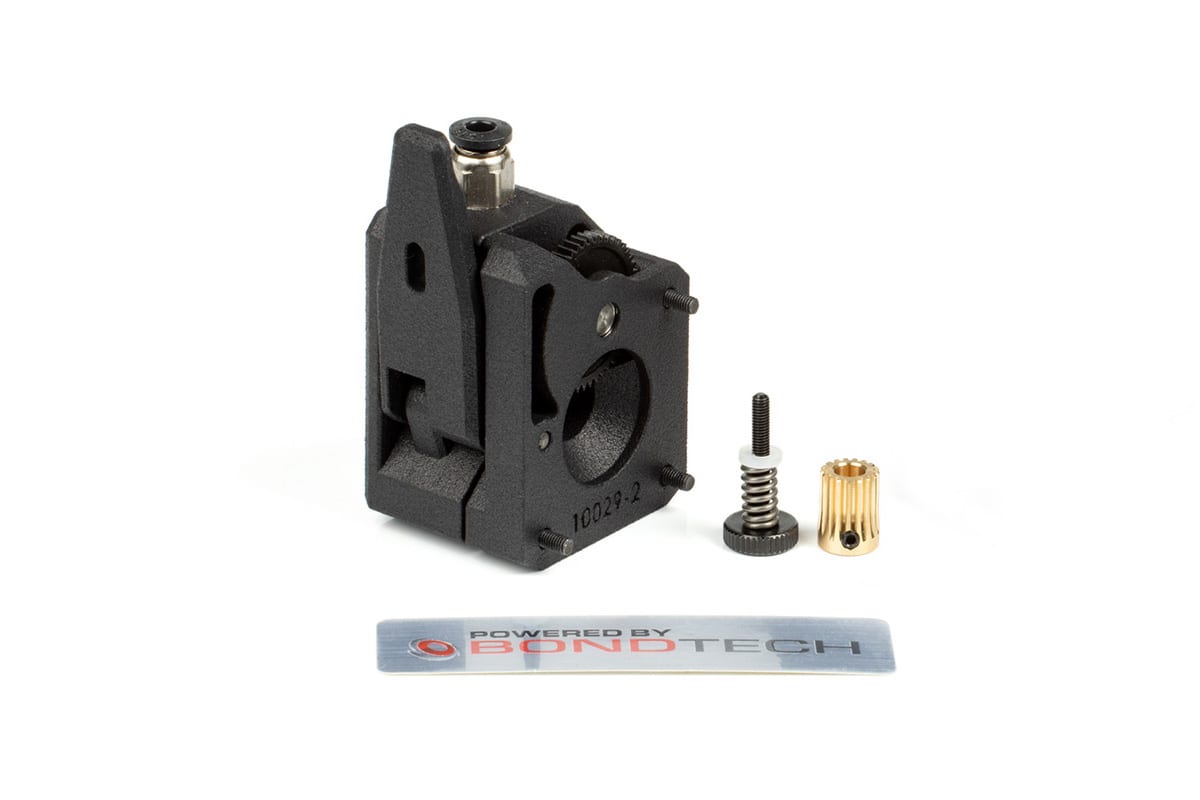

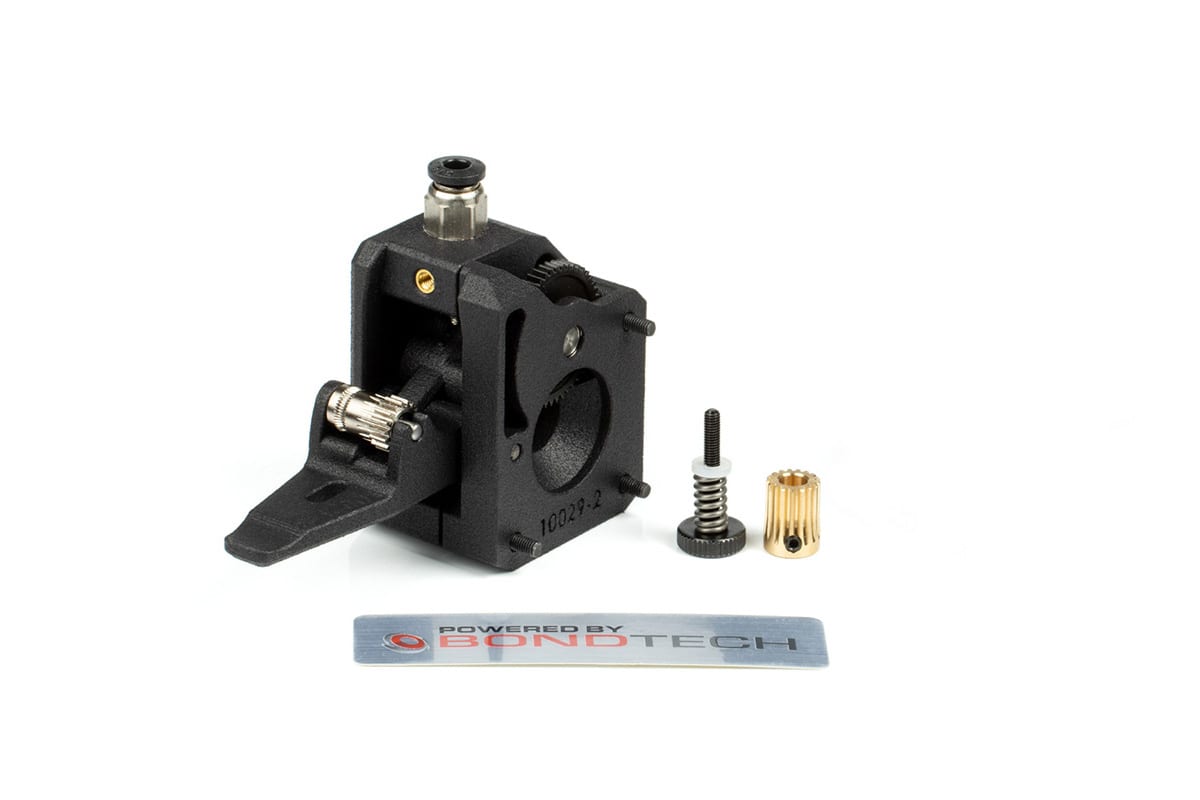

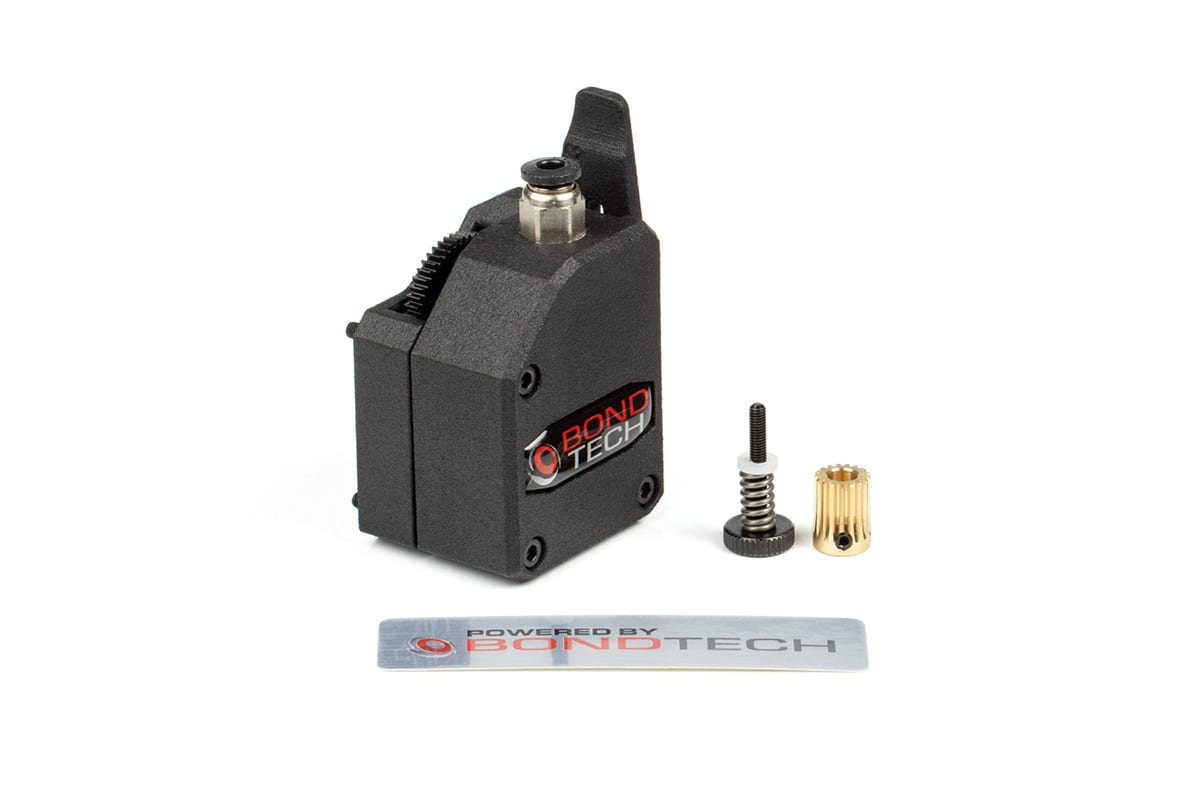

This kit includes the BMG (Bondtech Mini Geared) Extruder, a high-performance material feeding system with the ability to print faster and with improved quality. The adjustable thumbscrew allows you to fine-tune the force acting on the filament.
The housing parts are professionally SLS printed in polyamide for maximum strength and precision.
Many Versions Available
This kit comes in 2 versions. With Mount or Without Mount.
There is an additional version – with mount for a filament sensor – that is compatible with the CR-10S (equipped with filament sensor).
Update The Firmware Before Use
E-steps needs to be updated to 415 and the rotation direction of the motor needs to be reversed, please see the installation guide of how to do it that you will find under the tab “STEP BY STEP GUIDE”.
This kit contains no stepper motor, the original stepper motor of the 3D printer is used.
– Step By Step Guide –
