Bondtech DDX For Creality Ender/CR-10(S)

Compatible with the following models:

• Ender-3 and Ender-3 v2;
• Ender-3 Pro;
• Ender-5;
• Ender-5 Pro;
• Ender-5 Plus^*1;
• CR-10 (Mini);
• CR-10S;
• CR-10 S4;
• CR-10 S5.

Multiple Hotends Compatibility

This model was created to be compatible with the original hotend of each Creality model. Users may also upgrade the hotend to Copperhead™ or Mosquito™.

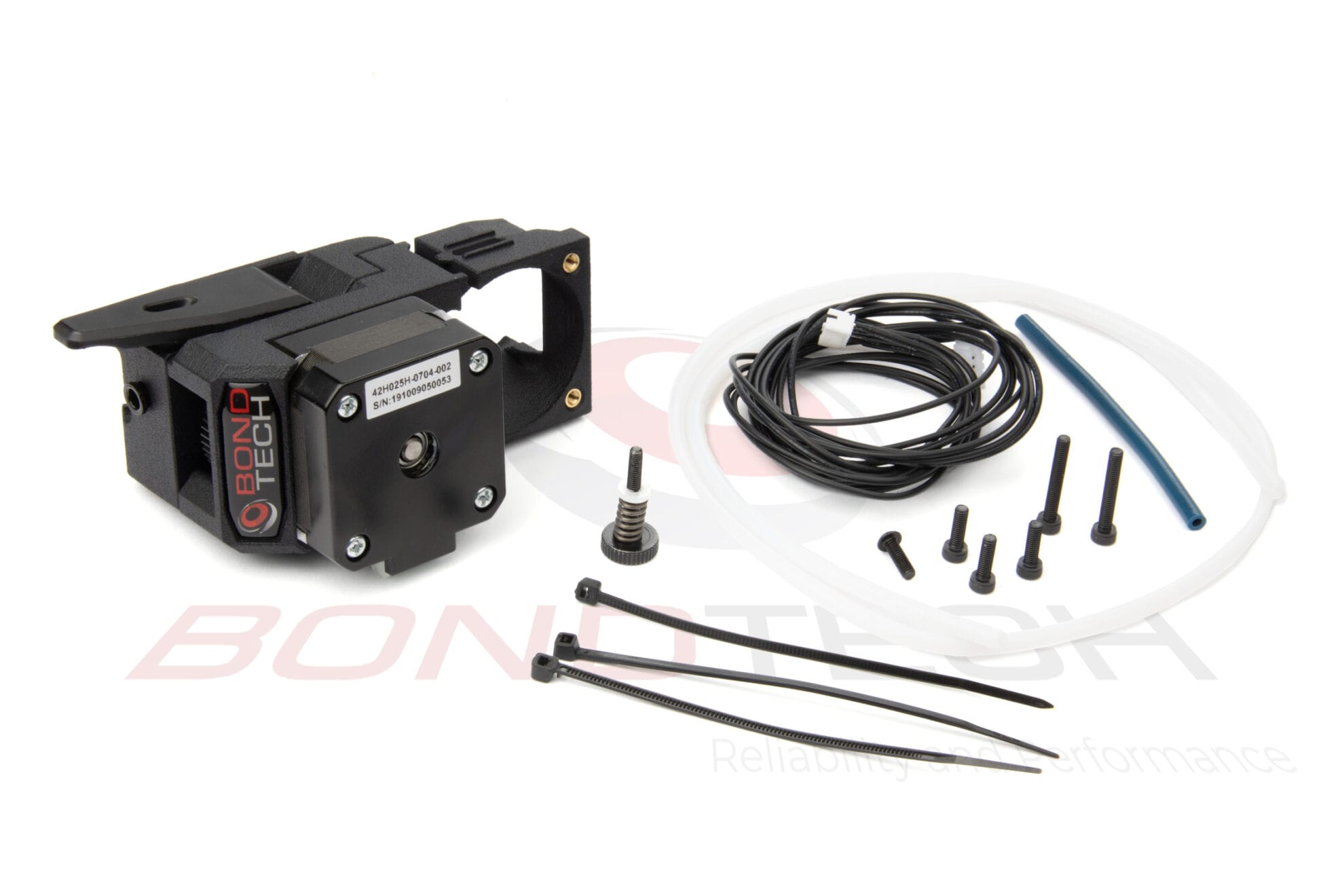

Product includes:

• 1x DDX Extruder
• 1x Nema17 Pancake stepper motor
• 1x Thumbscrew Assembly
• 1x 70cm Stepper motor extension cable
• 1x 60cm PTFE tube
• 1x 7cm Capricorn tube
• 4x Zip-ties
• 3x M3x12mm screw
• 2x M3x20mm screw
• 1x M3x10mm button head screw

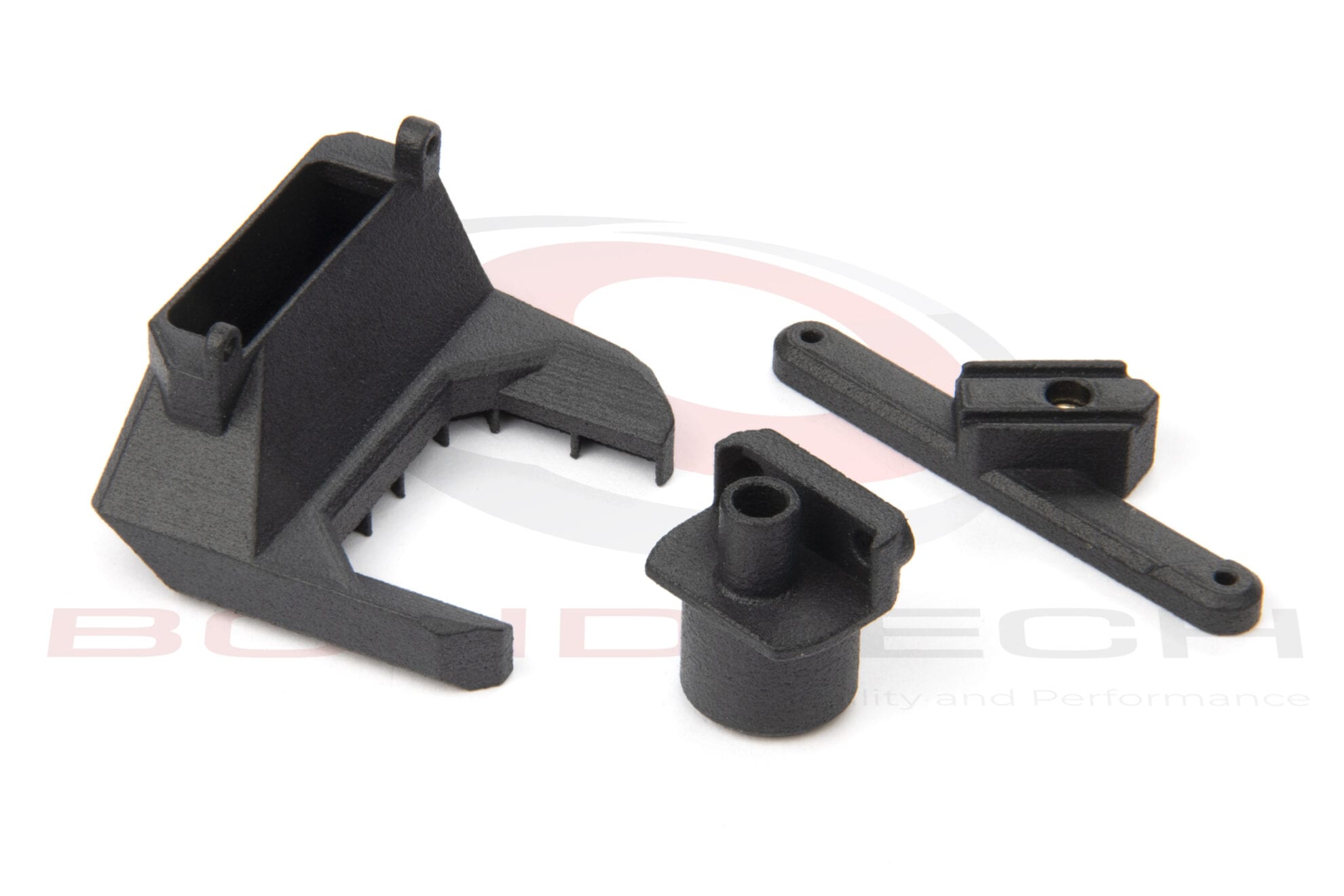

• 1x 10079-32 SLS Fan Shroud
• 1x SLS Ender Hotend Adapter
• 1x 10079-31 SLS Fan Holder

Using a bed probe with DDX

The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no space to attach a bed probe like the BLtouch, to the X-carriage, a mount can printed and attached to the right hand side of the DDX.

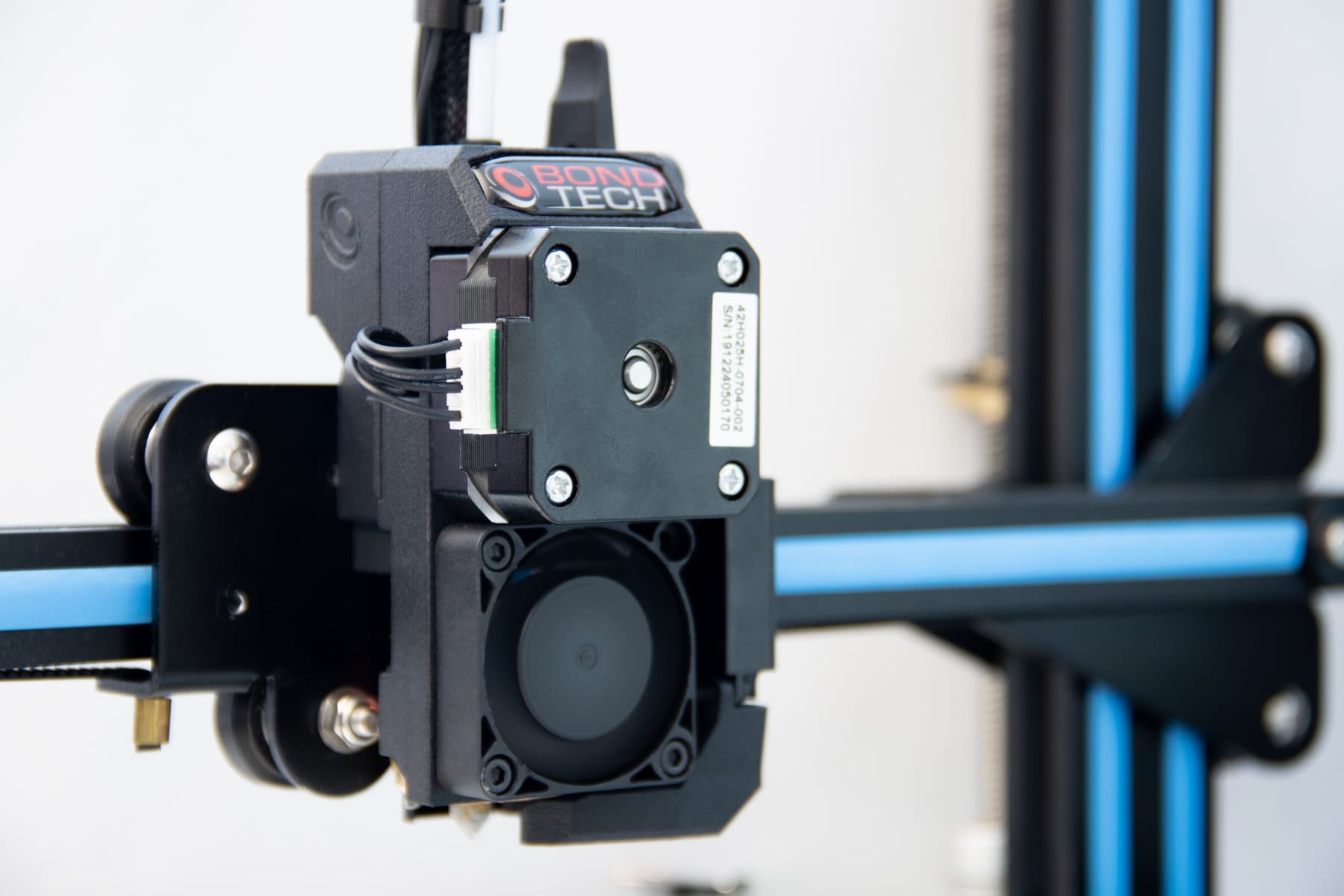

Bondtech DDX Direct Drive eXtruder

This Direct Drive eXtruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG. Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading hotends Copperhead™ or Mosquito™ from SliceEngineering, gives you a direct drive extruder with trouble free material feeding and enables the use of a wider range of materials. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using industrial grade SLS technology.

Make your 3D printer even better

Bondtech DDX Direct Drive eXtruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX housing design provides an effective Hot-End cooling.  With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.

Easy To Setup

For ease of setup the kit is attached to the carriage with only 2 screws.

^*1 Using DDX on Ender-5 Plus

On the Ender-5 Plus, the DDX fan shroud will collide with the right hand rail if nothing is changed on the unit. To fix that problem we sell the SLS DDX Bed Rod Holder Set for Ender-5 Plus and supply as alternative the STL file of the new Z-rod holder that can solve this issue. Download the file from the list here.

When upgrading your Creality with DDX

Know more about the different ways to upgrade your Creality with DDX here:
The 4 Phases of Bondtech DDX for Creality
