Bondtech DDX v3 For Creality Ender/CR-10(S)

140,00 € *
Inhalt: 1 Stück

inkl. MwSt.

Versandkostenfreie Lieferung innerhalb Deutschlands!

Lieferzeit ca. 1-7 Werktage

  • EXT-KIT-77-01-V3
  • 7350011414123
Multiple Hotends Compatibility This model was created to be compatible with the original... mehr
Produktinformationen "Bondtech DDX v3 For Creality Ender/CR-10(S)"

Multiple Hotends Compatibility

This model was created to be compatible with the original hotend of each Creality model. Users may also upgrade the hotend to Copperhead™ or Mosquito™.

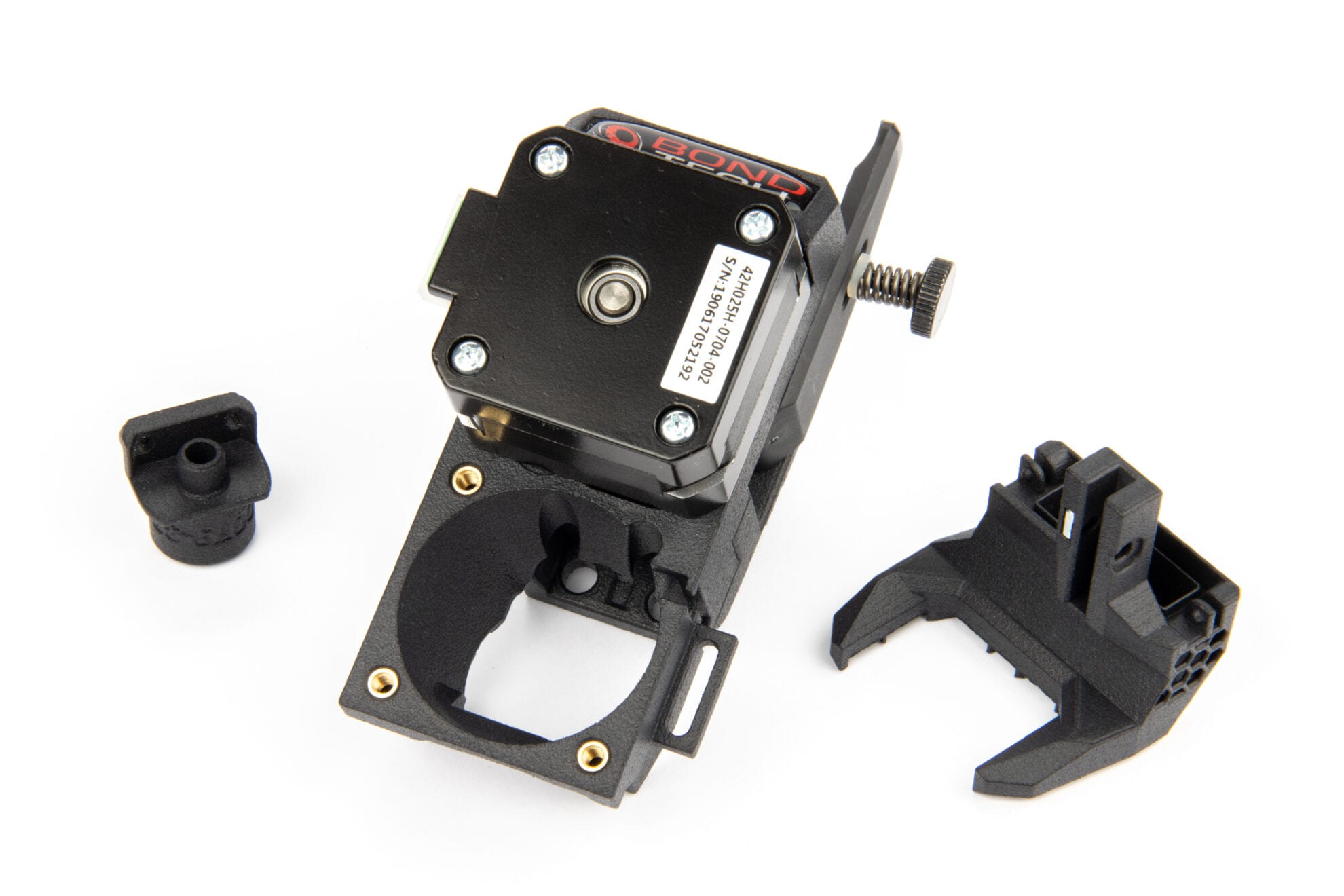

The DDX v3 is much easier to install

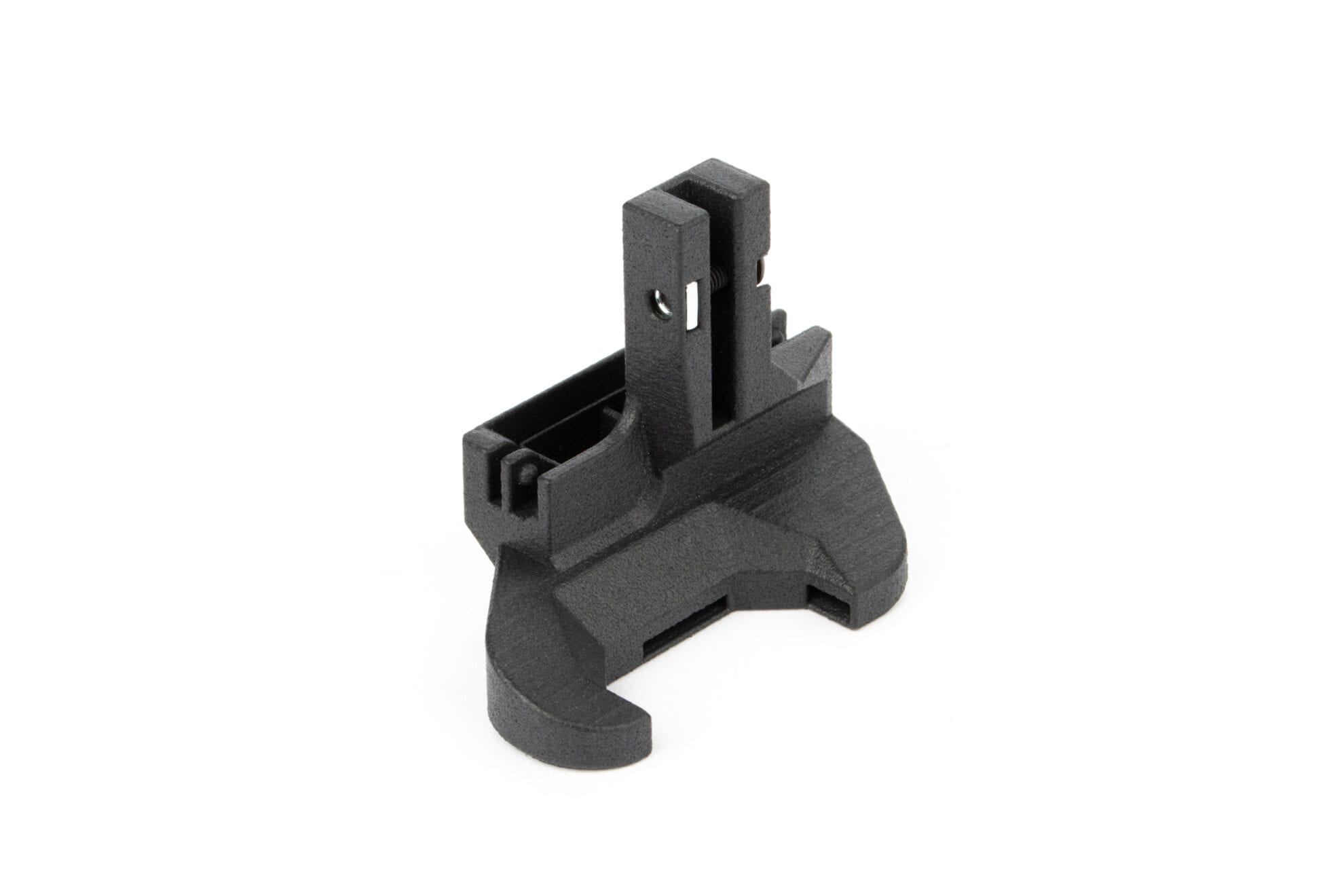

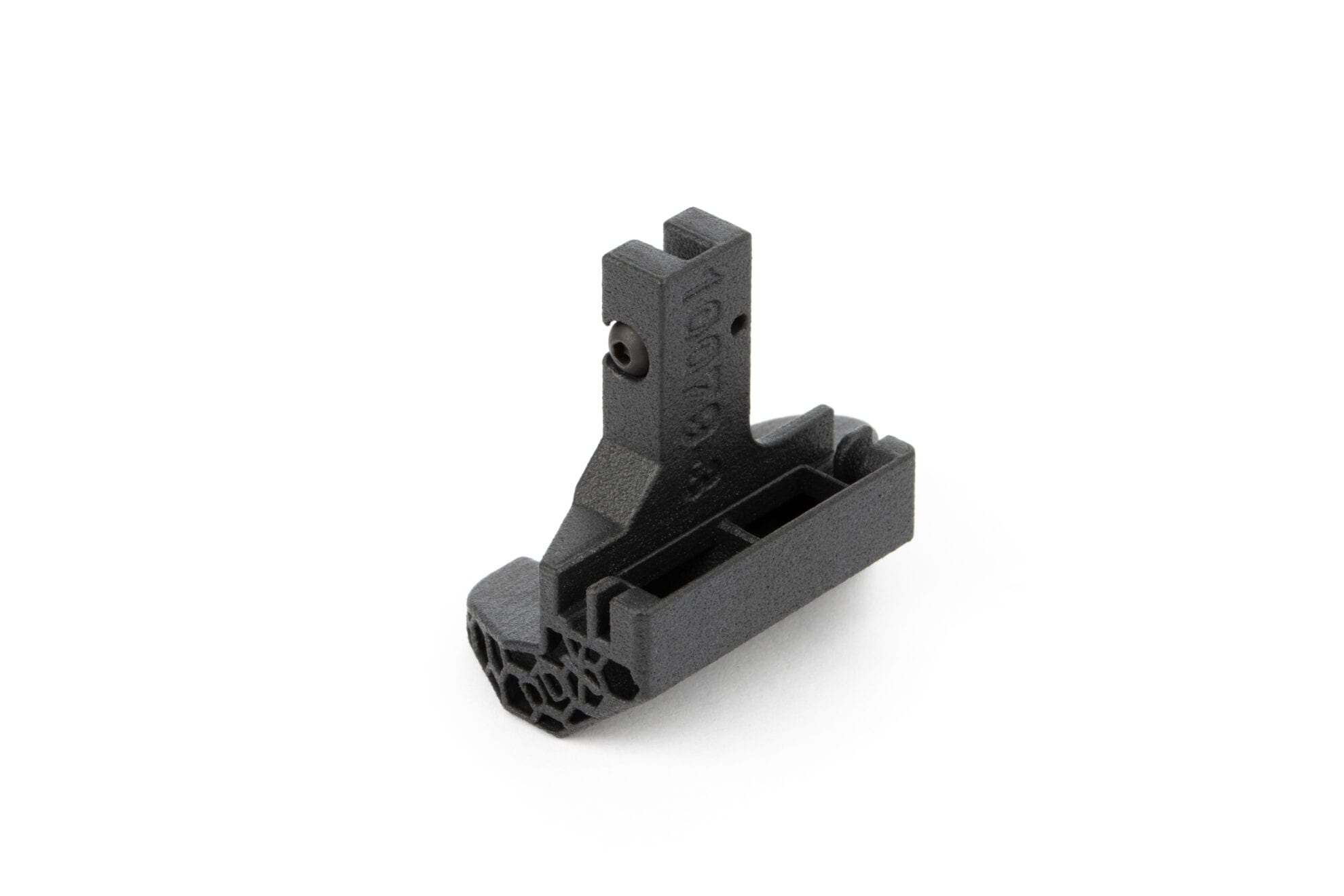

With this integrated fan shroud and mount the DDX v3 is even easier to install.
Snap the fan to the shroud without using screws.
Adjust the height of the shroud with one front access screw.

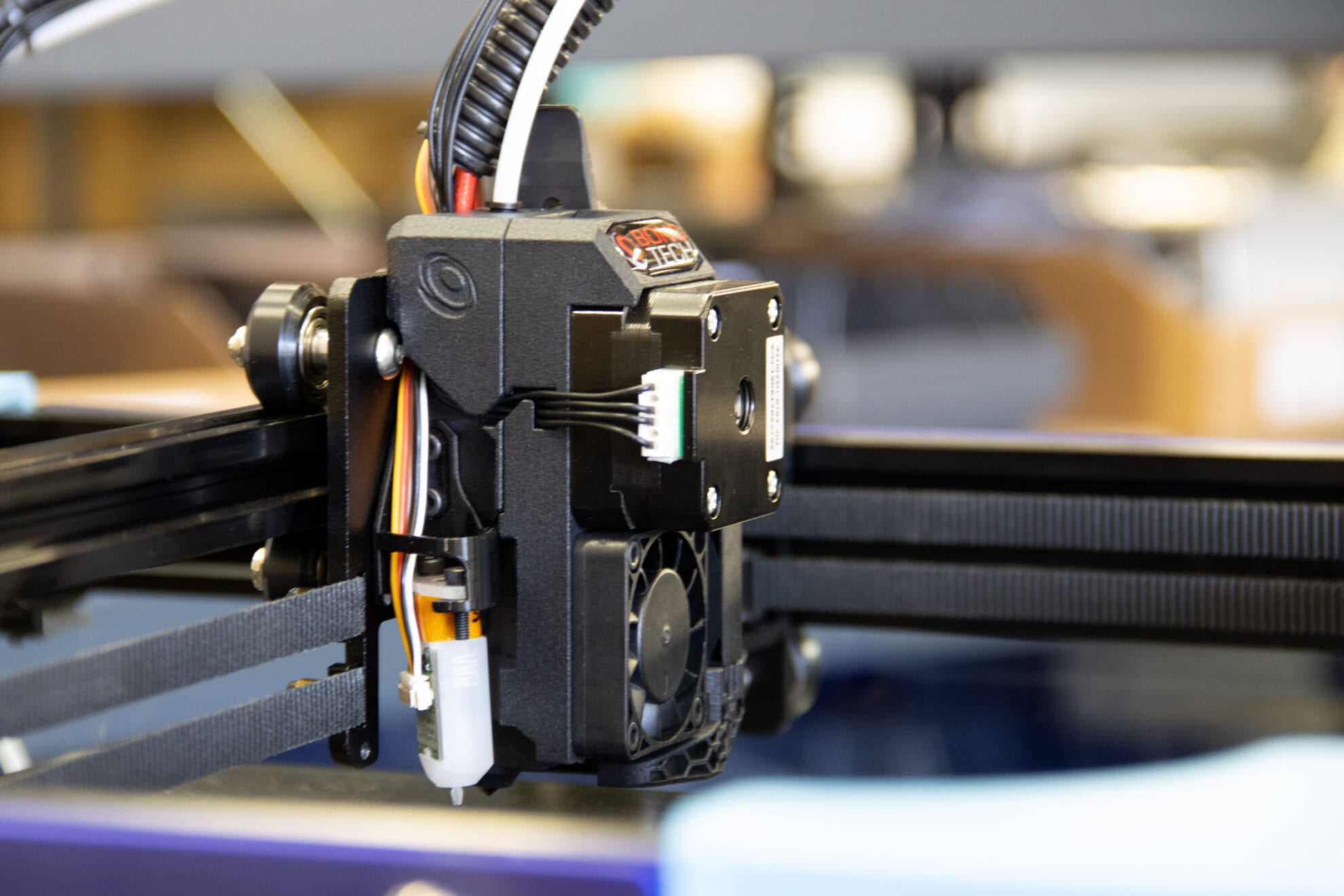

Using a bed probe with DDX

The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no space to attach a bed probe like the BLtouch, to the X-carriage, a mount can printed and attached to the right hand side of the DDX.

Bondtech DDX Direct Drive eXtruder

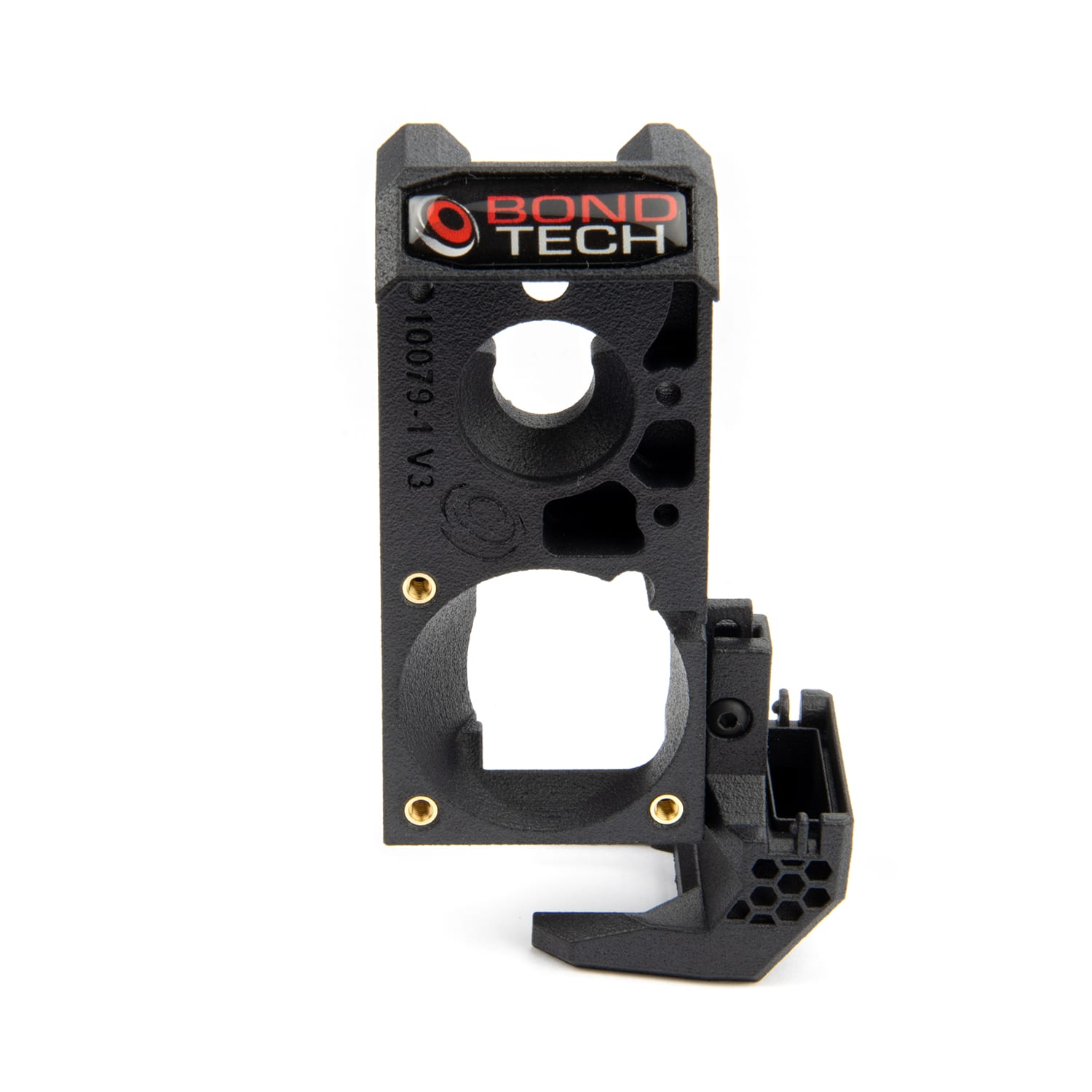

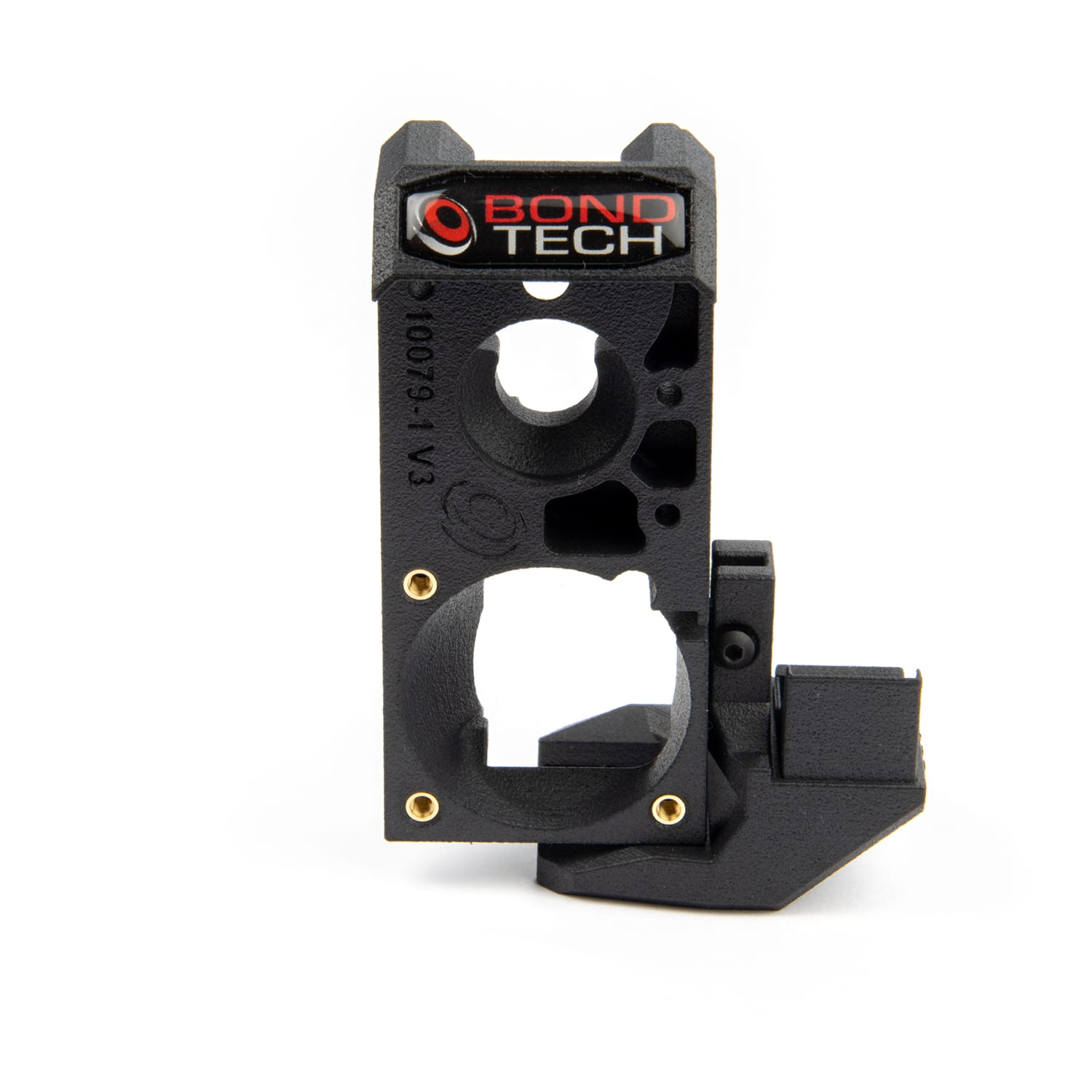

This Direct Drive eXtruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG. Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading hotends Copperhead™ or Mosquito™ from Slice Engineering, gives you a direct drive extruder with trouble free material feeding and enables the use of a wider range of materials. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using industrial grade SLS technology.

Make your 3D printer even better

Bondtech DDX Direct Drive eXtruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX housing design provides an effective Hot-End cooling.  With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.

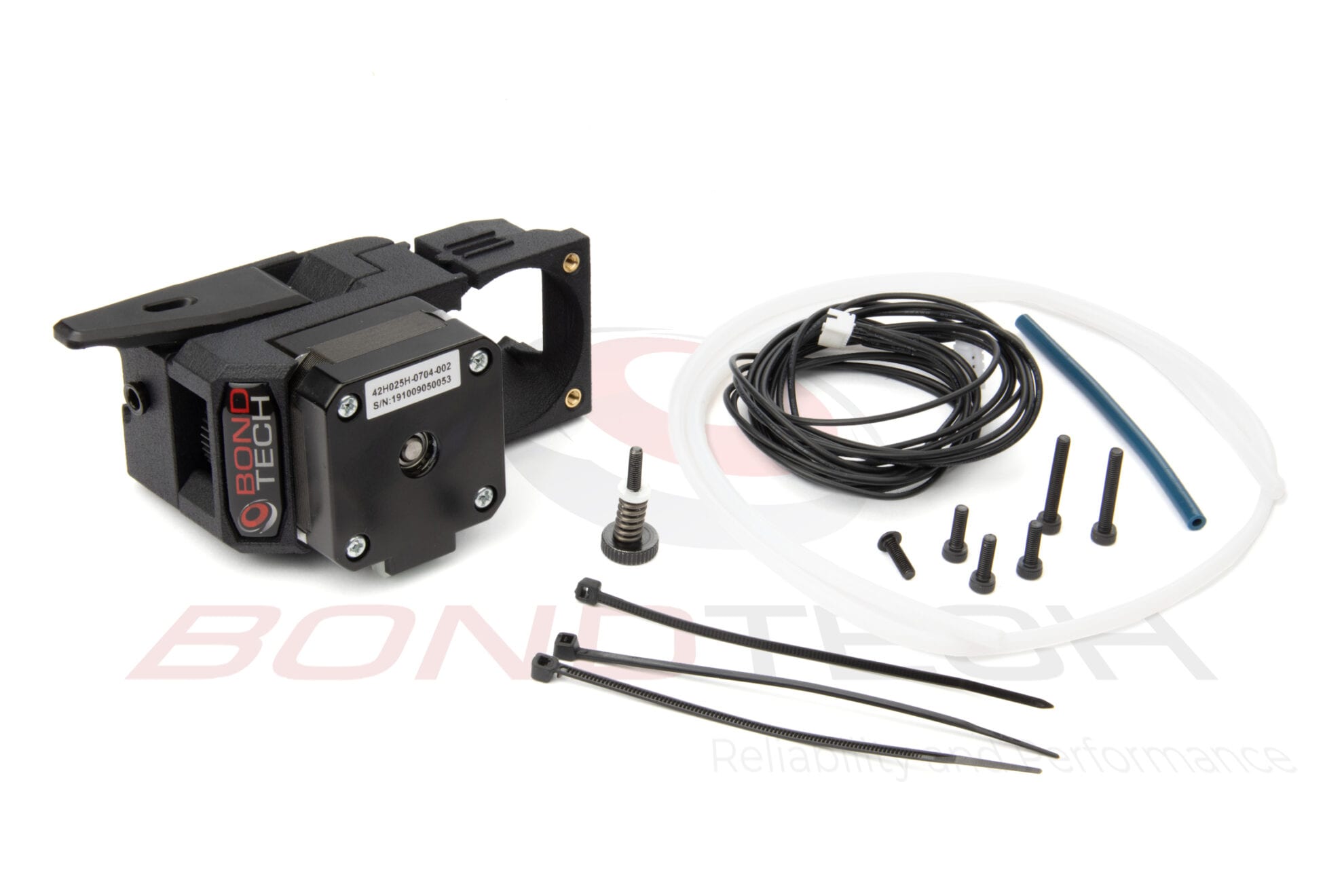

Product includes:

  • 1x DDX v3 Extruder
  • 1x Nema17 Pancake stepper motor
  • 1x Thumbscrew Assembly
  • 1x 70cm Stepper motor extension cable
  • 1x 60cm PTFE tube
  • 1x 7cm Capricorn tube
  • 4x Zip-ties
  • 3x M3x12mm screw
  • 2x M3x20mm screw
  • 1x M3 square nut
  • 1x M3x10mm button head screw
  • 1x 10079-3 PA12 Fan Shroud

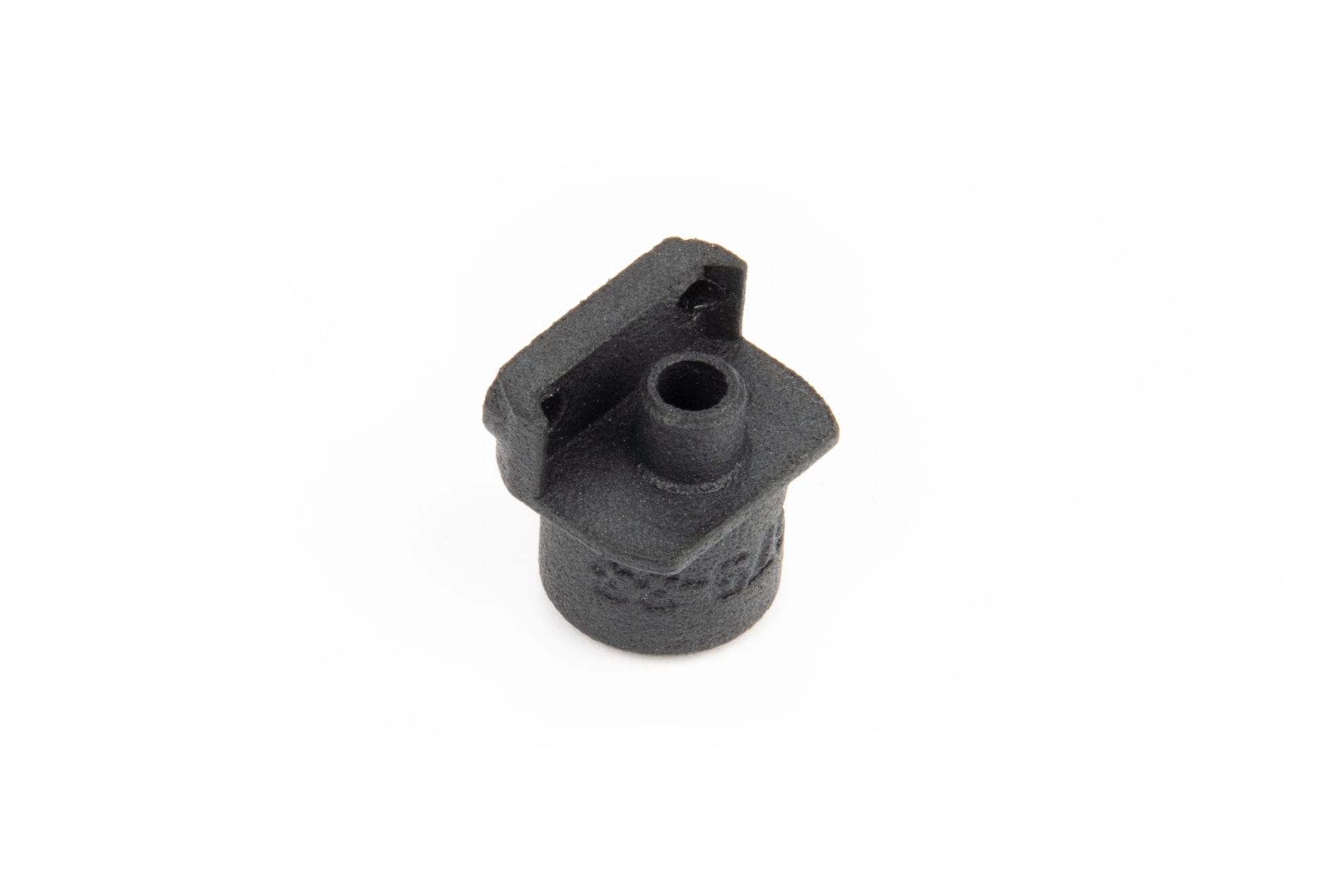

  • 1x SLS Ender Hotend Adapter


When upgrading your Creality with DDX

Know more about the different ways to upgrade your Creality with DDX here:
The 4 Phases of Bondtech DDX for Creality





DDX v3 on Ender-6

To use the DDX v3 on the Ender-6 please mind the following:

  • The BL Touch mounts we sell are not compatible with the the Ender-6. We redesigned the mount and the STL model is available to download here.

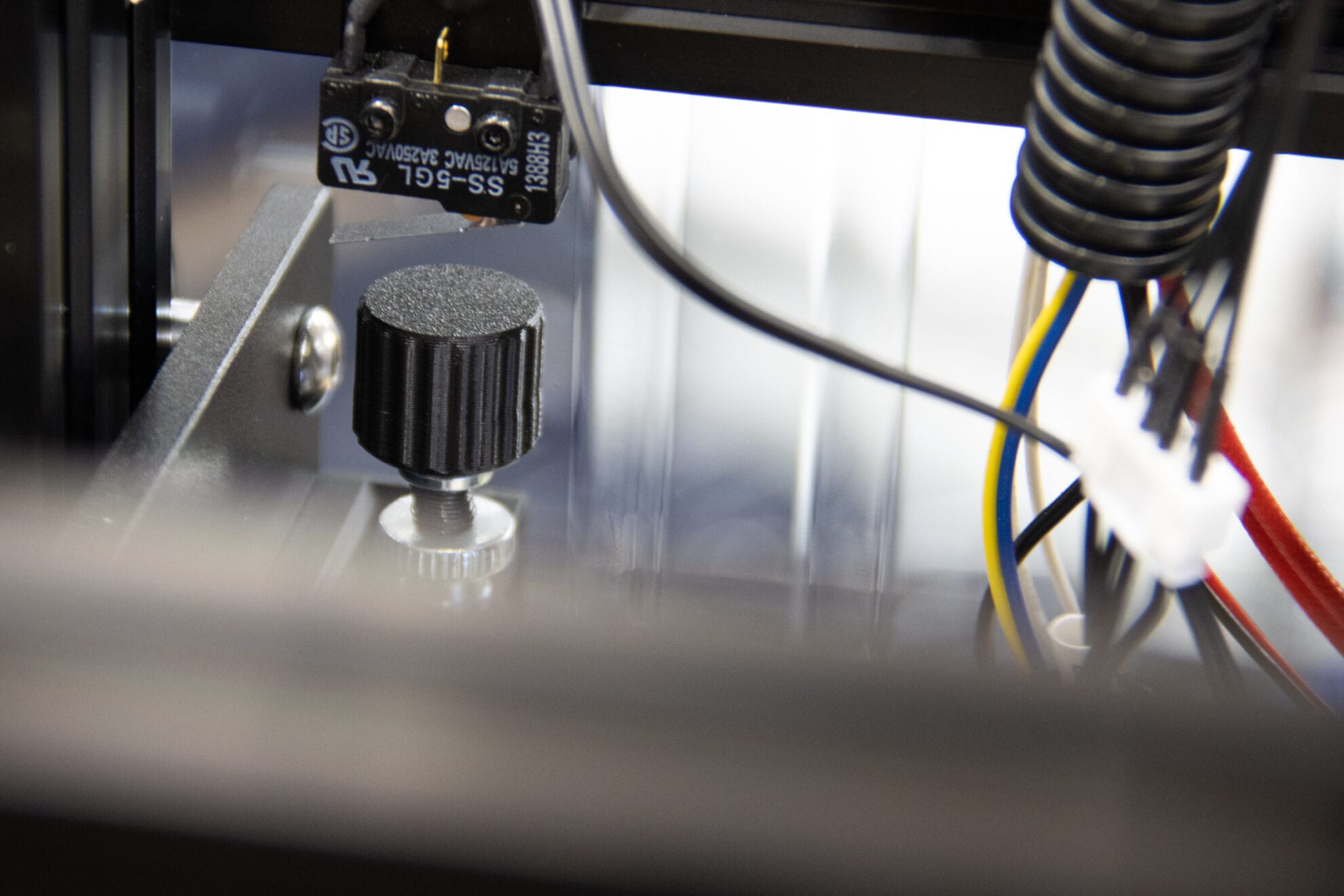

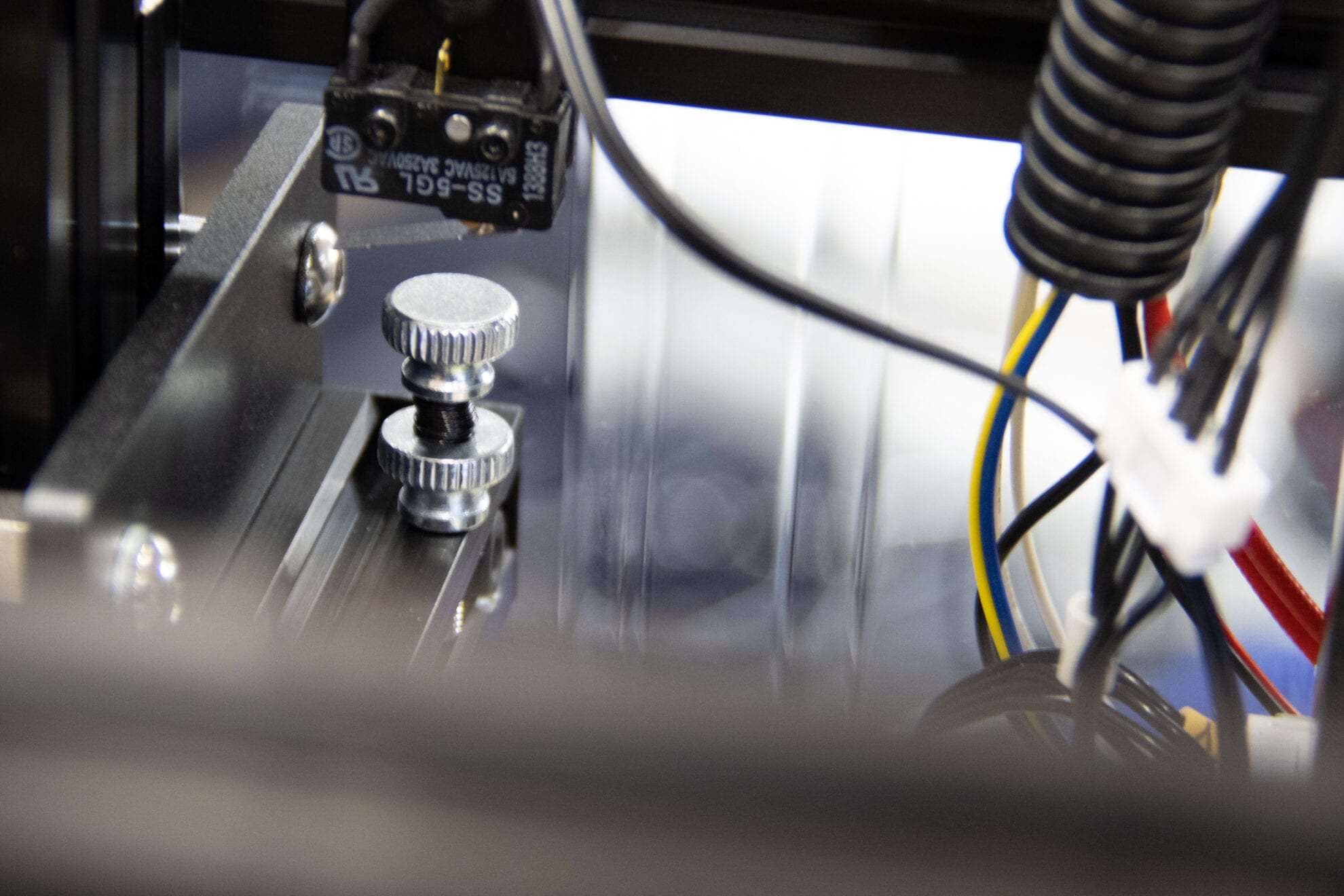

  • When using the DDX v3 and a Copperhead hotend on the Ender-6, it is necessary to adjust the height of the Z-stop screw. We designed a Z-stop Screw Adjuster and the STL model is available to download here.



Easy To Setup

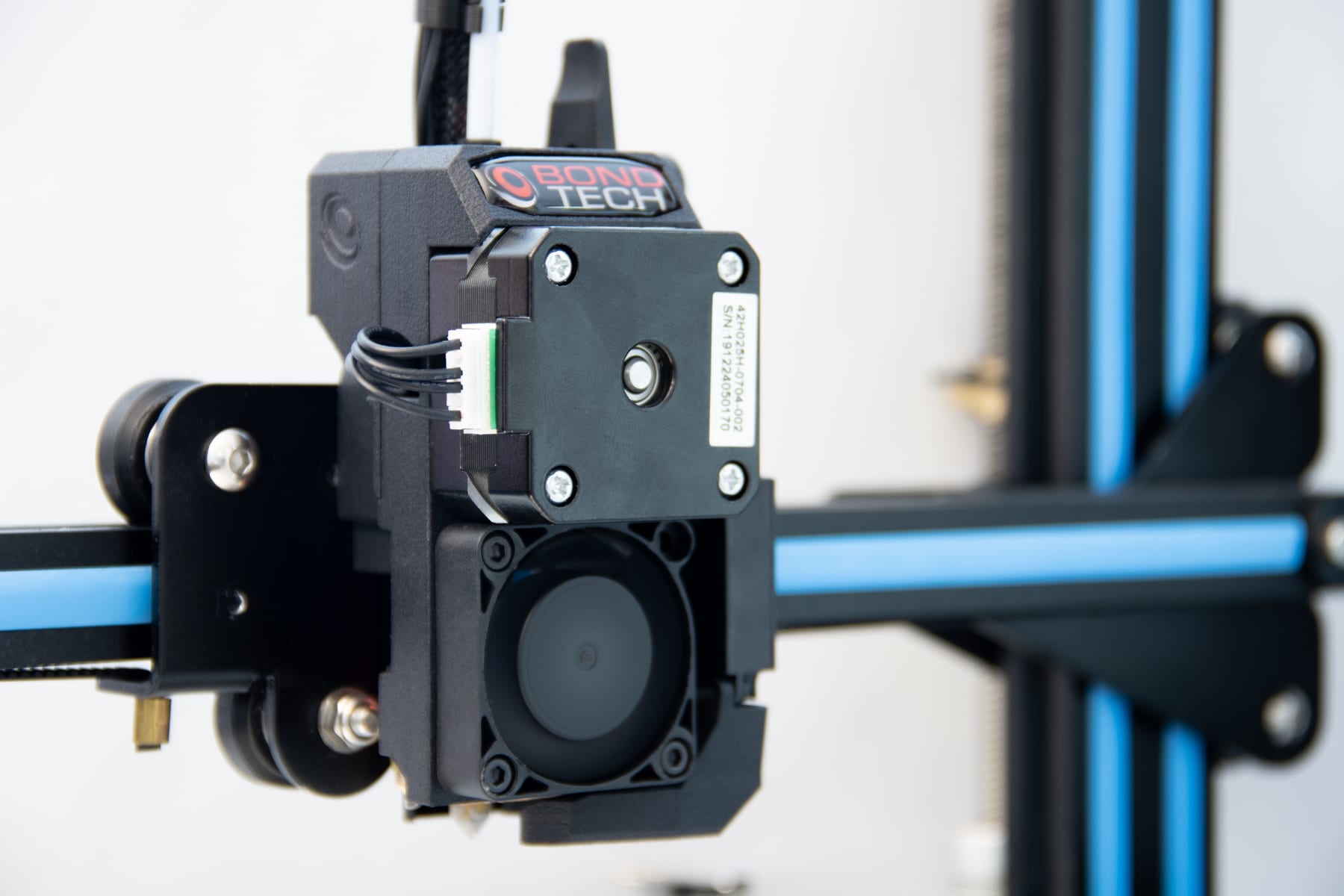

For ease of setup the kit is attached to the carriage with only 2 screws.
