All Metal Hotend with SLOTTED Cooling Block for Duplicator 6

This is Micro Swiss All Metal Hotend kit for Wanhao Duplicator 6 with the following improvements:

• Slotted Clamping system
• No set screw to ding and damage thermal tube
• Significantly better heat transfer (this is a big one!!!)
• Easier disassemble and adjustments
• Precise control on bore diameter

 Fits:

• WANHAO Duplicator 6
• Monoprice Maker Ultimate 3D Printer

Micro Swiss All Metal Hotend Kit Features:

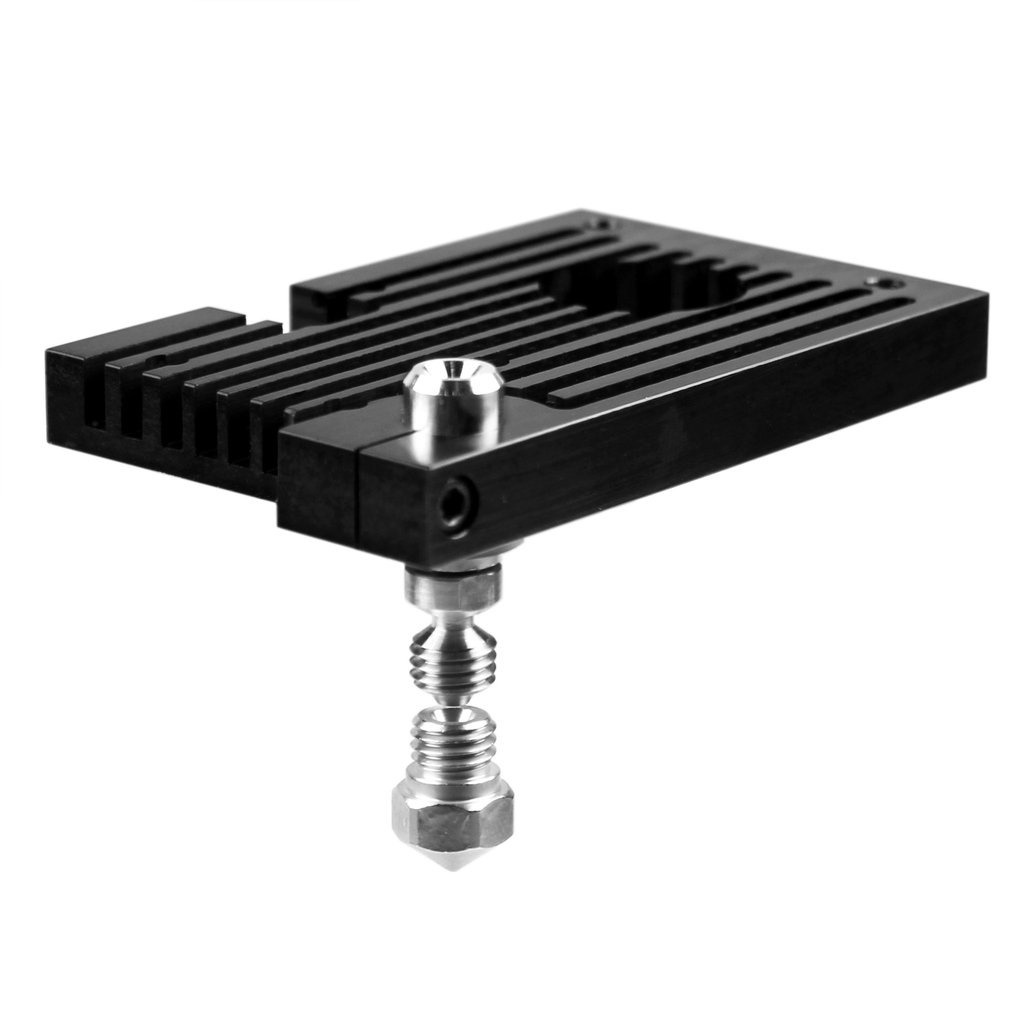

This upgrade includes a modified thermal barrier tube and modified nozzle with modified cooling block. Thermal barrier tube is made from 2 different materials. The lower thermal break is made from stainless steel, and the colder upper part is made from aluminum. Stainless steel was used for thermal break because it offers low thermal conductivity, and aluminum was used for the upper portion because it has a lot better thermal conductivity, to carry away any heat from the filament. All metal hotend will let you print at much higher temperature then possible with original PTFE lined one. Another benefit of an all metal hotend design is more consistent melt chamber control. During slow extrusion rate, in PTFE lined hotend, transition zone from solid to molten plastic tends to creep upward creating more stringy prints. With all metal design a transition zone is always constant, being located right at the heat break. With fast extrusion rate, PTFE tube doesn't have enough thermal conductivity to properly melt all the plastic coming out. On original extruders that limitation happens around 60 mm/s, depending on nozzle size. All metal hotend solves this problem, plastic is surrounded by thermally conductive nozzle throughout its length.

Orifice size available: .2mm, .3mm, .4mm, .5mm, .6mm, .8mm, 1mm, 1.2mm

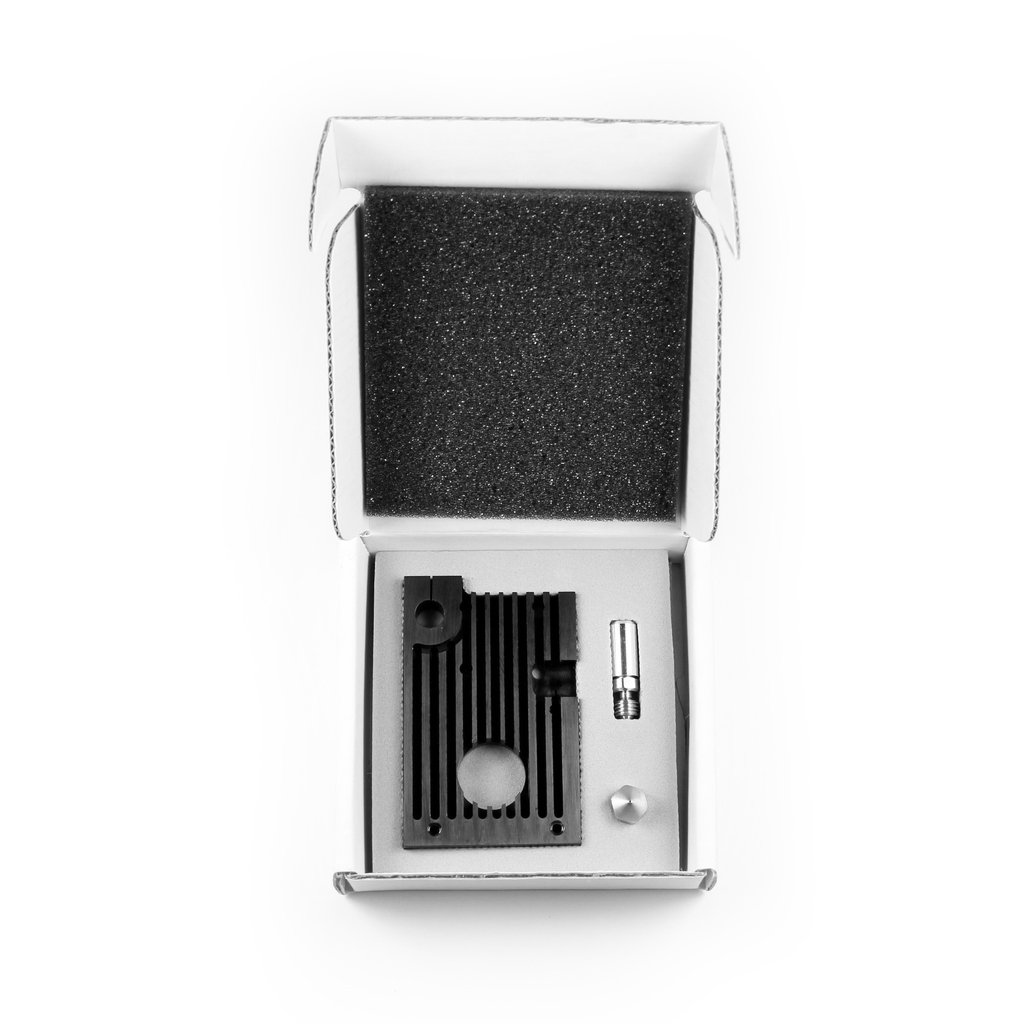

Kit includes

• 1 Plated Brass Wear Resistant Nozzle
• 1 Thermal tube
• 1 Slotted Cooling block

Installation Instructions
