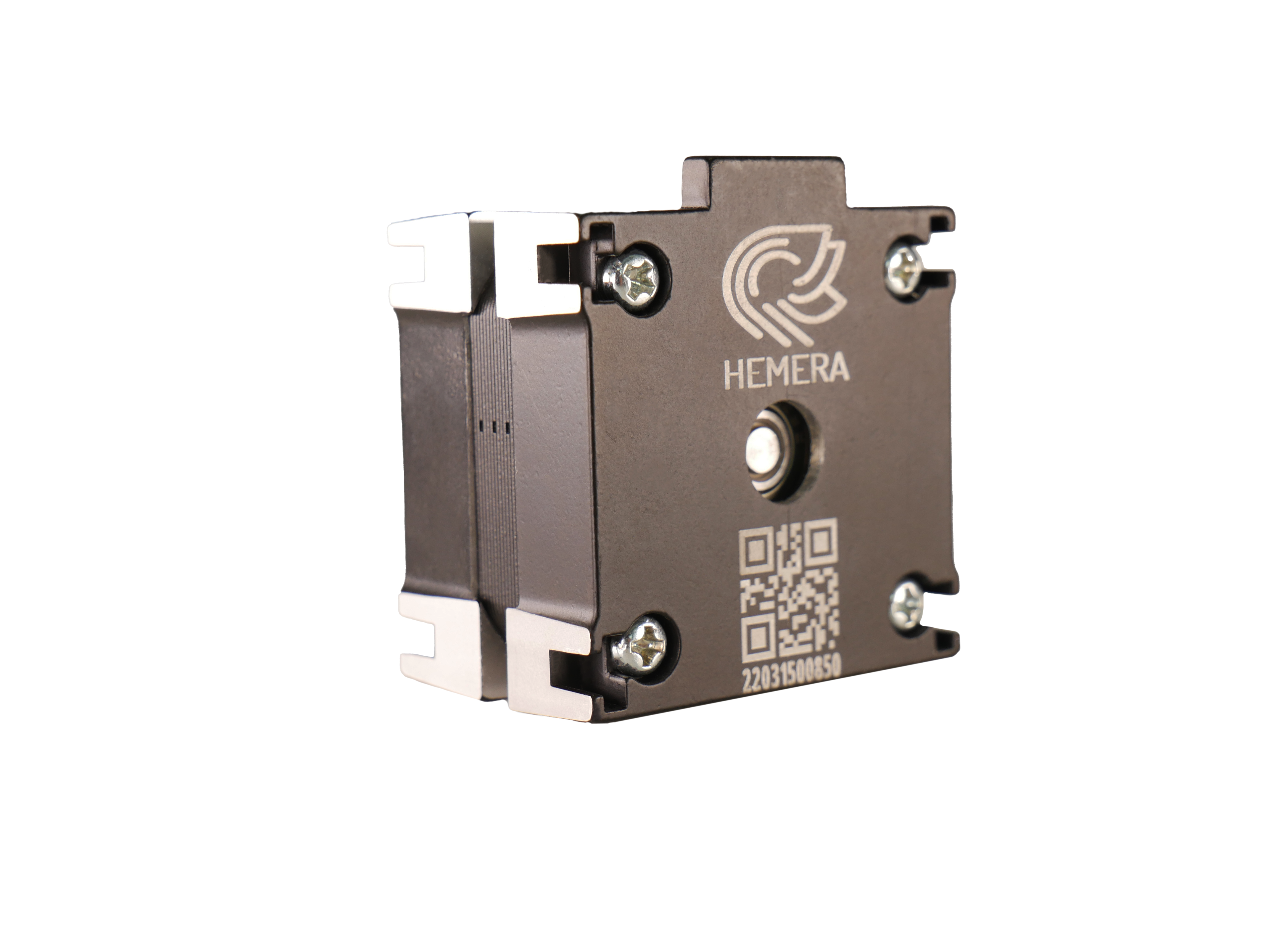

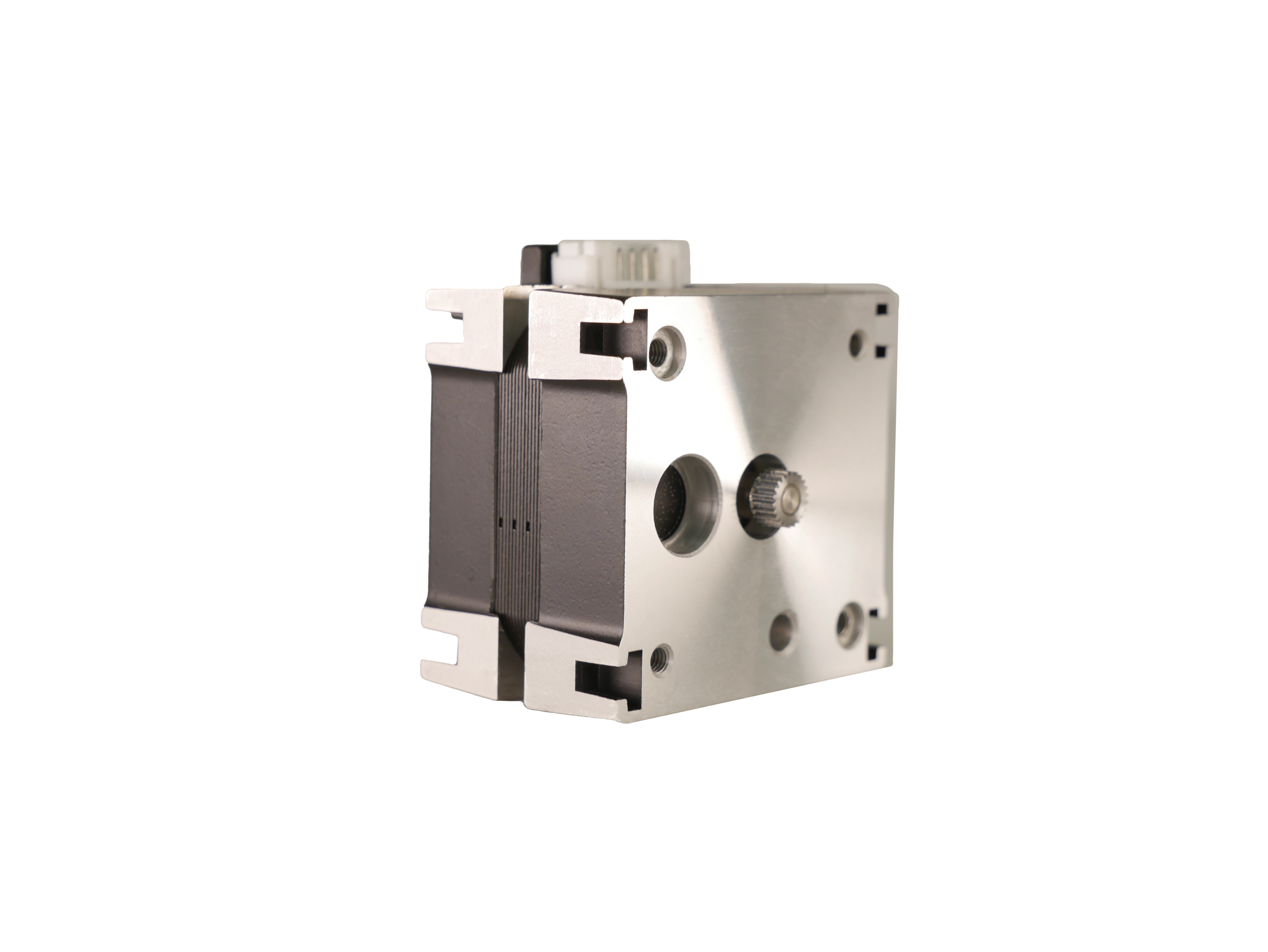

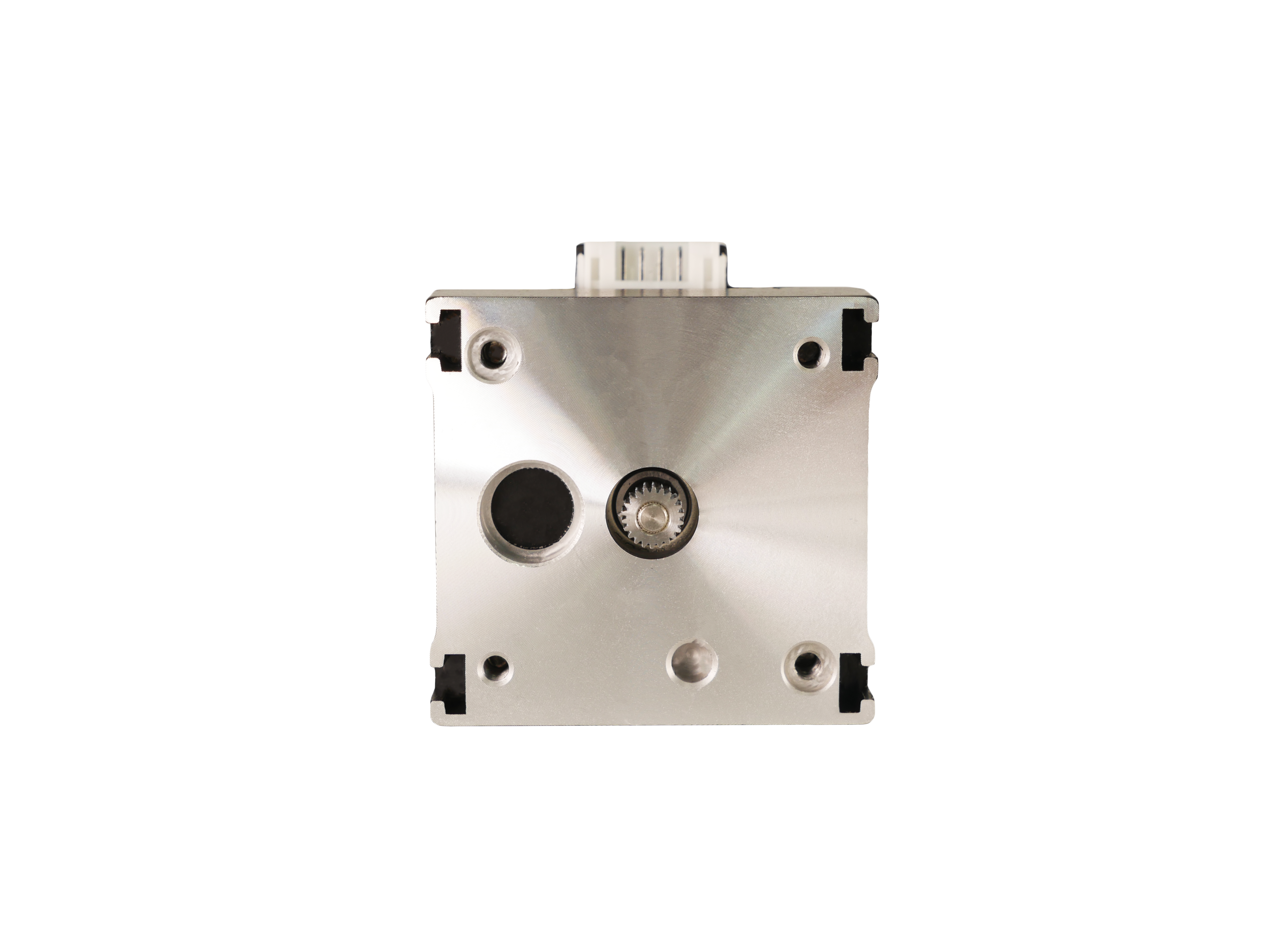

Hemera XS Motor

This custom Hemera stepper motor works with all variations of Hemera, including classic Hemera and Revo Hemera. It’s 92g shorter and 11m lighter than the original motor, so you can win back some motion system agility and space within your build volume.

This motor has all the torque you need to drive the entire E3D nozzle ecosystem, including Revo Nozzles and SuperVolcano with a Hemera heatbreak.

In the event of a jam, the filament drive mechanism for Revo Hemera XS will stall instead of stripping filament, making it easier to recover and get 3D printing again.

Key features

Motor cable length: 1000mm

Phase no: 2 phases

More details can be found in the datasheet

Kit contains

-          1 x Hemera XS motor

Mount system

Flat mounting with T-slot screws – space for accessories such as bed levelling probes

Please note: Due to a shorter motor, any mounts designed for classic Hemera will need to be changed to accommodate the different mounting pattern.

Voltage

12V or 24V

Dimensions

Cable length: 1000mm

48.2 x 44 x 29mm (HxWxD exc. output shaft[MJ1] )
