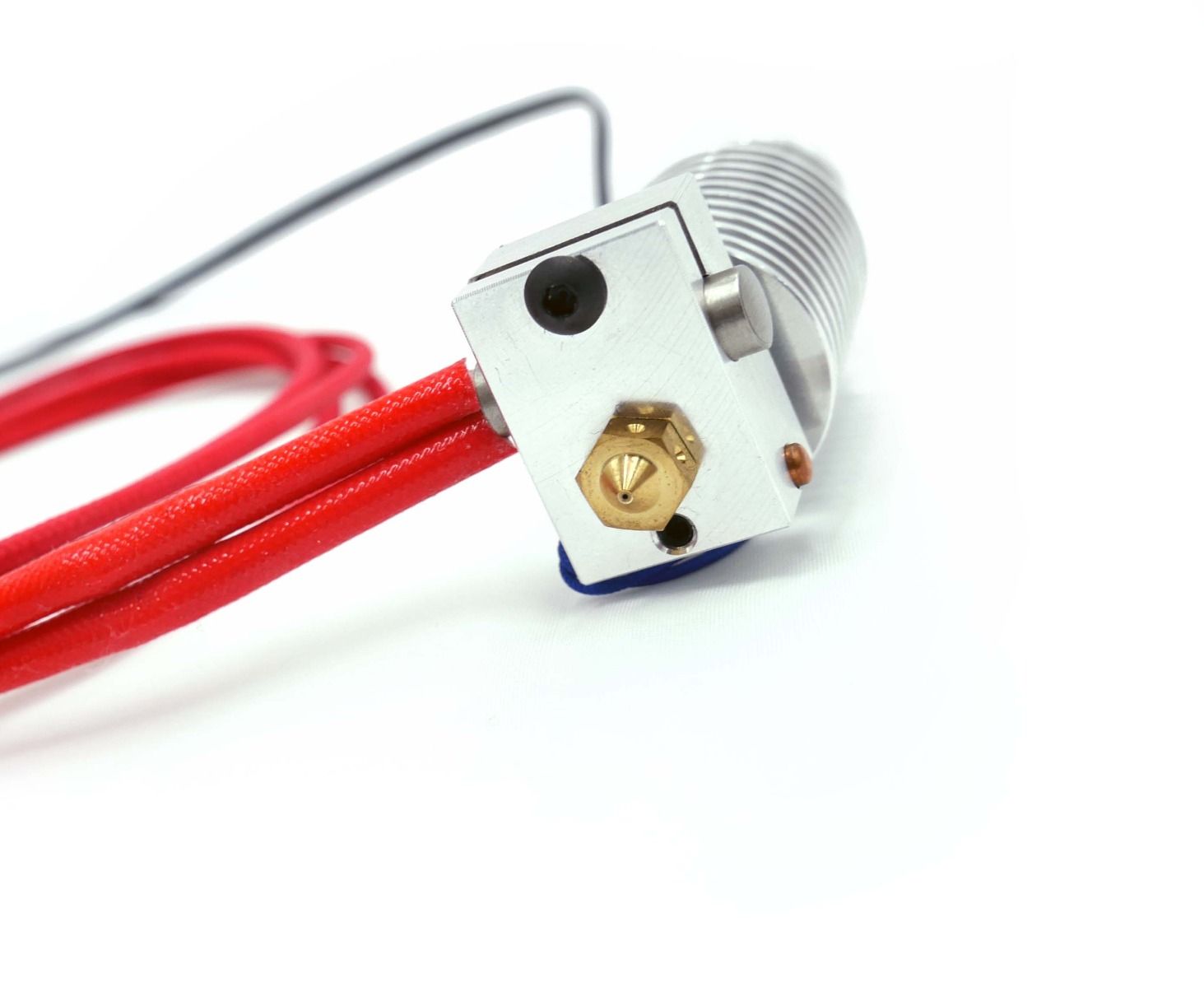

Prusa V6 HotEnd

The Prusa V6 HotEnd offers the same all-metal, high-performance reliability of the V6, whilst swapping out several of our standard components with Prusa specific parts. These include a 40W heater cartridge for increased power, a longer wired thermistor and a heatbreak with Prusa specific internal geometries - designed to improve retractions with the Multi-Material upgrade.

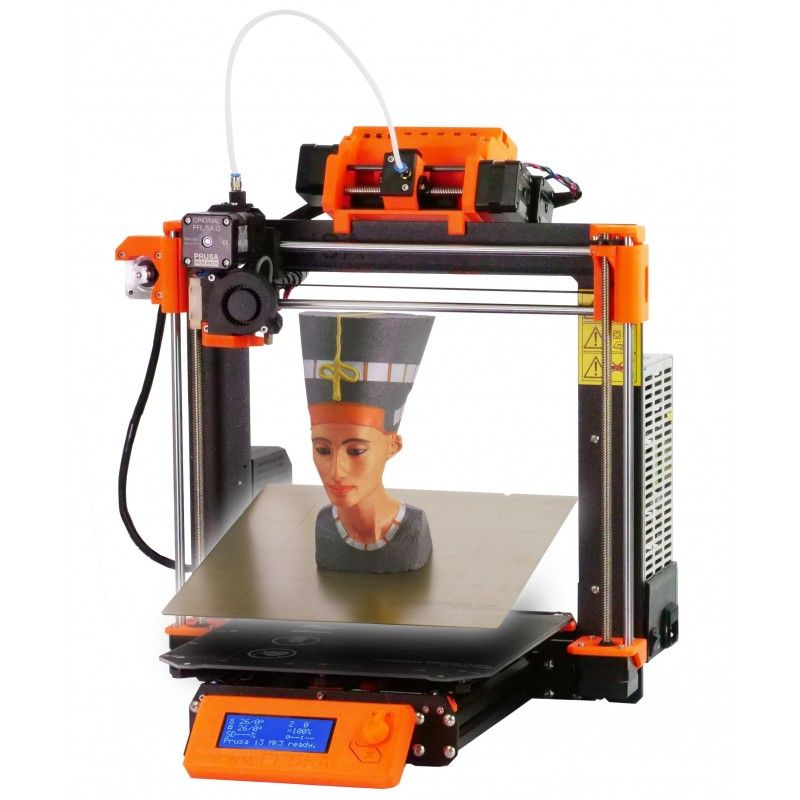

This is a 24V HotEnd and is intended for function with a Prusa MK3 or MK3S. Do not use this HotEnd with 12V Prusas such as the MK2 or MK2S as this may damage your printer.

Please note - this HotEnd does not come with the specific PTFE used by Prusa, please retain the PTFE from your existing HotEnd. For reference, PTFE should look like this on the MK3S/MK2.5S and this on a MK3/MK2.5 MMU2.

• 1 x Aluminum heatsink
• 1 x Stainless steel heatbreak (Prusa specific)
• 1 x Brass nozzle (0.4mm)

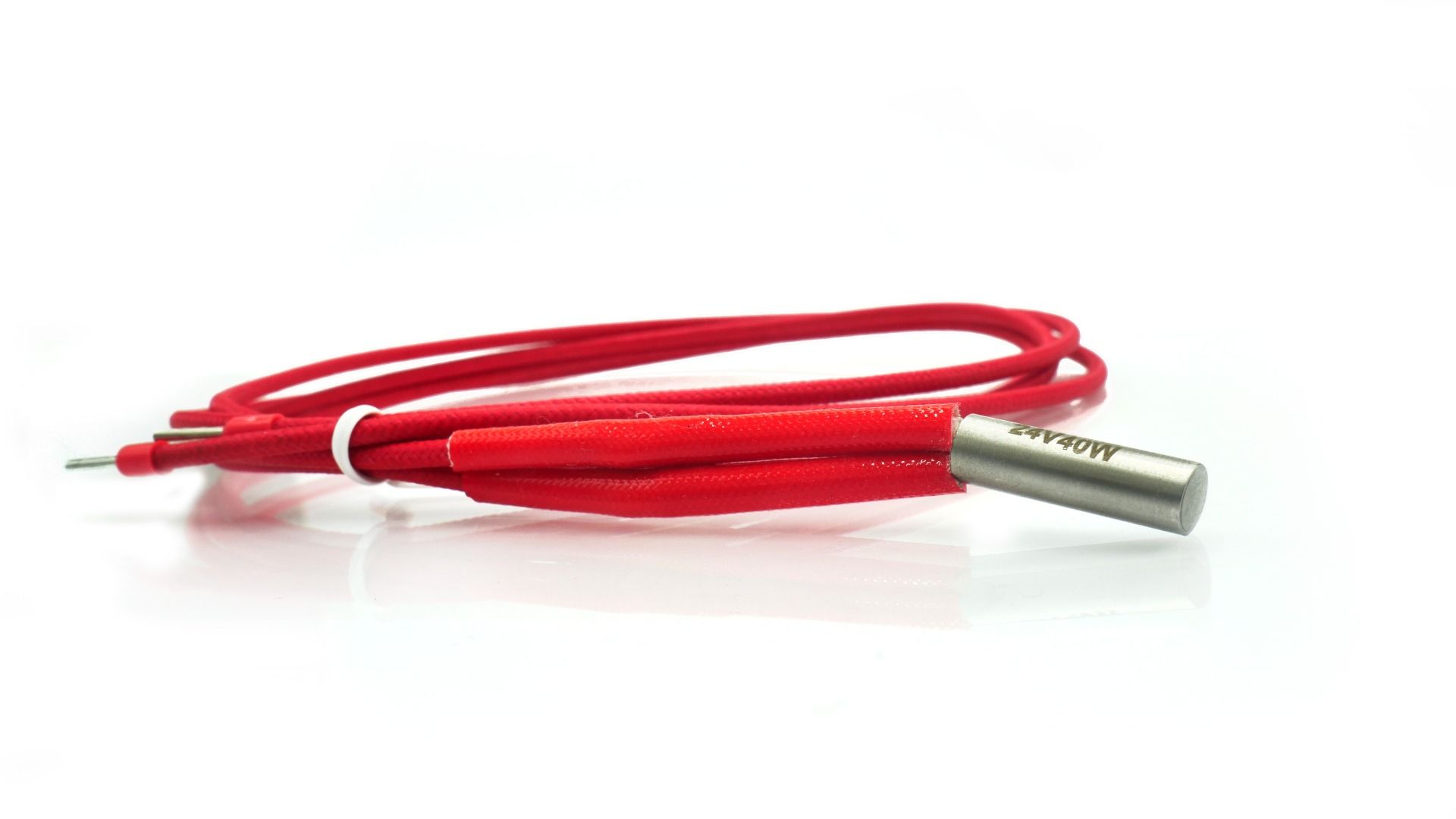

• 1 x 24V 40W Heater cartridge
• 1 x Aluminium heater block

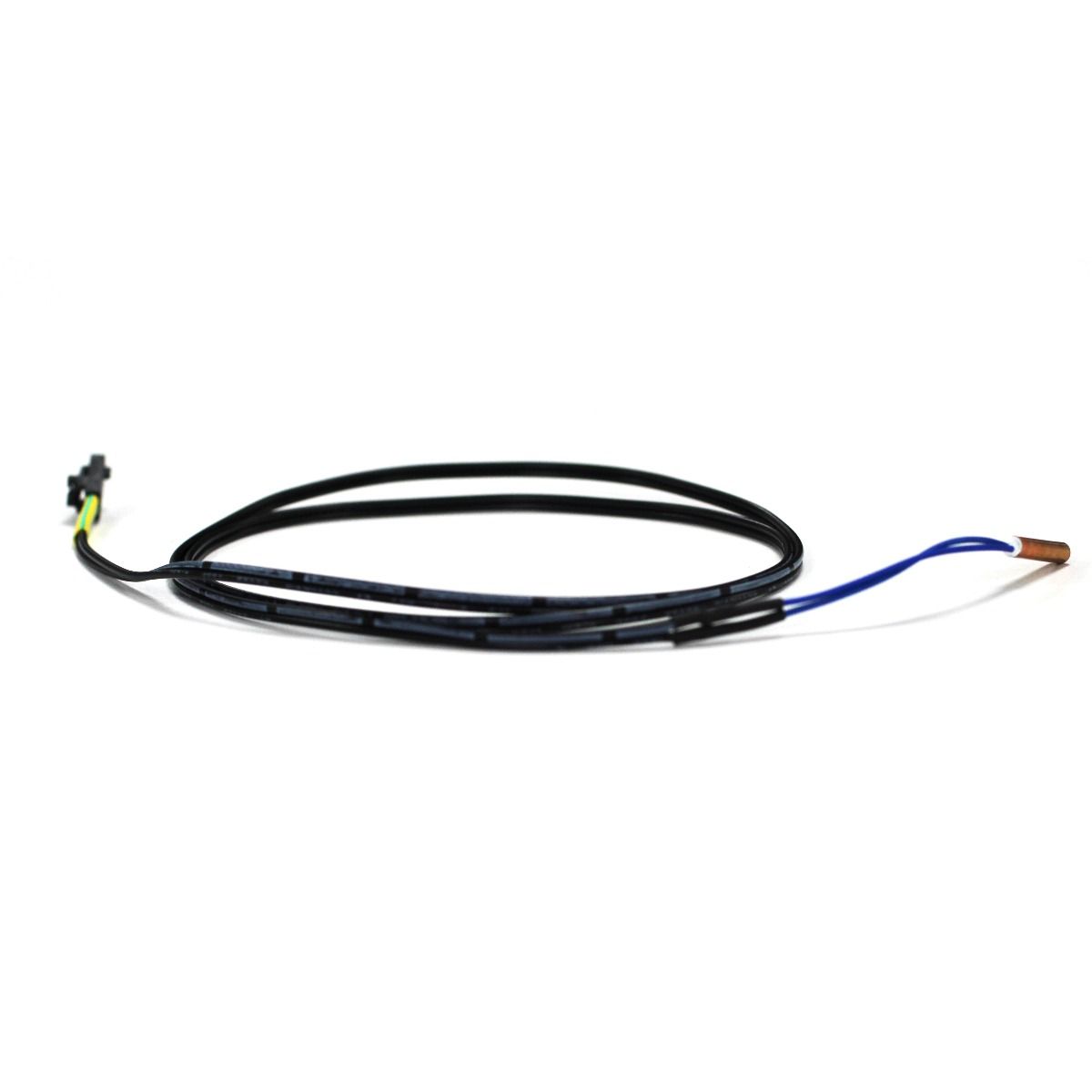

• 1 x Thermistor (Prusa specific)
• 1 x Bowden collet (metal)
• 1 x Bowden clip
• 1 x Fixings kit
• 1 x PTFE tubing
• 1 x M3 Grub screw
• 1 x M3 washer
• 1 x Thermal paste

See our full V6 documentation here: http://e3d-online.dozuki.com/c/v6
