BLTouch-smart V3.1

Version V3.1

Logic Voltage free: 3.3V / 5V logic voltage free

Long Stroke: The stroke becomes 1.6mm longer than the previous stroke.

Summary

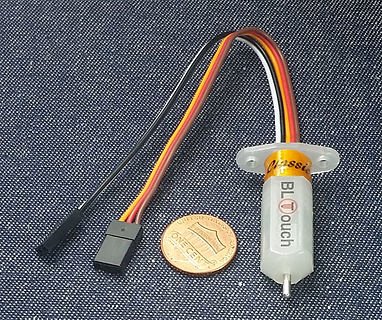

BLTouch is an auto leveling sensor for 3D Printers that can precisely measure the tilt of Bed surface. It could work with any kinds of bed materials, such as glasses, woods, metals, and so on.

Features

Main functions and controls of BLTouch are the same as usual auto bed leveling sensor, consists of RC servo and micro switch. Thus, BLTouch can be applied on almost every board.

BLTouch is fulfilled with simple structure and high precision by using progressively designed solenoid and hall sensor. It aims for user convenience and enjoyable printing by adding many smart functions, such as self-test, alarm, alarm release & Touch Switch mode, Blue LED for servo signal indicating and Z-probe(Zmin) Testing.

Simple

BLTouch can be easily applied, since it has a small and simple structure. As BLTouch works as usual auto bed leveling sensor, Gathering information & setting up your firmware will be an easy task.

Smart

Self-test : The push pin operate two times in a test when the power is on.

Alarm : The LED light blinks if a problem was found on a self-test or during operation.

High-precision

BLTouch’s Standard Deviation in repeatability is around 0.005mm, at that precise.

■ BLTouch

BLTouch must be installed perpendicular to the ground.

If BLTouch push-pin can't be perpendicular to the ground, BLTouch will out put wrong signal.

Weitere Anleitungen hier:

https://www.antclabs.com/manual

https://www.antclabs.com/wiring

https://www.antclabs.com/bltouch-v3

Package List

1 X BLTouch(Smart V3.1)

​

Spare parts - for just in case something happens

(We do not provide spare parts and cable to 3D printer makers)

2 X Screw & Nut & Washer

2 X Spring for BLTouch Mounting

2 X Dupont Housing Shell 3Pin

2 X Dupont Housing Shell 2Pin

2 X Dupont Housing Shell 1Pin

10 X Dupont Terminal (Male & Female)

1 X Jumper Cap
