Revo™ High-Temperature HeaterBlock
56,00 €
Versandkostenfrei
Produktinformationen "Revo™ High-Temperature HeaterBlock"

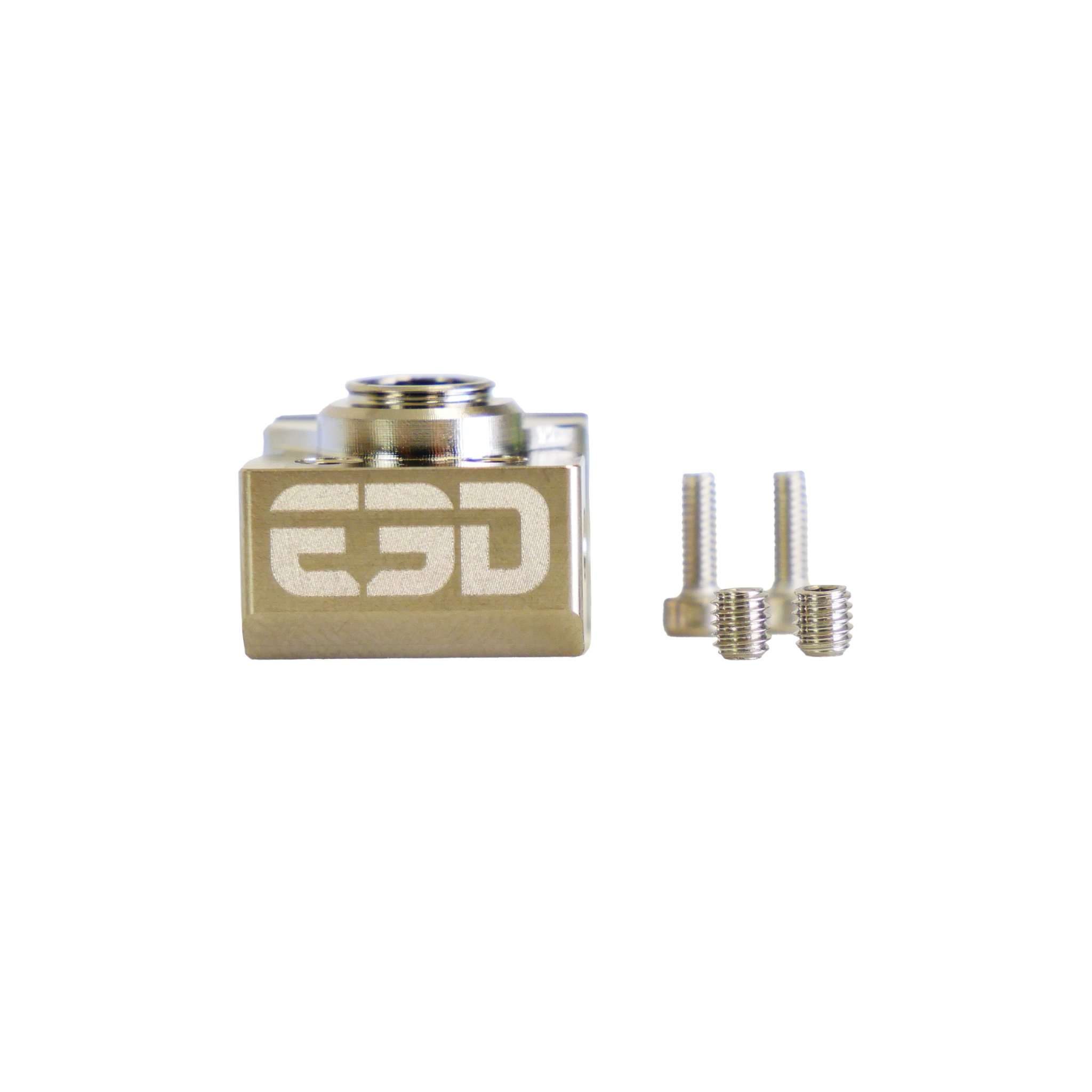

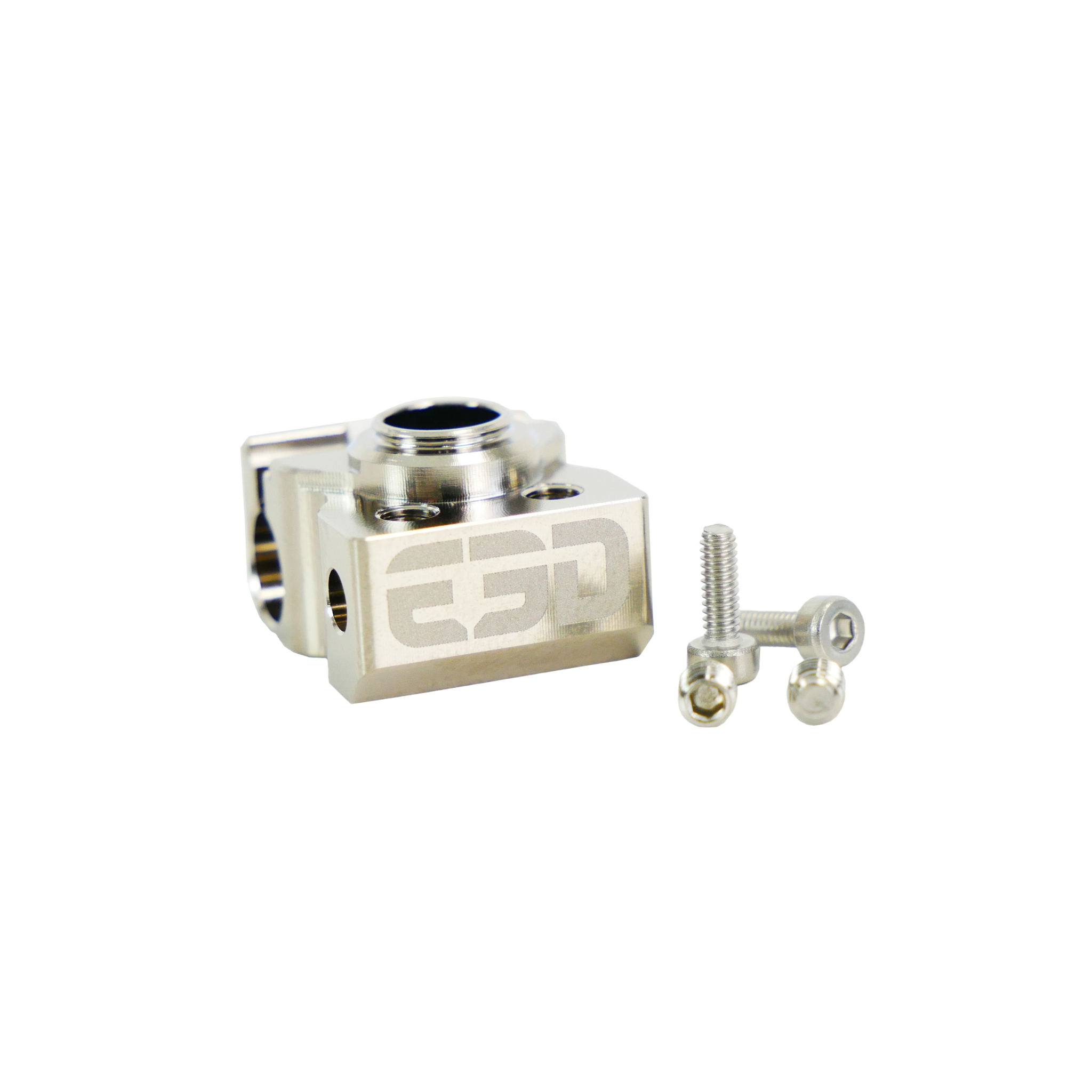

This plated copper HeaterBlock allows you to reach up to 500°C with your Revo system (providing you use a PT100 or PT1000), unlocking the possibilities of printing high-temperature filaments such as Ultem and PEEK.
Anmelden
Accessory Items

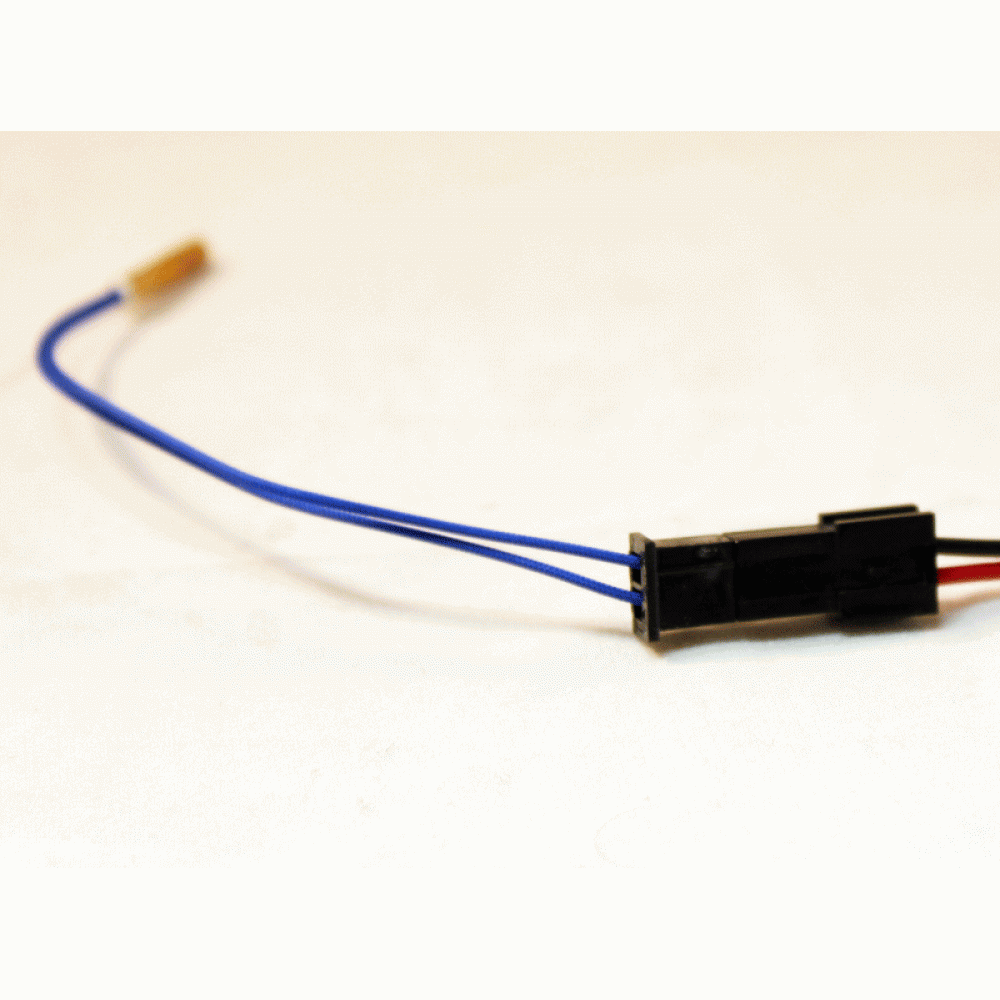

PT100's are high temperature, high accuracy temperature sensors that you can now use on your E3D-v6 HotEnd instead of a thermistor or thermocouple. PT100's are able to measure higher temperatures than thermistors - upto 400C, and are more accurate then both thermistors and thermocouples in general. Our PT100 sensors are also very easy to handle, being of a metal cartridge type construction that is secured with a set screw, no more fiberglass sleeving or clamping washer. The PT100 sensor will not fit in the standard E3D Hotends, but can be used with E3D-v6, Chimera, Lite6, and Kraken by using the PT100 Heater Block available in the spares and extras section. Please be aware that a PT100 is not the same as a thermistor and unless your electronics explicitly supports RTD Sensing devices you will need an amplifier board. The Ultimaker 2 uses PT100 sensors by default, and this sensor allows you to connect your E3D Hotend and Ultimaker electronics with no alteration to the electronics or firmware of the Ultimaker 2. Dokumentation: http://wiki.e3d-online.com/wiki/E3D_PT100_Amplifier_Documentation

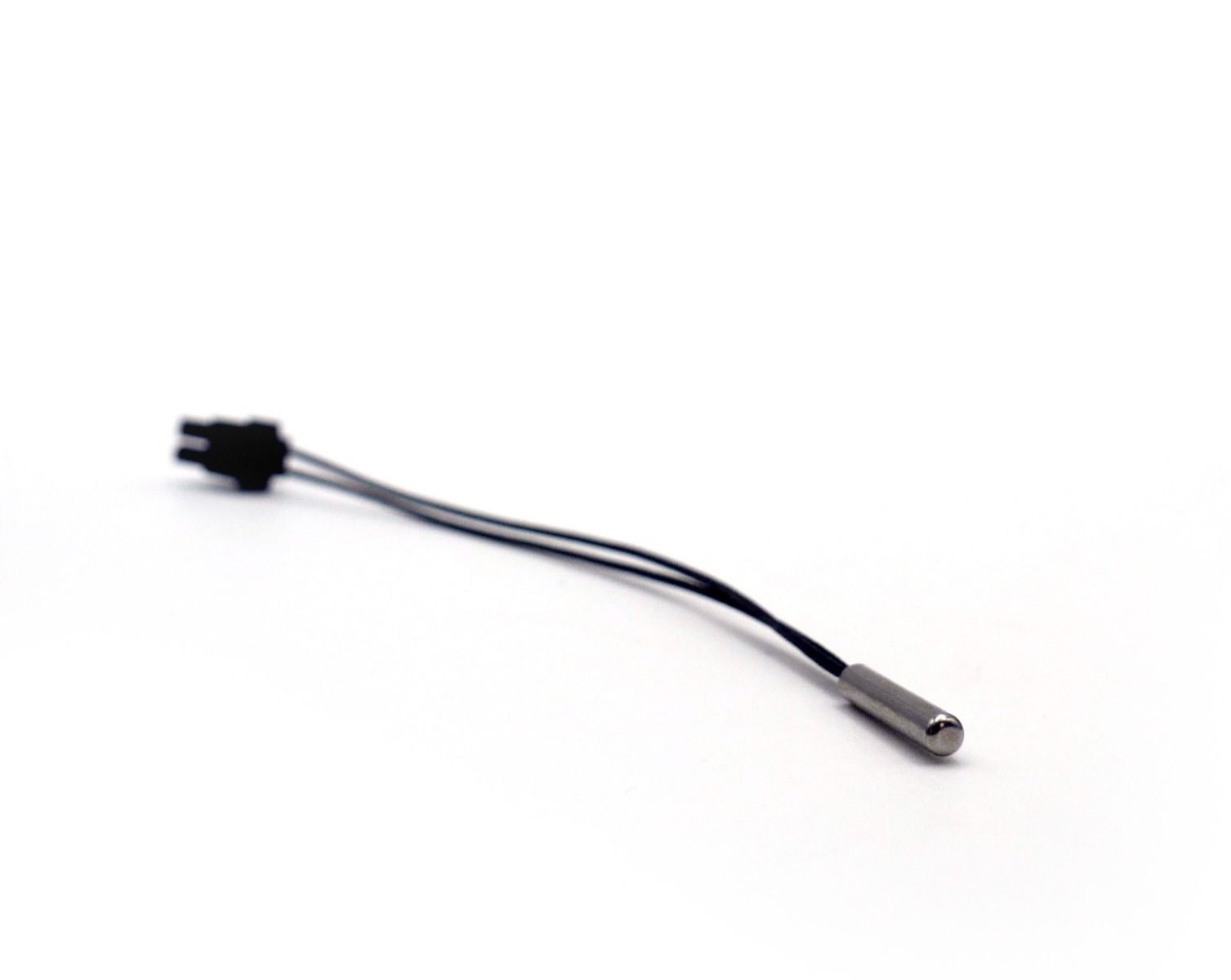

PT1000's are stainless steel high temperature, high accuracy temperature sensors that you can now use on your E3D V6 HotEnd instead of a thermistor or thermocouple. PT1000's are able to measure higher temperatures than thermistors - upto 500°C. Our PT1000 sensors are also very easy to handle, being of a metal cartridge type construction that is secured with a set screw, no more fiberglass sleeving or clamping washer. The PT1000 sensor will fit in the E3D cartridge style heater blocks. PT1000's are similiar to thermistors in that you do NOT need an amplifier board. PT1000 sind ähnlich den Thermistoren, so dass Sie KEINE Verstärkerplatine benötigen. Direktes anschliessen am Board. Marlin Settings 1047 : Pt1000 with 4k7 pullup
