Upgrade Your Prusa Mini or Mini+
This set may be used on the Prusa Mini or Mini +.
Filament Sensor Compatible
The Bondtech Internal Filament Sensor Extruder for Prusa Mini may embed the new Prusa filament sensor for Mini or Mini+ on its front housing.
The extruder may be used with or without the filament sensor.
Use this set of parts to make your original Prusa Mini Extruder compatible with IFS.

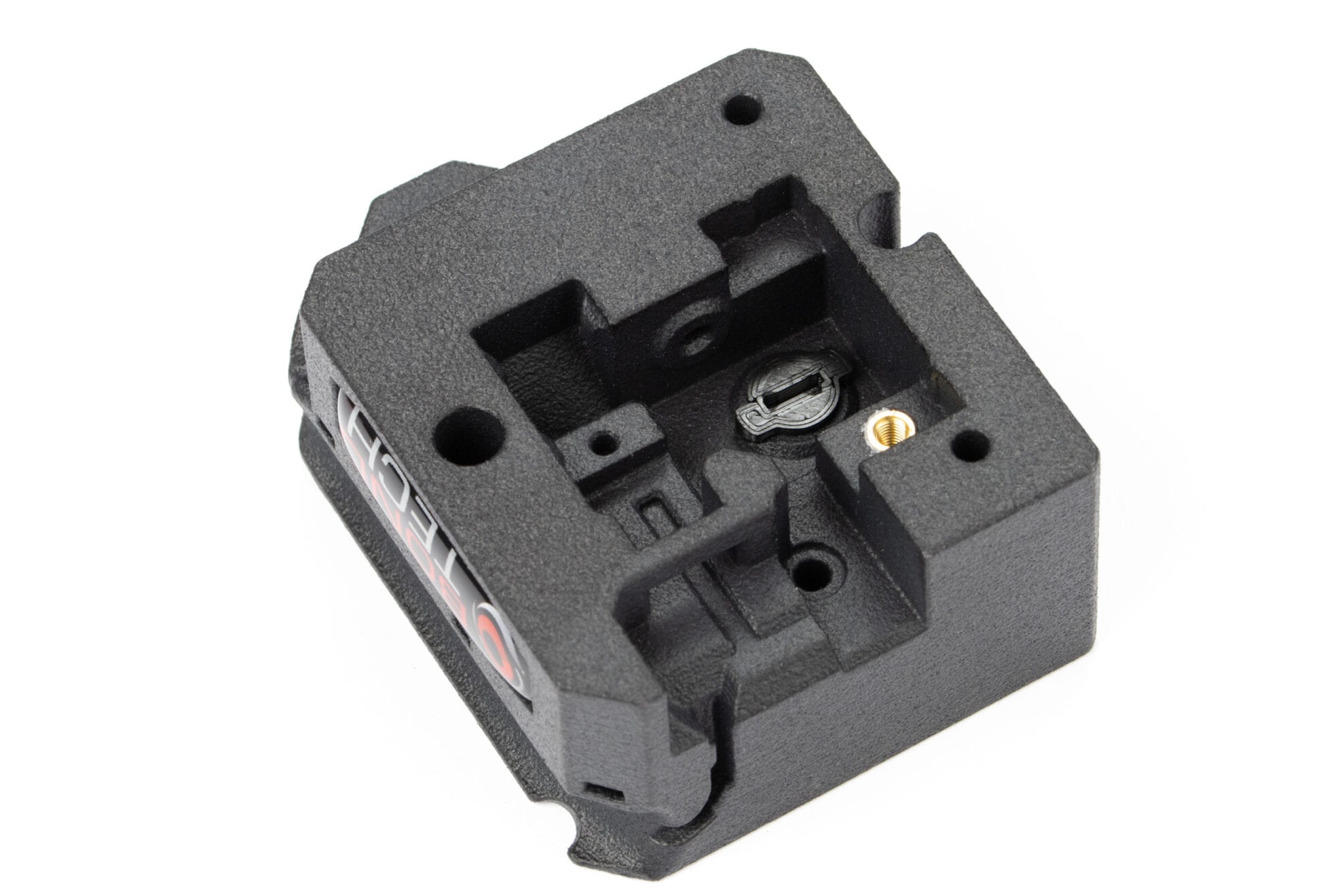

Front Housing Plug

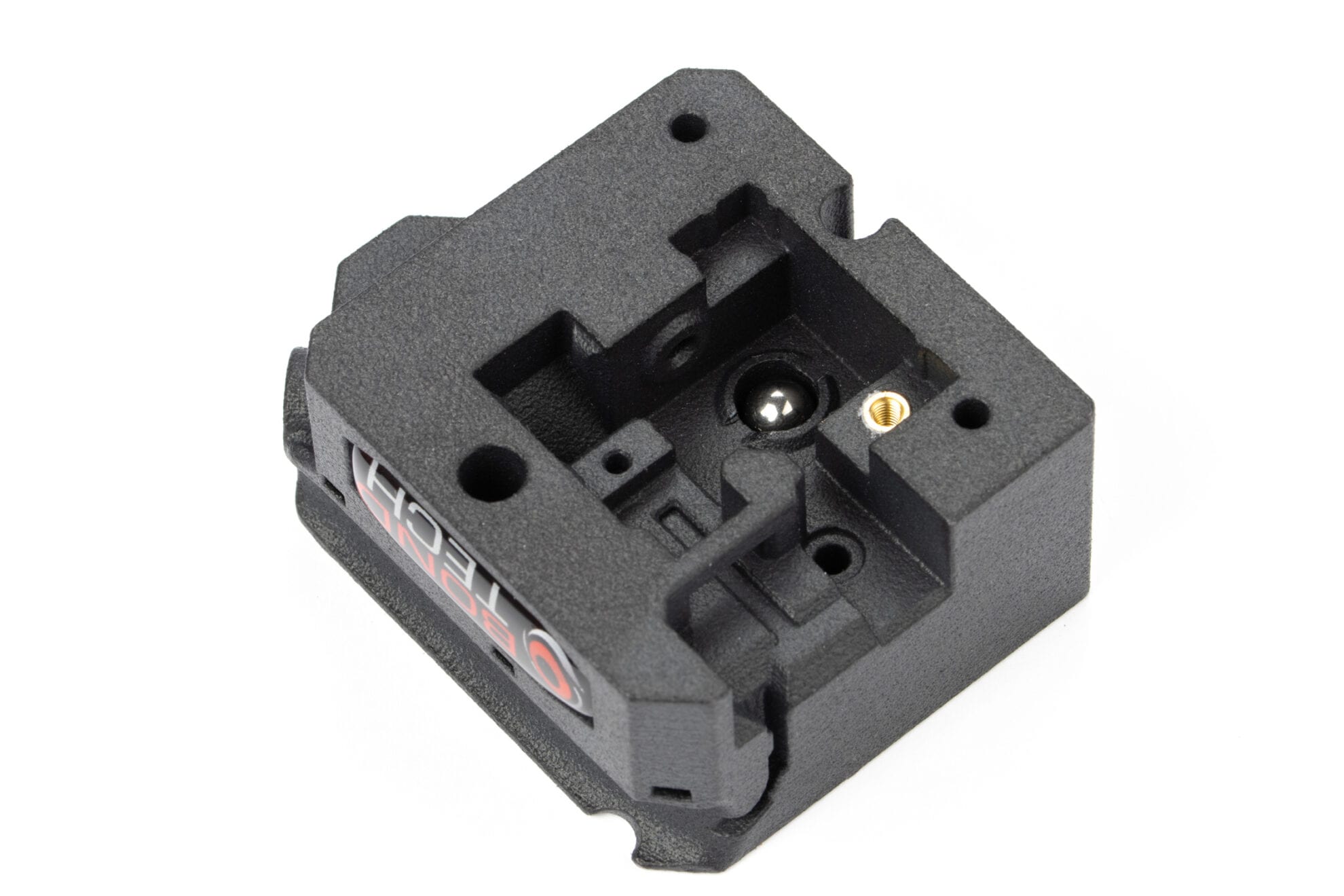

The front housing of the IFS Extruder for Prusa Mini includes a plug that is just a placeholder for the filament sensor steel sphere, and it allows the extruder to be used without a filament sensor.
If you want to use the IFS Extruder for Prusa Mini with the Prusa FIlament Sensor, remove the plug and follow the guide to install all the accessories required.

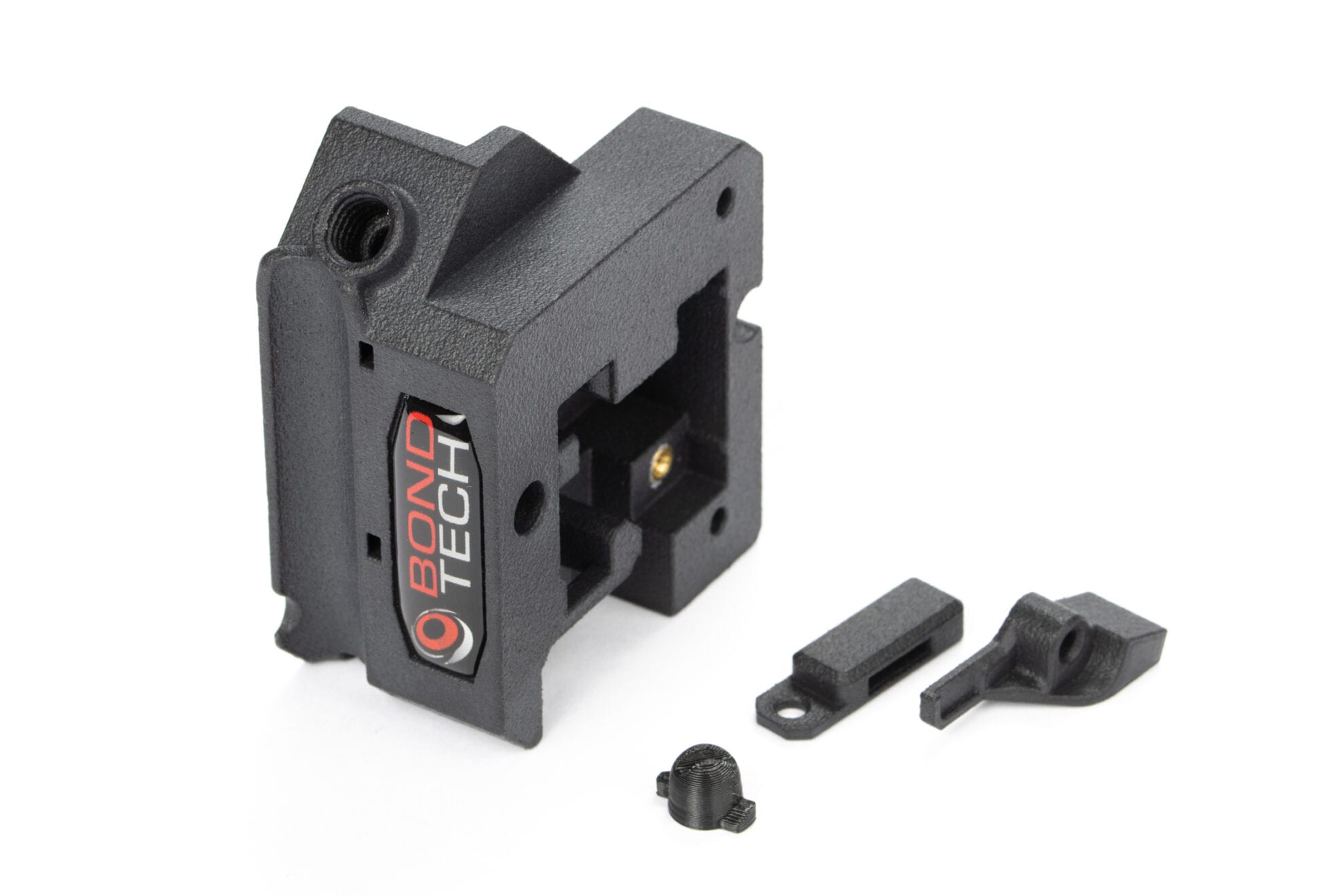

Included in this Kit
- 1x 10076-3 Front Housing (PA12)
- 1x 10076-4 IFS Magnet Holder (PA12)
- 1x 10076-5 IFS Lever (PA12)
- 1x 15112 IFS Extruder Plug (HT-PLA)
Not included in this Kit
- Prusa Filament Sensor
- Filament Sensor Magnets
- Filament Sensor Steel Sphere
Community Sourced Design
The original Bondtech extruder for Prusa Mini design was proposed to us by Olof Ogland. This new IFS version was developed by Vecko Kojchevski on top of Olof’s work. It’s based on the thoroughly tested BMG (Bondtech Mini Geared) and adjusted to the Prusa Mini original design.
Product Info
EAN Code: 7350011413959
Net weight : 102.3g
