Each LGX™ FF Set is supplied with:
- 1x LGX™ Black Anodized Aluminum Heat Sink
- 1x LGX™ Black Anodized Aluminum Air Cooled Cold Block
- 1x LGX™ Air-cooled Cold Block Mounting Hardware

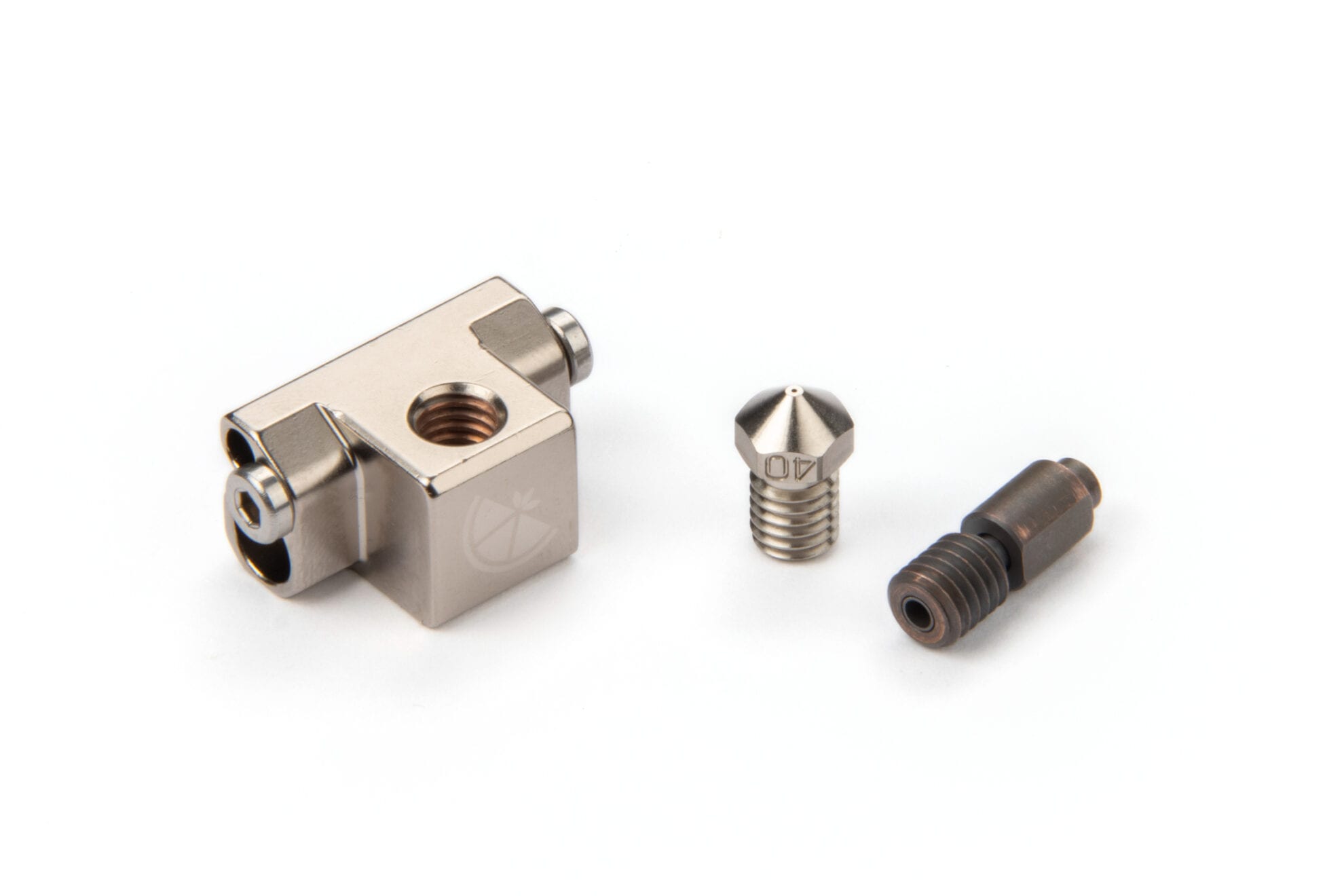

- 1x Copperhead™ LGX™ Heat Break
- 1x Copperhead™ Hot Block
- 1x Bondtech M6x1x7.5 Coated Brass Nozzle 0.4mm
Designed To Be Flexible

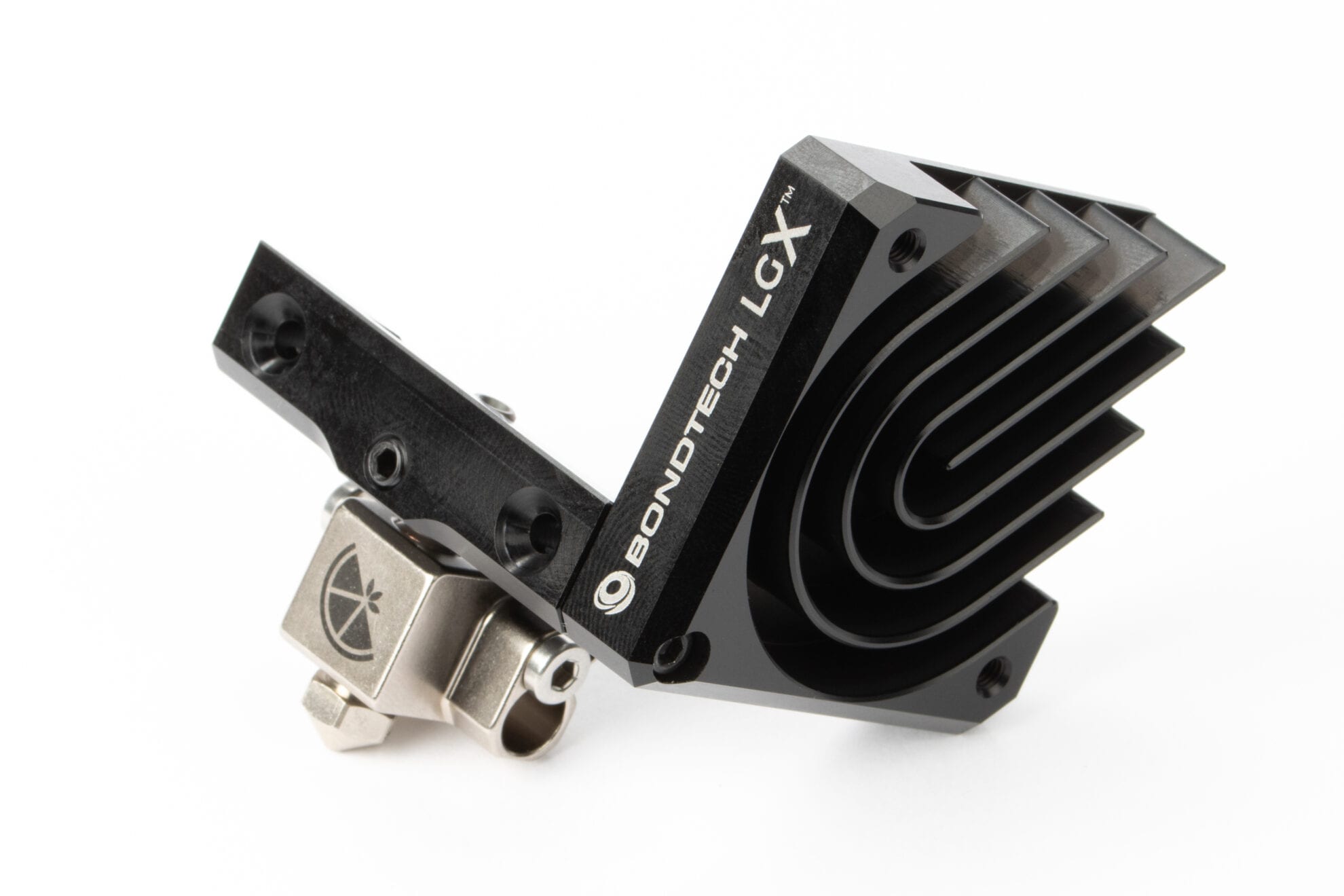

The LGX™ For Flexibles Set includes a reversible heat sink that can be installed on the left or right hand side of the cold block. The heat sink also includes the hole pattern for attaching 40×40 fans.
Cooling down the heat break
Our tests suggest a 4010 fan is enough to cool down the cold block and the cold zone of the heat break, even with such small contact surface to the heat sink.
In case you have an application where additional cooling is required, try using a 4020 fan or 2 LGX heat sinks, one on each side.
Main Advantages
- Gives access to softer materials.
- Enables to print flexible and soft materials faster.
- Keeps the print-head small and light.
- Allows mounting in many different ways.
Compatibility Alerts
The LGX™ FF is not compatible with the following items:
- 3DSolex Matchless 1.75mm nozzles.
