Revo™ High Flow Hotside
105,00 €
Versandkostenfrei
Produktinformationen "Revo™ High Flow Hotside"
Higher Flow
Revo High Flow increases your setup's volumetric flow rate, enabling you to print faster!
How does this work?
Unlike our previous E3D High Flow Hotends (Volcano and SuperVolcano), Revo High Flow maintains the exact same form factor as standard Revo HotEnds; this means there is no need to adjust your pre-existing mount and fan duct setups! Revo High Flow uses a unique custom internal geometry to increase the surface area for improved thermal transfer to the filament.
More nozzle sizes
Revo High Flow unlocks higher flow for existing 0.4mm, 0.60mm, and 0.80mm nozzle sizes and adds 1.00mm, 1.20mm, and 1.40mm nozzle sizes to your arsenal.
Including the standard Revo nozzle range, which is interchangeable, this allows for a wide range of printing applications with 0.15mm nozzles all the way up to 1.40mm!
Lets talk numbers
Empirically providing useful volumetric flow rate figures is a challenging task. To make our figures as close to real use case as possible, we have stuck to a semi-standardised testing procedure. For full details on our Volumetric flow rate findings, please refer to our Documentation page.
https://e3d-online.com/blogs/help-centre/revo-nozzle-maximum-flow-rates
It is important to note that when we subject other high-flow hotends on the market to the same testing procedure, the maximum flow rate claims fall short when appropriate print temperature, track widths and layer heights are used.
Similarly, we have benchmarked standard filaments that are not necessarily designed to be used in high-flow situations. If you use HTPLA, PLA³ filament or other specifically high-flow designed materials, the maximum volumetric flow rate you can achieve with Revo High flow is awesome!
FAQ’s
Do I need the new 60W Revo™ HeaterCore?
For the majority of uses cases the standard 40W HeaterCore will suffice, however if you want to maximise your performance with high temperature materials such as Polycarbonate we would recommend upgrading to the 60W core to reach the full potential of Revo™ High Flow.
How did you get around the CHT patent?
You will notice an interesting label on the side of your Revo High Flow packaging: we’re delighted to say that E3D has reached a unique agreement with Bondtech, who have exclusive rights to the 3D Solex’s CHT patent, to license core heating technology for the Revo system.
So what does this mean?
Revo users have unrestricted access to our unique high flow system. We fully support 3D Solex and Bondtech’s IP ownership and rights over their Core Heating Technology. We stand with Bondtech against the cloners, the poor copies and the companies ‘trying their luck’ by ripping off CHT, or trying to circumvent their patent with quirks in design that they see as loopholes (spoiler: they’re not loopholes, and every product sold is taking income away from the CHT inventor, Carl Beck).
Does E3D have its own ‘patent pending’ high flow design?
Yes, we do. There are some unique features we are told are patentable, and an application is pending – at some point in the future the results of that will become clear and we expect to have patent coverage. The overlaps with the CHT solution mean we want to cover all the bases, and instead of launching a product regardless of Bondtech’s position, we approached Bondtech up front, and slowly built up a relationship and an agreement that works for both parties.
Will my Z-offset change when I install a Revo High Flow nozzle?
Revo Nozzles are all manufactured to the same length (within ±0.2mm) you will not need to reposition your Z-probe or re-level your bed. You may need to adjust your Z-offset to get a perfect first layer though.
How do I tell the difference between a standard nozzle and a high flow nozzle?
A high flow nozzle can be distinguished from a standard nozzle in two ways:
- The circle where the high flow geometry in inserted, located on the bottom of the nozzle (only visible when clean).
- When the sock is removed the nozzle diameter followed by ‘HF’ is engraved for easy identification.
Key features:
Maximum temperature: 300°C
Filament diameter: 1.75mm
Voltage: 24V
Compatible with: Revo Micro, Revo Six, Revo Voron, Revo CR, Revo Hemera XS, Revo Prusa MK3, Revo Prusa Mini, Revo MicroSwiss NG, Revo Biqu H2 V2
Kit Includes:
Revo High Flow Hotside Single Nozzle Kit:
1 x 60W 24V HeaterCore
1 x 0.6mm Revo HighFlow Nozzle
1 x Revo Spring

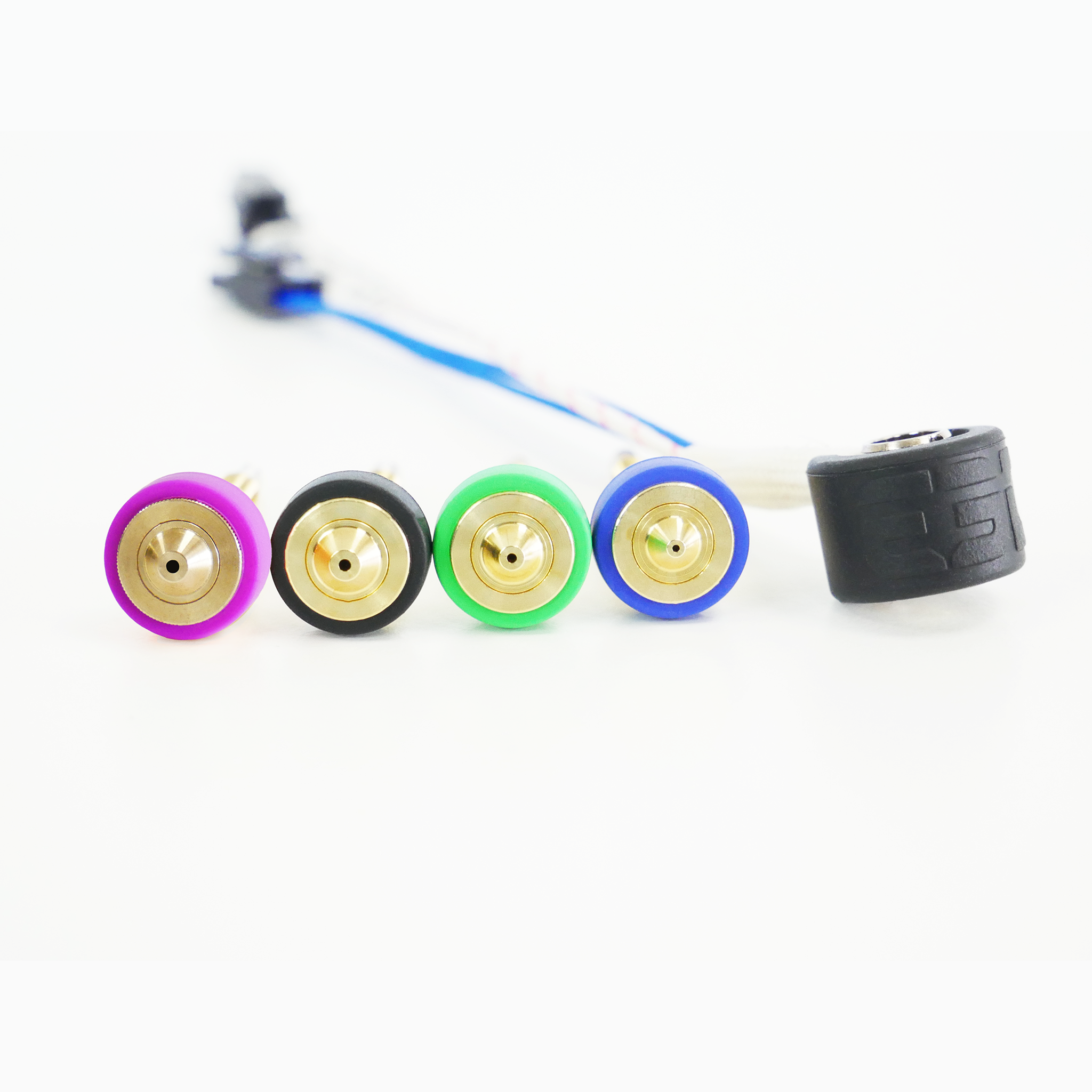

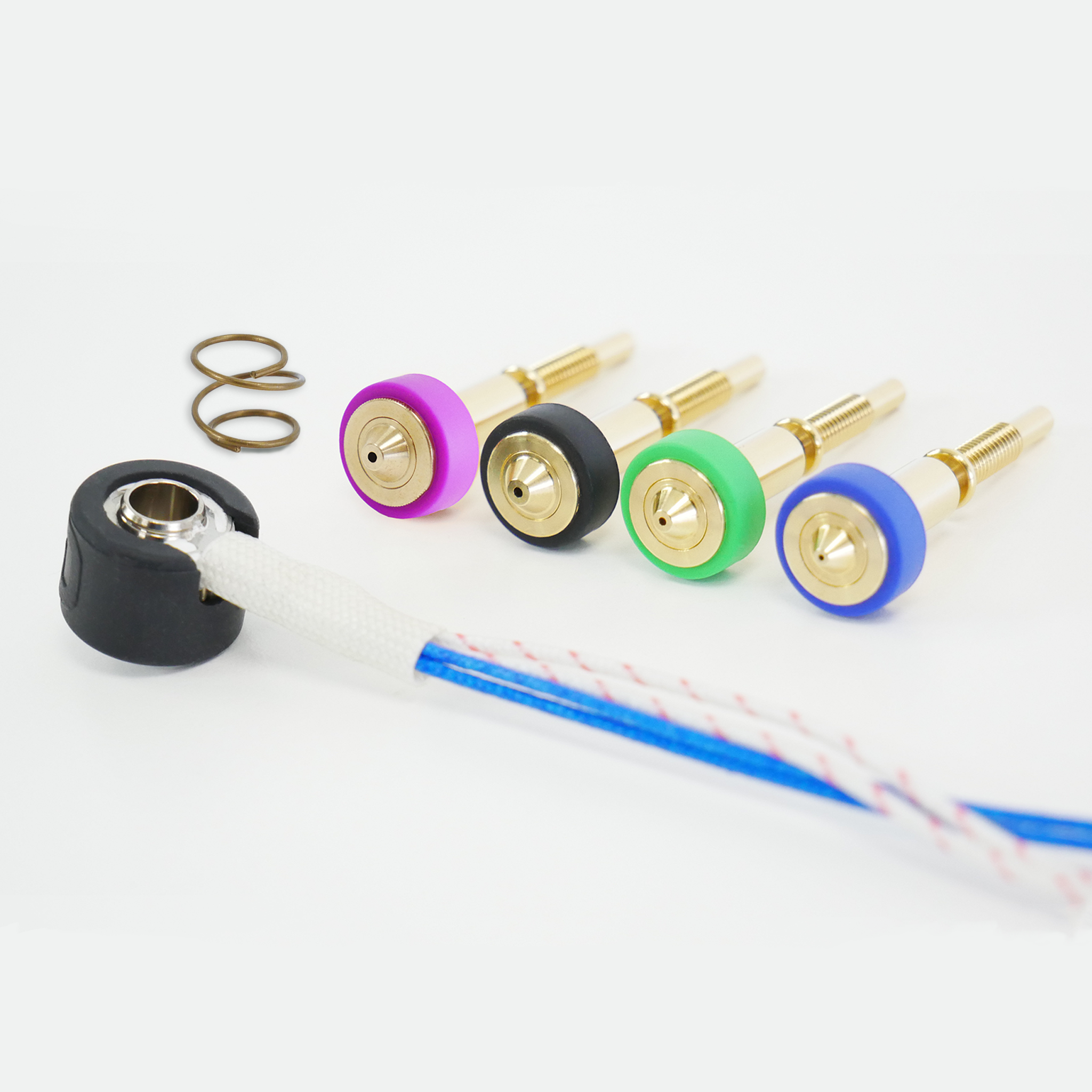

Revo High Flow HotSide Fully Loaded:
1 x 60W 24V HeaterCore with Spring & Sock
1 x 0.60 mm Revo High Flow Nozzle & Sock
1 x 0.80 mm Revo High Flow Nozzle & Sock
1 x 1.00 mm Revo High Flow Nozzle & Sock
1 x 1.20 mm Revo High Flow Nozzle & Sock
Documentation
https://e3d-online.com/blogs/help-centre/revo-nozzle-datasheet
https://e3d-online.com/blogs/help-centre/revo-nozzle-maximum-flow-rates
https://e3d-online.com/blogs/help-centre/heatercore-range-datasheet
Anmelden
Accessory Items

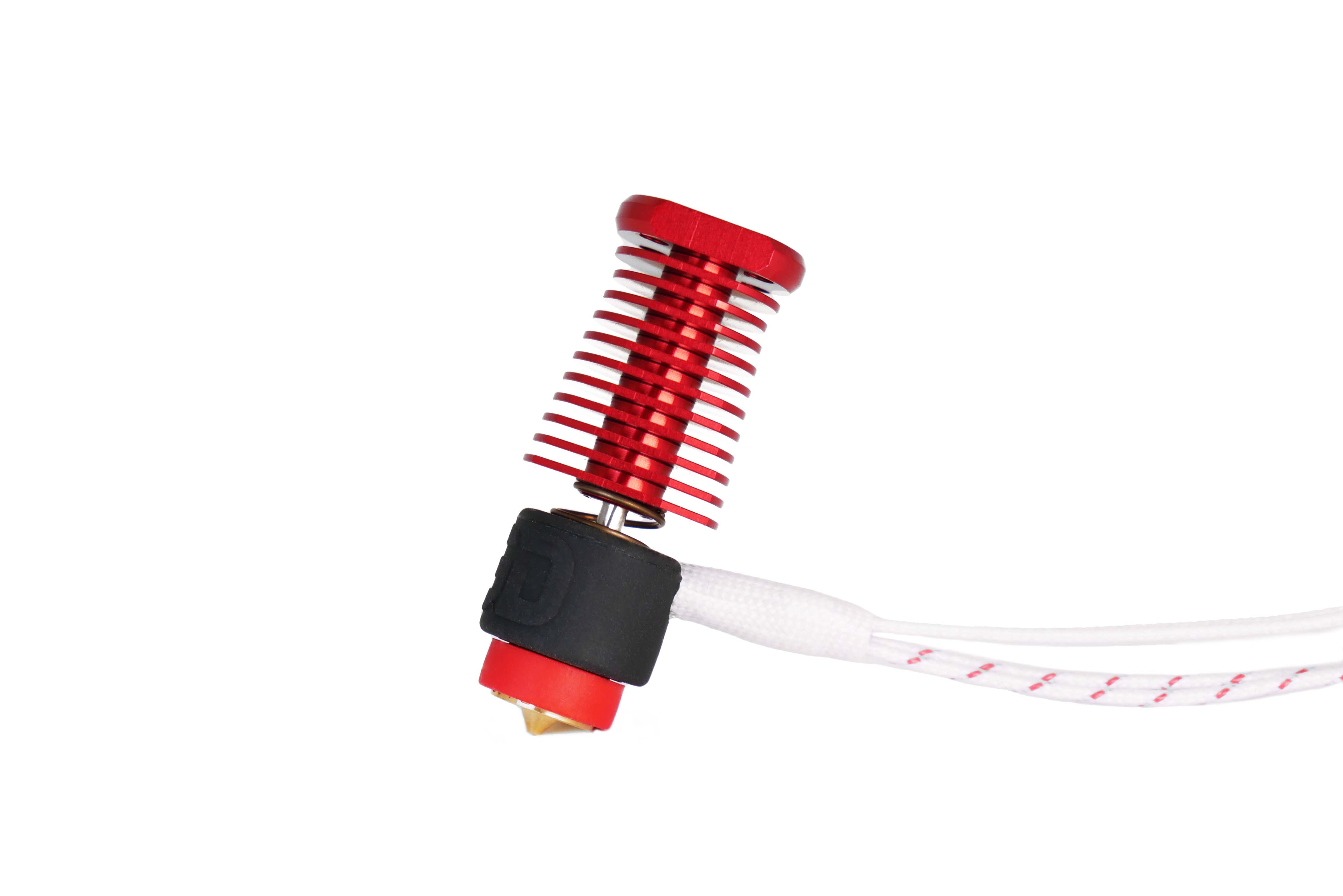

Long description We’ve developed this Revo-compatible cold side in collaboration with Team Voron. It’s intended for use with the Voron StealthBurner, which includes an integrated cold side fan. It’s compatible with our Revo ecosystem, so you can change nozzle size without tools or hot tightening using just your fingers. Uses Revo Nozzles – change nozzles cold, no tools, no hot tightening Works with a Revo HeaterCore for faster heat-ups Rigid mounting using 4 x M3 x 0.5 bolts Ultra-lightweight construction for improved speed performance Ideal HotEnd for Voron StealthBurner Heatsink is licensed under LGPL V3[RY1] Ready for Revo. A groove at the bottom of the sink accepts a Revo HeaterCore spring. It’s compatible with our Revo ecosystem, so you can change nozzles without tools or hot tightening using just your fingers. Complements your Voron. Includes an anodised red aluminium heatsink to complement your Voron accented parts. Rigid mounting. This is a rigid mounted design that uses four M3 x 0.5 bolts to secure to your Voron 3D printer. Compatible with: Voron 1 Voron Trident Voron Switchwire Voron 2.4 Voron Legacy Voron 0.1 Please note: - For full mounting instructions and STL files for Voron printed parts visit: https://docs.vorondesign.com/ - You may need to adjust your Z offset when changing nozzles. Key features - Max temp: 300°C - Works with Revo HeaterCore and Revo Nozzles - Mass: ~25g Kit contains - 1 x 12V or 24V 40W Revo HeaterCore - 1 x Revo HeaterCore spring - 1 x Revo Voron HeatSink Material compatibility 1.75mm Mount system Rigid mount (4 x M3 x 0.5 ) Voltage 12V vs 24V Dimensions Height: 48.80mm Diameter: 48.80mm See the datasheet for full specs

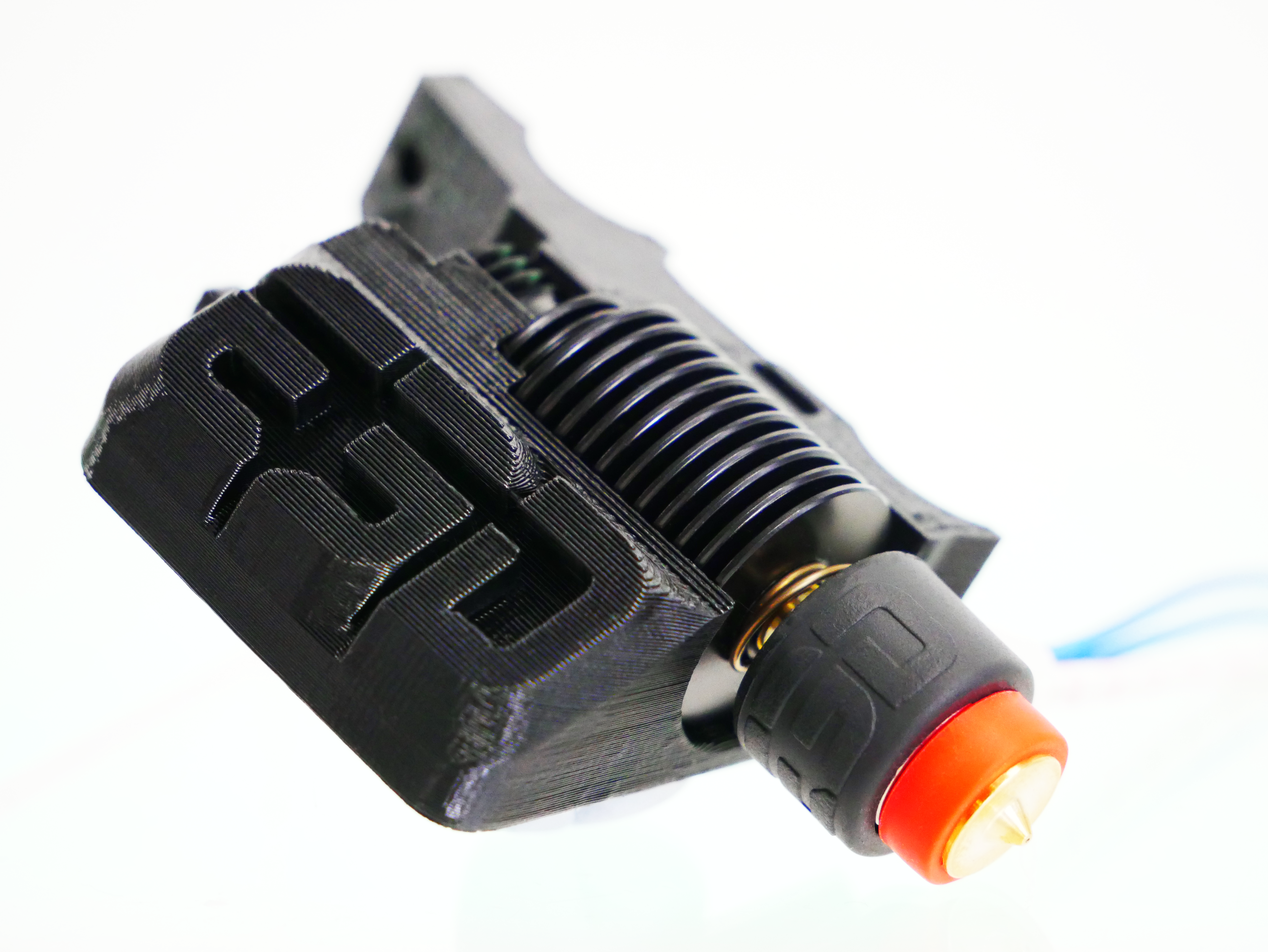

No machine redesign. Revo™ Prusa Mini is a top choice if you want to update your old Prusa Mini or Mini+ setup to the latest generation of E3D™ HotEnd technology. It has the same nozzle position and filament diameter. All you need to do is undo the four screws that hold the existing HotEnd and reattach the new bracket. Easy-to-follow upgrade instructions can be found here. What’s more, your pre-existing Prusa print profiles remain compatible with no changes necessary. Ready for Revo™. Revo™ Prusa Mini is designed to work with Revo™ Nozzles, meaning you can perform nozzle swaps with your fingers at room temperature without complex tools or hot tightening. Each Revo™ Nozzle is factory sealed, making it much simpler and more reliable than most HotEnd technology available today. Enhanced performance. Revo™ Prusa Mini uses a Revo HeaterCore, our latest HotEnd heating and sensing architecture. It reaches temperature much faster than a traditional aluminium heater block, and it’s much safer: a positive temperature coefficient (PTC) means the HeaterCore can’t melt at extreme temperatures, reducing hazards in the event of a thermal runaway. No firmware or PID changes. Revo™ Prusa Mini was designed to be fully compatible with the stock Prusa Mini firmware – this means there’s no need to modify any firmware. Even more impressive is that it’s fully compatible with the Prusa Mini temperature monitoring model, meaning you don’t need to PID tune after the upgrade! Please note: You may need to adjust your Z offset when changing nozzles. This kit does not include a fan. The stock Prusa fan should be reused. This kit does not include any PTFE tube. If you require additional PTFE it can be purchased here. 1 x Revo™ Micro heatsink 1 x Collet 1 x Collet clip 1 x Revo™ HeaterCore 24V 1 x Revo™ HeaterCore spring 1 x Prusa Mini extension cable kit 1 x Prusa Mini bracket 3 x Cable tie 2 x M3 square nut Single nozzle kit: 1 x 0.40mm Brass Revo™ Nozzle Fully loaded nozzle kit: 1 x 0.25, 0.40, 0.60, and 0.80mm Brass Revo™ Nozzles Revo Prusa Mini Documentation ⚠️ WARNING: This product can expose you to chemicals including Mineral Oils, which is known to the State of California to cause cancer, and Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm.

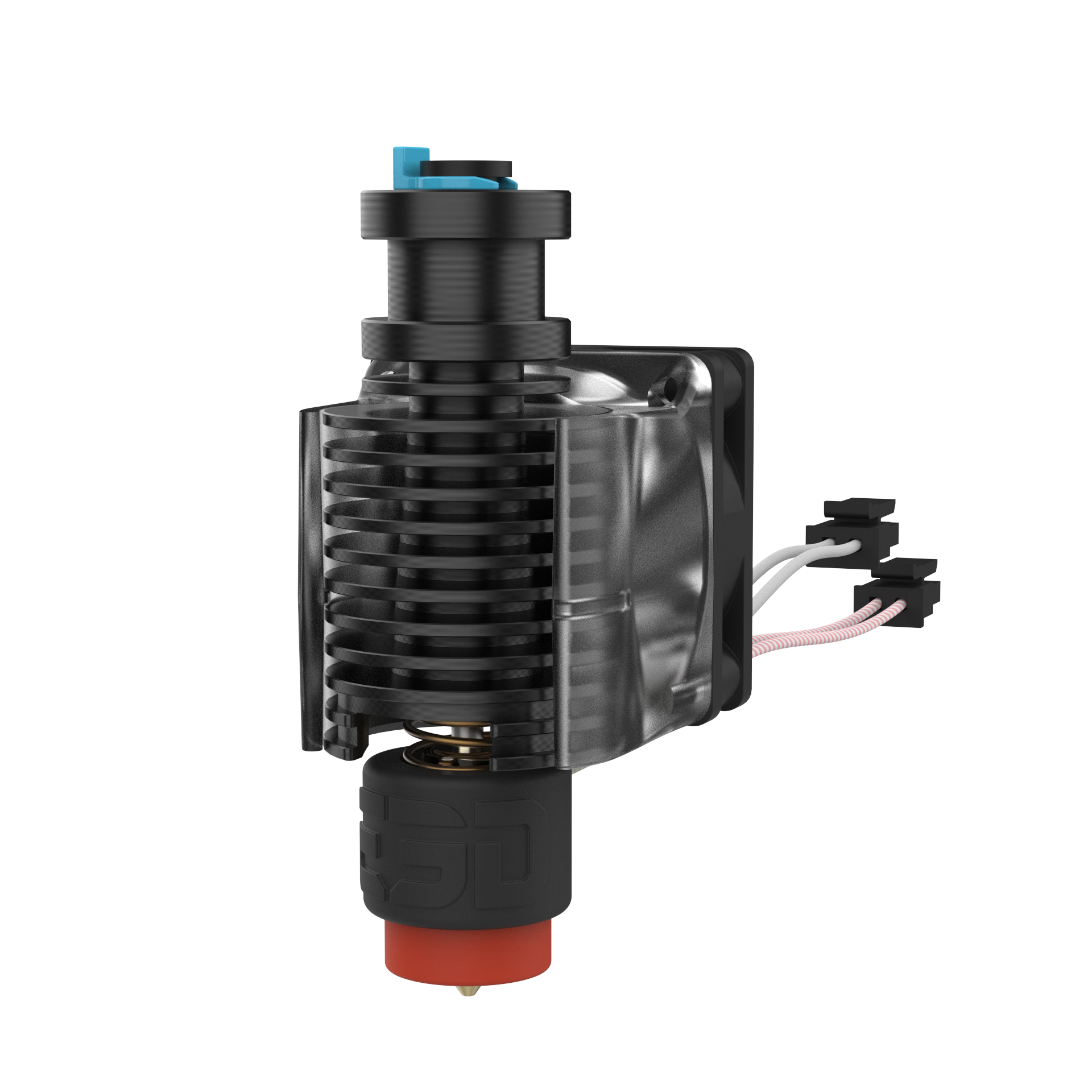

Revo Six is a drop-in replacement for your E3D V6 HotEnd, giving you all the benefits of E3D’s RapidChange Revo ecosystem in an easy-to-upgrade package. Same height, diameter, and mounting as the E3D V6 all-metal HotEnd No machine redesign needed - drops right into your existing setup Compatible with Revo Nozzles – swap nozzles at room temperature without tools or hot tightening Anodised black sink and crystal-clear fan mount with fan included Revo HeaterCore included for faster, safer heating Key features - Max temp: 300C - Works with Revo HeaterCore and Revo Nozzles - Mounting system: Groove mount - Dimensions: Diameter: 16.2mm Length 62.4mm - Voltage: 12V or 24V - Material compatibility: 1.75mm
