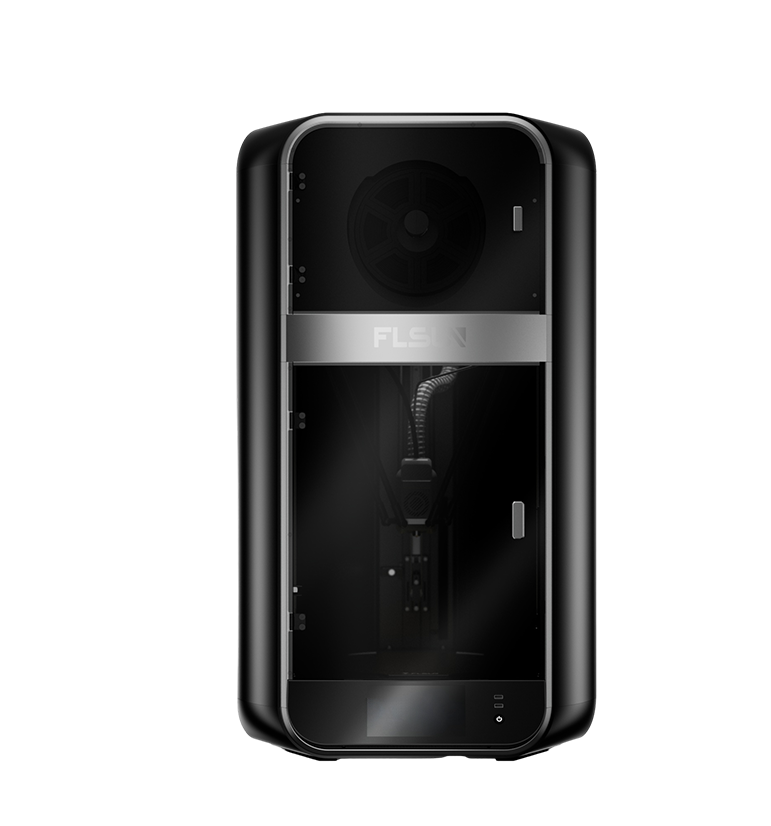

Die FLSun S1 verfügt über ein Bauvolumen von 320 x 320 x 430 mm und ist auf Hochgeschwindigkeitsdruck ausgerichtet - mit einer maximalen Geschwindigkeit von 1.200 mm/s, einer Beschleunigung von bis zu 40.000 mm/s und einer volumetrischen Durchflussrate von 110 mm. Der S1 verfügt außerdem über ein Schrittmotorsystem mit geschlossenem Regelkreis und ein Ganzmetall-Heißende, das bis 350 °C ausgelegt ist. Außerdem gibt es ein Microtac-Radar, das die Druckqualität, die Genauigkeit, den Durchfluss und den Druck der ersten Schichten verbessert. Höhepunkte 1200mm/s maximale Geschwindigkeit und 40000mm/s Beschleunigung 320 x 320 x 430 mm Großes Bauvolumen Microtac Radar zur Kontrolle der Druckqualität und -genauigkeit Alle Metall-Heizgeräte könne bis zu 350°C erreichen Geräte-Selbsttest zur Aufrechterhaltung der Druckerstabilität
The FLSUN S1 Pro is a high-speed, large-format 3D printer designed for both engineering projects and low-volume production. With a maximum printing speed of 1200 mm/s, a build volume of 320mm x 430mm, and a nozzle temperature of up to 350°C, it offers fast, precise, and reliable printing. Its quiet operation and intelligent features make it a practical choice for those looking to streamline their workflow. HighlightsPrints at speeds up to 1200 mm/s with 40,000 mm/s accelerationLarge build volume of 320mm x 430mm for big projectsSupports high-temperature materials like PPS-CF/GF and PPA-CF/GFAI-powered features including auto bed leveling and spaghetti detectionBuilt-in camera for real-time monitoring and time-lapse recordingOperates at just 55 dB for a quieter printing experience Construction an Technical Details Compatible Filament Diameter 1.75 mmMax Nozzle Temperature 350 ºCOpen Filament SystemYesRecommended Max Printing Speed1200 mm/s (depends on material)Build Volume320 mm x mm x 383 mm Max Build Plate Temp120 ºCBuild Plate SurfacePEIBuild Plate Leveling SystemautomaticBuild Chamber During ProcessClosedBuild Chamber HeatedYes, max 50°CNumber of Extruders 1Installation Space / Requirements Overall Dimensions 550 mm x 595 mm x 1030 mmNet Weight 41 kgVoltage AC: 110 V240 V (50-60 Hz)Equipment Hepa FilterYesFilament Clogging SensorYesPower Loss Fail SafeYesTouch ScreenYesCameraYesConnection USB Port Yes
Die FLSun S1 verfügt über ein Bauvolumen von 320 x 320 x 430 mm und ist auf Hochgeschwindigkeitsdruck ausgerichtet - mit einer maximalen Geschwindigkeit von 1.200 mm/s, einer Beschleunigung von bis zu 40.000 mm/s und einer volumetrischen Durchflussrate von 110 mm. Der S1 verfügt außerdem über ein Schrittmotorsystem mit geschlossenem Regelkreis und ein Ganzmetall-Heißende, das bis 350 °C ausgelegt ist. Außerdem gibt es ein Microtac-Radar, das die Druckqualität, die Genauigkeit, den Durchfluss und den Druck der ersten Schichten verbessert. Höhepunkte 1200mm/s maximale Geschwindigkeit und 40000mm/s Beschleunigung 320 x 320 x 430 mm Großes Bauvolumen Microtac Radar zur Kontrolle der Druckqualität und -genauigkeit Alle Metall-Heizgeräte könne bis zu 350°C erreichen Geräte-Selbsttest zur Aufrechterhaltung der Druckerstabilität
Die FLSun T1 hat ein Bauvolumen von 260 x 260 x 330 mm und ist auf Hochgeschwindigkeitsdruck ausgerichtet - mit einer maximalen Geschwindigkeit von 1.000 mm/s, einer Beschleunigung von bis zu 30.000 mm/s und einem Volumenstrom von 90 mm. Der T1 verfügt über einen Ganzmetallrahmen, der die Stabilität des Ultrahochgeschwindigkeits-3D-Drucks gewährleistet. Das geschlossene Design ermöglicht den perfekten Druck mit mehr Filamenten. Höhepunkte1000mm/s maximale Geschwindigkeit und 30000mm/s BeschleunigungUnterstützung verschiedener HochtemperaturmaterialienGeschlossenes Gehäuse mit AcrylmaterialVollständig automatische Nivellierung und VibrationskompensationKameras für Zeitrafferaufnahmen und Fernüberwachung
Construction an Technical Details Compatible Filament Diameter 1.75 mm Max Nozzle Temperature 300 ºC Open Filament System Yes Extruder Type Dual-gear direct drive Recommended Max Printing Speed 1000 mm/s (depends on material) Build Volume 260 mm x mm x 285 mm Max Build Plate Temp 110 ºC Build Plate Surface PEI sheet Build Plate Leveling System automatic Build Chamber During Process Closed Number of Extruders 1 Installation Space / Requirements Overall Dimensions 436 mm x 490 mm x 836 mm Net Weight 189.41 kg Voltage AC: 110 V240 V (50-60 Hz) Equipment Filament Runout Sensor Yes Power Loss Fail Safe Yes Touch Screen Yes Camera Yes Connection USB Port Yes Accuracy Shipping Shipping Box 870 mm x 600 mm x 2401 mm High-Speed Printing Without Compromise The FLSUN T1 Pro redefines high-speed 3D printing with a maximum speed of 1000 mm/s and an acceleration of 30,000 mm/s. The optimized motion control system and lightweight dual-gear direct drive extruder ensure precise movements and smooth layer transitions, even at high speeds. A peak flow rate of 90 mm/s allows for efficient material extrusion, reducing print times without sacrificing quality. Advanced Delta Motion System Delta printers offer superior speed and precision due to their reduced inertia and ability to make swift directional changes. The T1 Pro's parallel multilink structure enhances stability, ensuring accurate prints even at high accelerations. This makes it particularly effective for printing complex surfaces with smooth finishes. Optimized Cooling and Quiet Operation The upgraded turbo fan dynamically adjusts wind speed based on the print's requirements, ensuring efficient cooling and high print quality. Operating at just 55 dB, the T1 Pro provides a quiet printing experience, allowing you to focus on your work without distractions. Reliable and Consistent Performance A high-precision auto-leveling system improves first-layer adhesion and print accuracy, reducing the need for manual adjustments. The enclosed build chamber maintains a stable printing environment by gradually controlling temperature changes, leading to stronger and more reliable prints. Designed for Versatility With a hotend capable of reaching 300°C and a heated bed up to 110°C, the T1 Pro supports a wide range of materials, including PLA, PETG, TPU, ABS, and more. The textured PEI build plate ensures strong adhesion while making print removal easy. Smart Features for a Seamless Experience The 4.3" color touchscreen provides an intuitive interface, while real-time monitoring and time-lapse photography allow you to track progress effortlessly. Additional features like a filament runout sensor and power loss recovery add to the machine's reliability, ensuring uninterrupted prints. The FLSUN T1 Pro combines speed, precision, and user-friendly features, making it a solid choice for those looking to boost productivity without compromising quality.
FLSUN T1 Pro is built for speed, efficiency, and precision. With a maximum print speed of 1000 mm/s and advanced motion control, it delivers smooth and accurate prints in less time. The enclosed chamber ensures consistent print quality, while features like auto-leveling and real-time monitoring make it easy to use. Whether youre printing complex designs or large-scale models, the T1 Pro is designed to keep up with your creativity. Key FeaturesPrints up to 1000 mm/s for faster productionEnclosed chamber for stable temperature controlAuto-leveling for consistent print qualityLow-noise operation at 55 dB300°C hotend for a wide range of materialsReal-time monitoring with built-in camera Construction an Technical Details Compatible Filament Diameter 1.75 mmMax Nozzle Temperature 300 ºCOpen Filament SystemYesExtruder TypeDual-gear direct driveRecommended Max Printing Speed1000 mm/s (depends on material)Build Volume260 mm x mm x 285 mm Max Build Plate Temp110 ºCBuild Plate SurfacePEI sheetBuild Plate Leveling SystemautomaticBuild Chamber During ProcessClosedNumber of Extruders 1Installation Space / Requirements Overall Dimensions 436 mm x 490 mm x 836 mmNet Weight 18.941 kgVoltage AC: 110 V240 V (50-60 Hz)Equipment Filament Runout SensorYesPower Loss Fail SafeYesTouch ScreenYesCameraYesConnection USB Port Yes Accuracy Shipping Shipping Box 870 mm x 600 mm x 2401 mm
