- Artikel-Nr.: YP11140
- EAN: 6971636403128
3D Drucker mieten, für den schnellen Einstieg in den 3D Druck oder um Herstellungsspitzen abzufangen
- Drucker auswählen
- Dauer auswählen
- Abholung, Lieferung im Umkreis 50km Karlsruhe oder individuelle Lieferung anfragen. Kein Postversand!
- Kaution beträgt 200€
Der K1 Max kann alle Standardmaterialien drucken inklusive karbonhaltiger Materialien.
Maximale Schmelzpunkt der Filamente 320 Grad.
Kein Peek oder PEI oder ähnliche Materialien druckbar mit diesem Drucker.

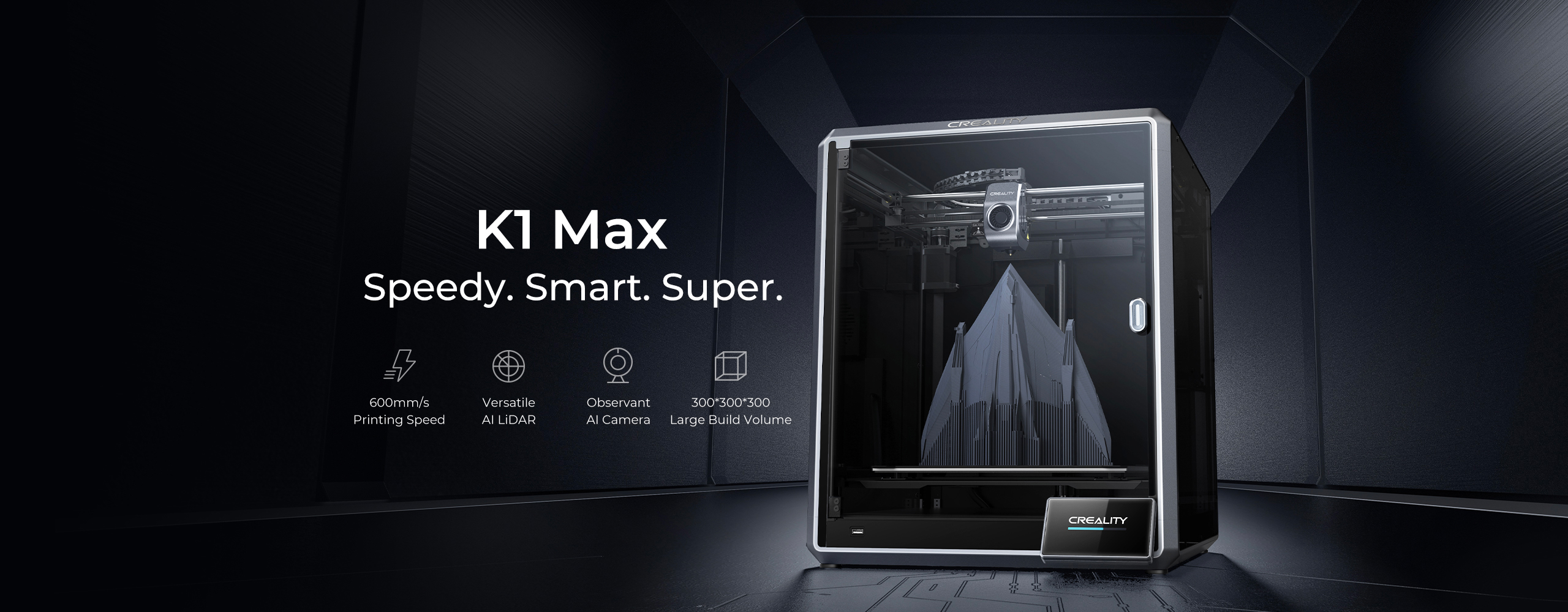

Fast, in an Epic Way
Crazy 600mm/s. The K1 series is 12 times faster than a regular FDM 3D printer. Sit tight for the thrill of breath-taking speed.
Nimble Setup for Speed
K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia. Agile and swift.
32mm³/s Flow in Full Blast
New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly. Dual-gear direct extruder, delivering 50N strong extrusion force. Hotend with a titanium alloy heatbreak and a copper alloy nozzle, working with flying colors in up to 300℃.
Construction an Technical Details | |
Usable Filament Diameter | 1.75 mm |
Max Nozzle Temperature | 300 ºC |
Open Filament System | Yes |
Extruder Type | Bowden |
Build Area | 300 mm x 300 mm x 300 mm |
Build Plate Temp Max | 120 ºC |
Build Plate Material | Aluminum plate |
Build Plate Leveling System | automatic |
Build Chamber During Process | Closed |
Extruder Number Of | 1 |
Installation Space / Requirements | |
Total Mass Overall Dimensions | 435 mm x 462 mm x 526 mm |
Total Weight | 23 kg |
Max Power Consumption | 1000 W |
Voltage | AC: 100 V240 V (50-60 Hz) |
Equipment | |
Hepa Filter | Yes |
Filament Runout Sensor | Yes |
Power Loss Fail Safe | Yes |
Touch Screen | Yes |
Camera | Yes |
Connection | |
USB Port | Yes |
Ethernet Port | Yes |
WLAN | Yes |
Accuracy | |
Layer Height | 0.1 - 0.35 mm |
Shipping | |
Shipping Box | 508 mm x 508 mm x 608 mm |
AI-assisted Carefree Printing
- AI LiDAR
- AI Camera
- Creality OS
- Multi-printers Control
AI LiDAR Takes Care of the First Layer
Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max. The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.
AI Camera Keeps a Keen Watch
K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc. It will alert you when an error occurs. It also supports real-time monitoring and creates time-lapses for sharing.
Creality OS
K1 Max adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules. The snappy dual-core 1.2GHz CPU powers high-speed printing with ease. The 8G ROM stores up to 400 model files and enables quick writing and reading.
Intelligent Aid to Your Print Farm
Once K1 Max is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud. Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.
