Bondtech DDX v3 For Creality CR-10(S)Pro/Max

145,00 € *
Inhalt: 1 Stück

inkl. MwSt.

Versandkostenfreie Lieferung innerhalb Deutschlands!

Lieferzeit ca. 1-7 Werktage

  • EXT-KIT-77-02-V3
  • 7350011414130
Multiple Hotends Compatibility This model was created to be compatible with the original... mehr
Produktinformationen "Bondtech DDX v3 For Creality CR-10(S)Pro/Max"

Multiple Hotends Compatibility

This model was created to be compatible with the original hotend of each Creality model. Users may also upgrade the hotend to Copperhead™ or Mosquito™.

Using a bed probe with DDX v3

The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no available space to attach a bed probe, like the BL Touch, to the X-carriage – CR-10 Max as example – a mount can be printed and attached to the right hand side of the DDX.

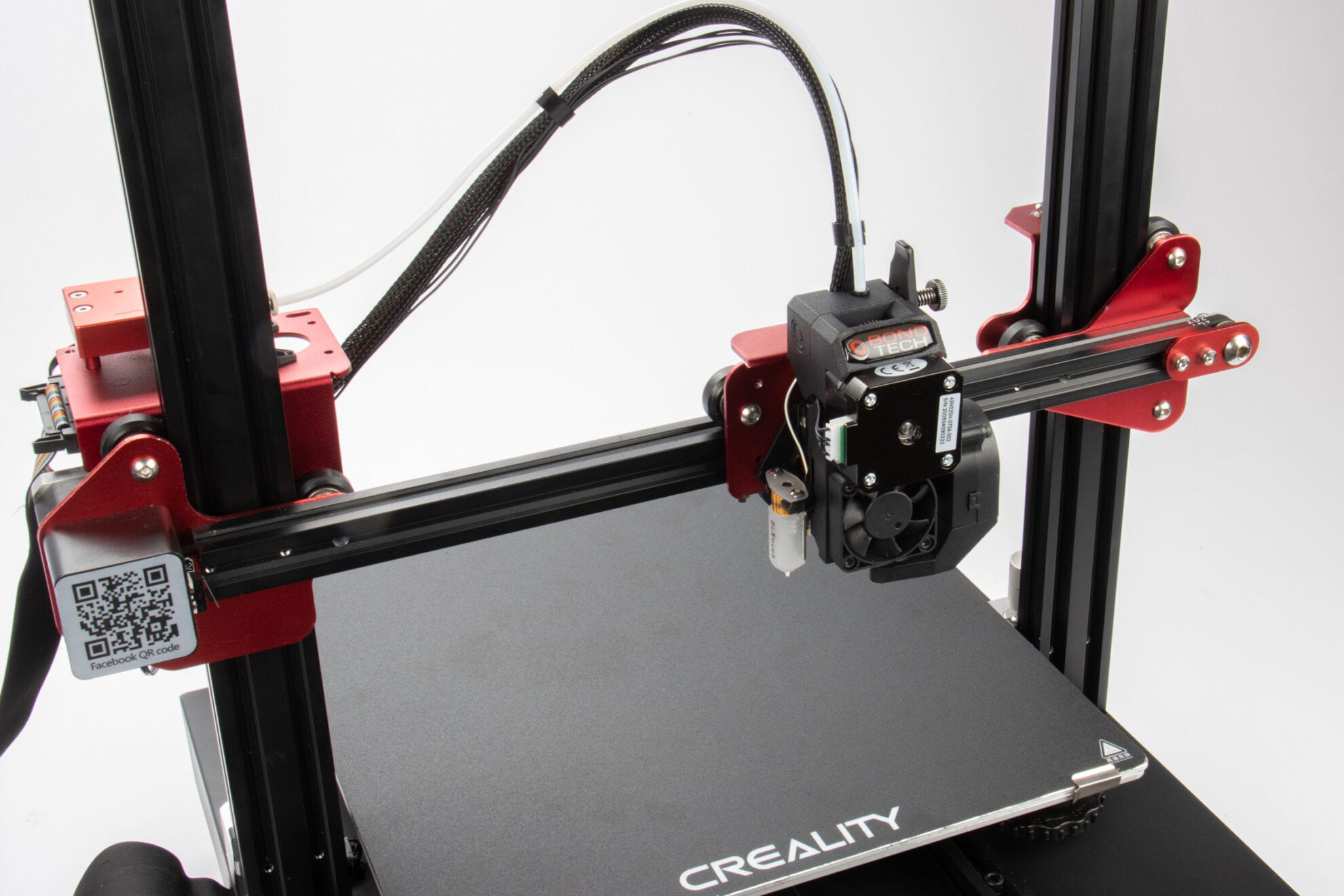

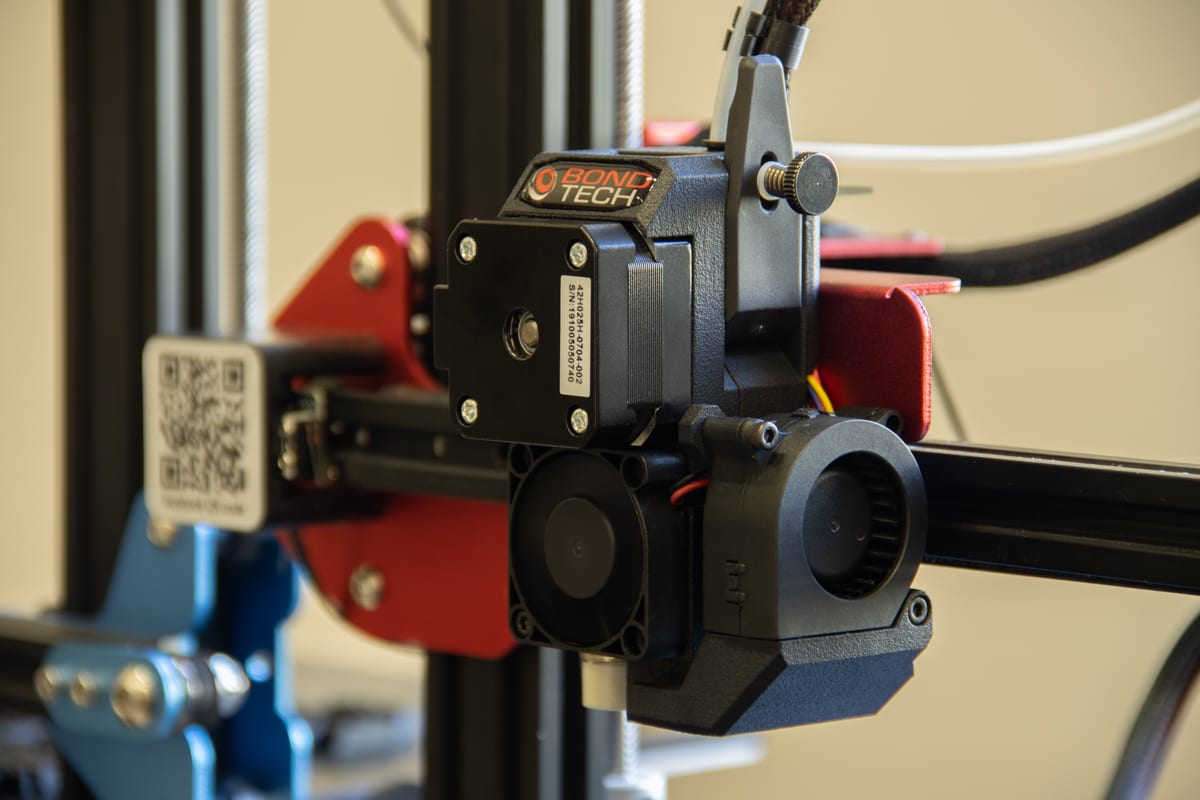

Bondtech DDX v3 Direct Drive eXtruder

This Direct Drive eXtruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG. Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading hotends Copperhead™ or Mosquito™ from Slice Engineering, gives you a direct drive extruder with trouble free material feeding and enables the use of a wider range of materials. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using industrial grade SLS technology.

Make your 3D printer even better

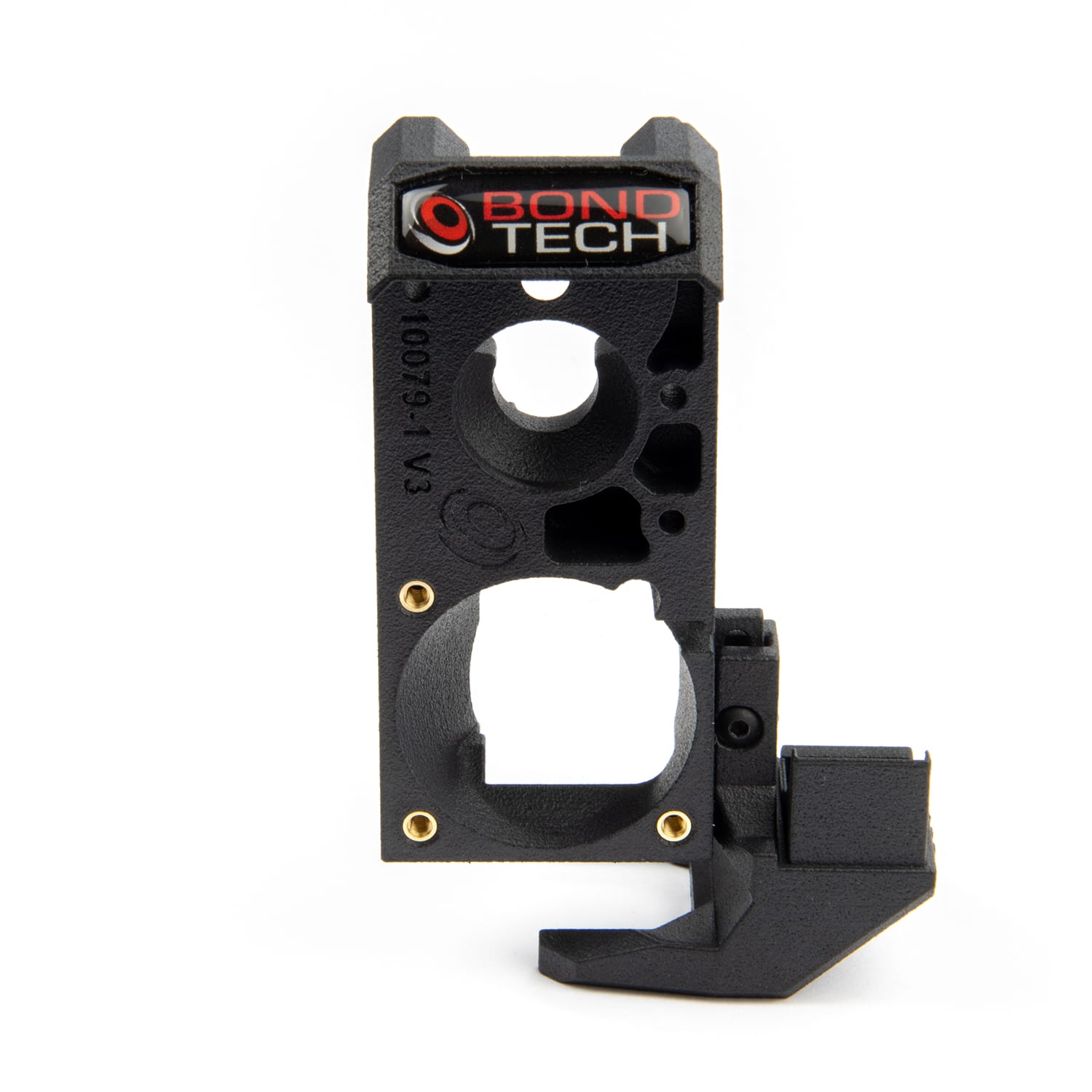

Bondtech DDX v3 Direct Drive eXtruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX v3 is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX v3 housing design provides an effective Hot-End cooling.  With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.

Easy To Setup

For ease of setup the kit is attached to the carriage with only 2 screws.

Product includes:

  • 1x DDX v3 Extruder
  • 1x Nema17 Pancake stepper motor
  • 1x Thumbscrew Assembly
  • 1x 70cm Stepper motor extension cable
  • 1x 60cm PTFE tube
  • 1x 7cm Capricorn tube
  • 4x Zip-ties
  • 3x M3x12mm screw
  • 2x M3x20mm screw
  • 1x M3x10mm button head screw
  • 1x M3 square nut

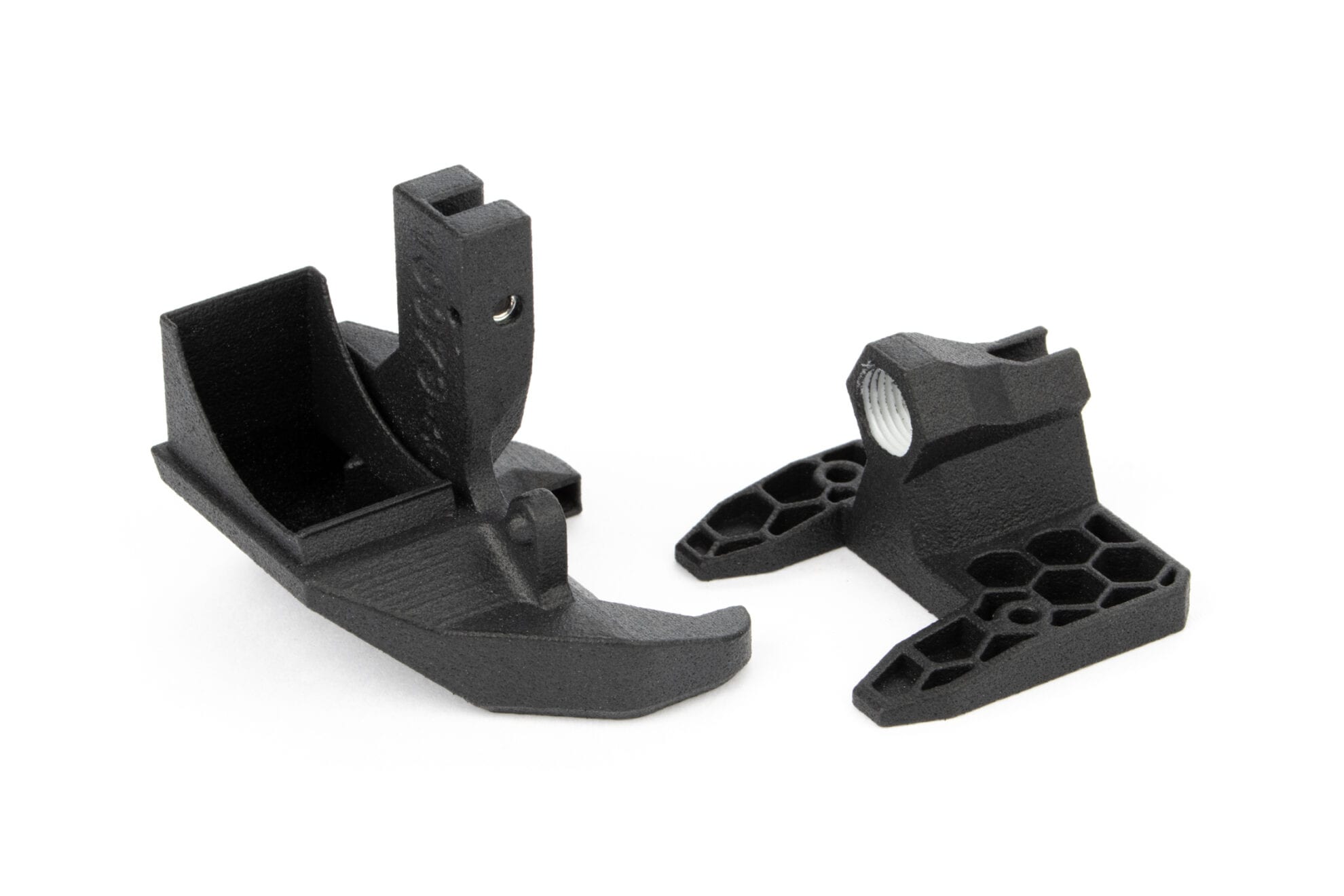

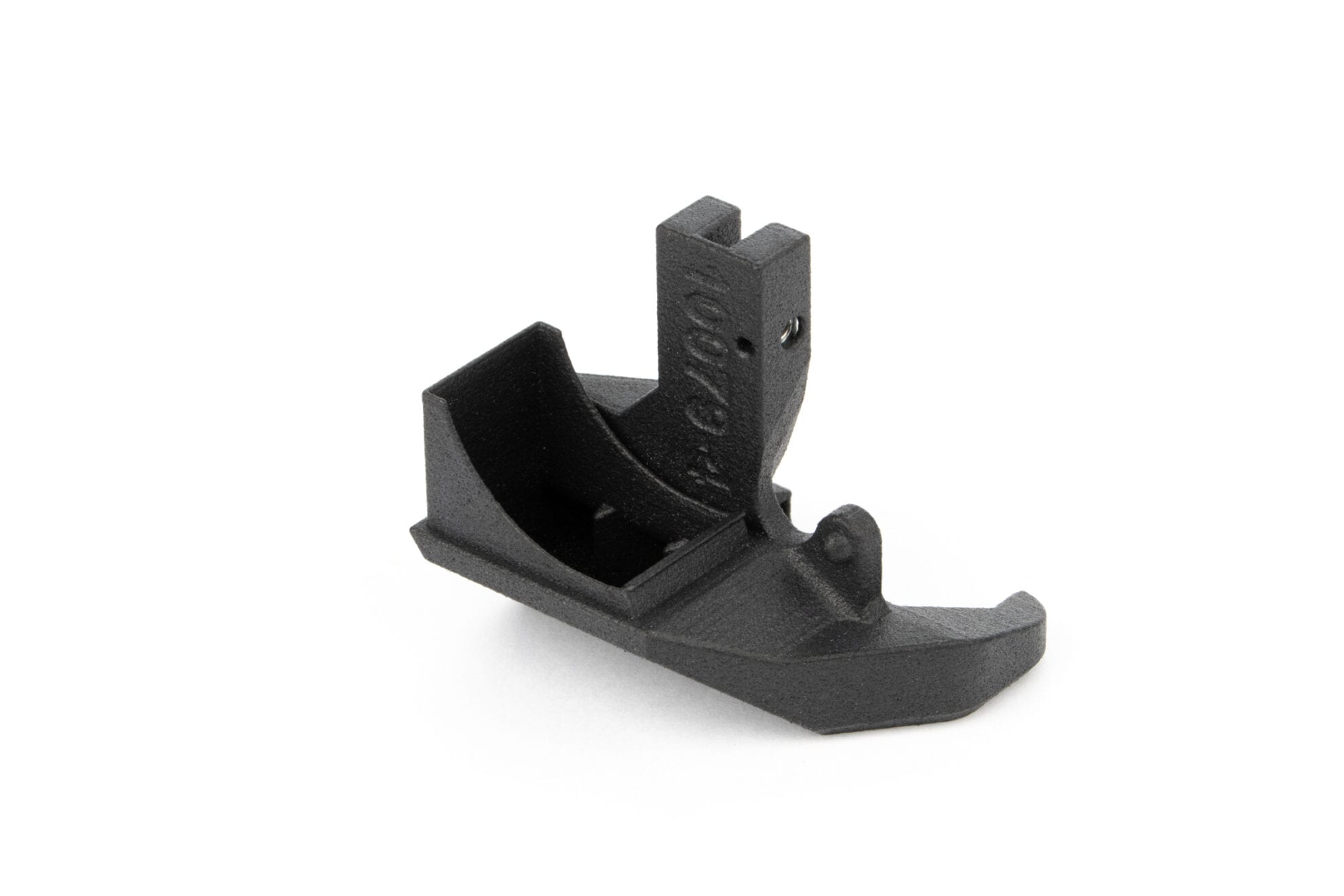

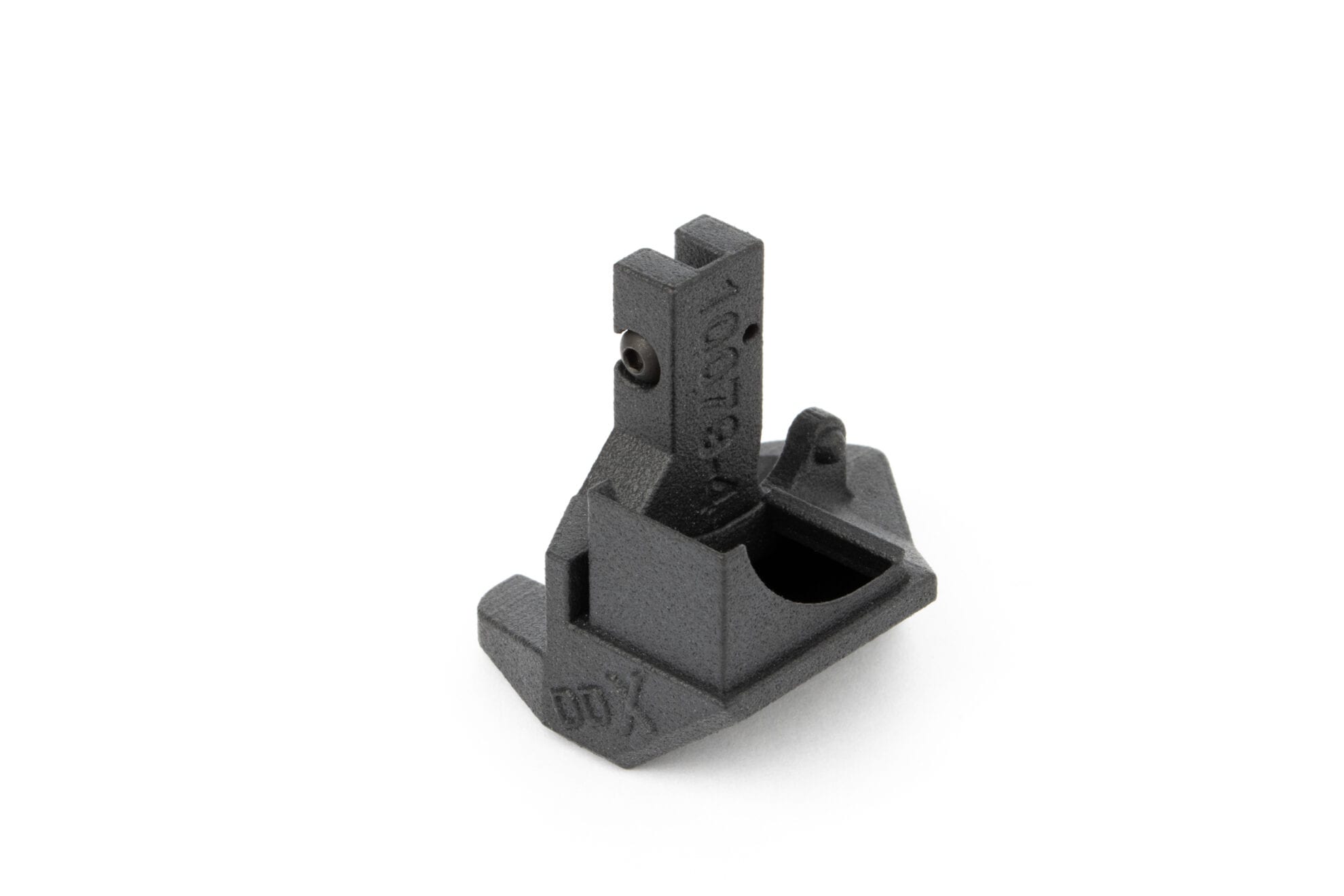

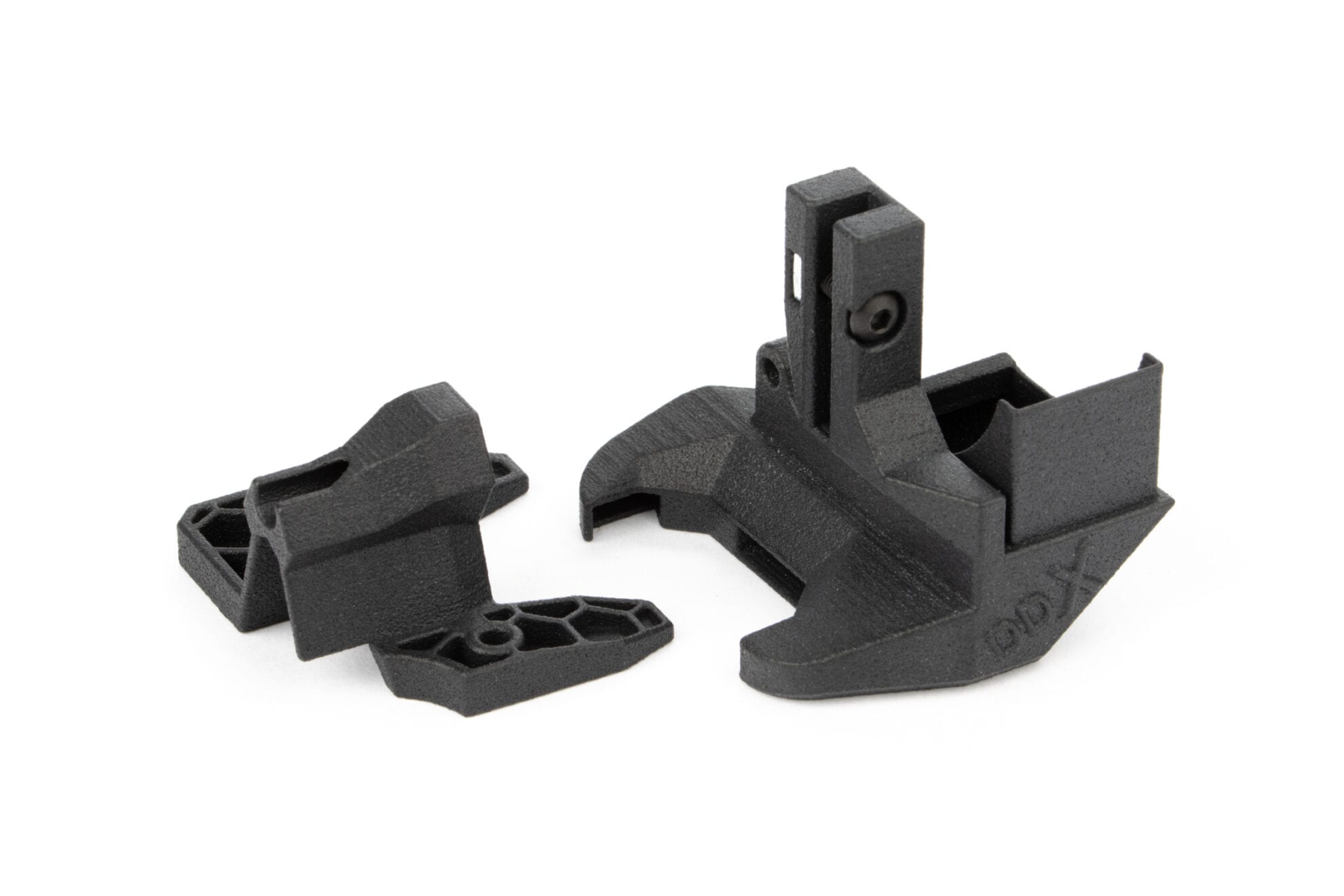

  • 1x 10079-4 PA12 Fan Shroud

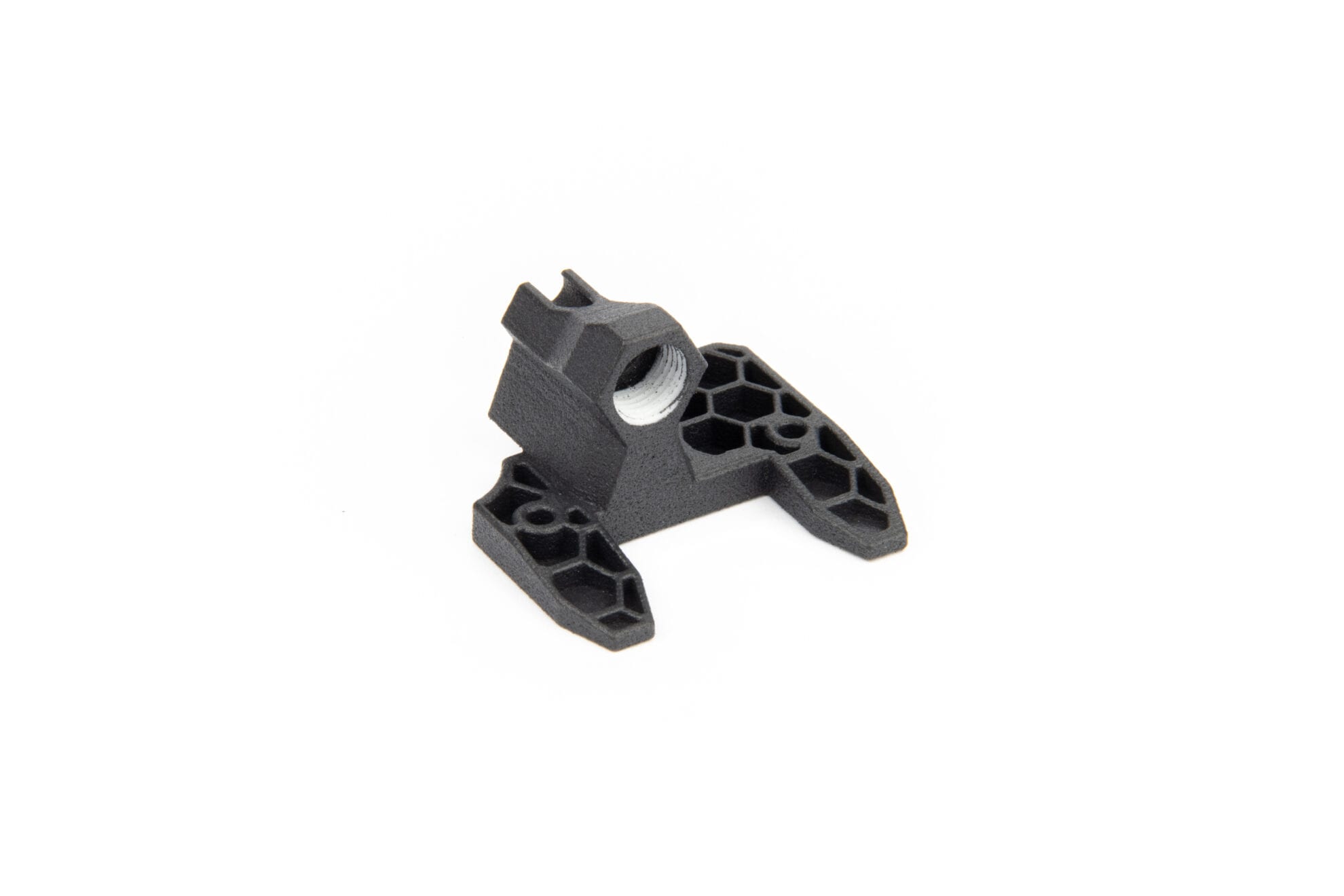

  • 1x 10079-44 SLS Bowden Adapter
    (supplied with a tapered thread to better fit the stock metal threaded push-fit)
  • 1x M3x18 Screw
  • 1x M3x20 Screw
  • 2x M3x8 Screw
  • 2x M3 5mm Square Nut


When upgrading your Creality with DDX v3

Know more about the different ways to upgrade your Creality with DDX v3 here:
The 4 Phases of Bondtech DDX for Creality

STEP BY STEP GUIDES

These are the guides that apply to the DDX Direct Drive eXtruder for Creality:


DDX For Creality Step By Step Guides


00. Changing Machine Settings


Guides For CR-10S Pro and similar


01. Stripping Down Your Creality CR-10S Pro


02. Installing DDX On Creality CR-10S Pro



Compatibility Table

Compatible with the following models:

  • CR-10S Pro;
  • CR-10S Pro v2;
  • CR-10 Max*1;

*1 Using DDX v3 on CR-10 Max

On the Cr-10 Max the z-height will be limited to in between 430mm and 455mm, instead of the original 470.
This is due to the higher position of the push-fit on our extruder, that forces the bowden to bend at a lower level under the top bar. Use the Z(height) parameter at Machine Settings in the slicer to reflect this lower limit. Select the lower value and fine tune the max Z with testing.
