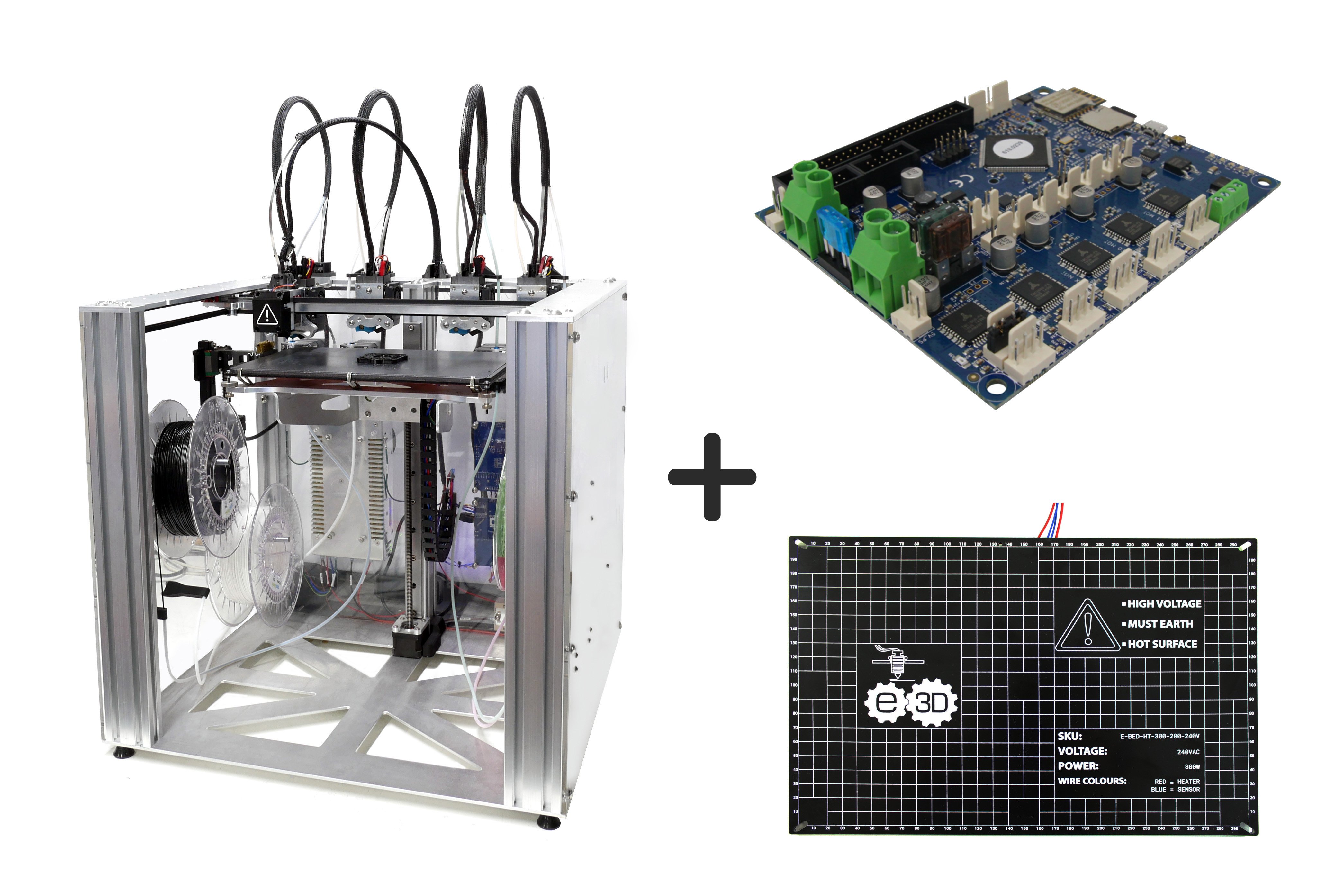

ToolChanger & Motion System Bundle inc Tools & Hemera XS Extruders / e3d V6 Hotend
3.090,00 €
Versandkostenfrei
Produktinformationen "ToolChanger & Motion System Bundle inc Tools & Hemera XS Extruders / e3d V6 Hotend"
PLEASE NOTE - Printed parts are not included in the bundle, you will need to print them, files can be found here.
The lead screw has been updated to feature a 4mm pitch.
Duet Control Options:
WiFi: Remotely connect to your ToolChanger via Computer, Laptop, or Tablet.
Ethernet: Is your machine in a garage or shed with an unstable WiFi signal? Ensure a reliable connection by hardwiring your computer or laptop to your ToolChanger.
Tool Options:

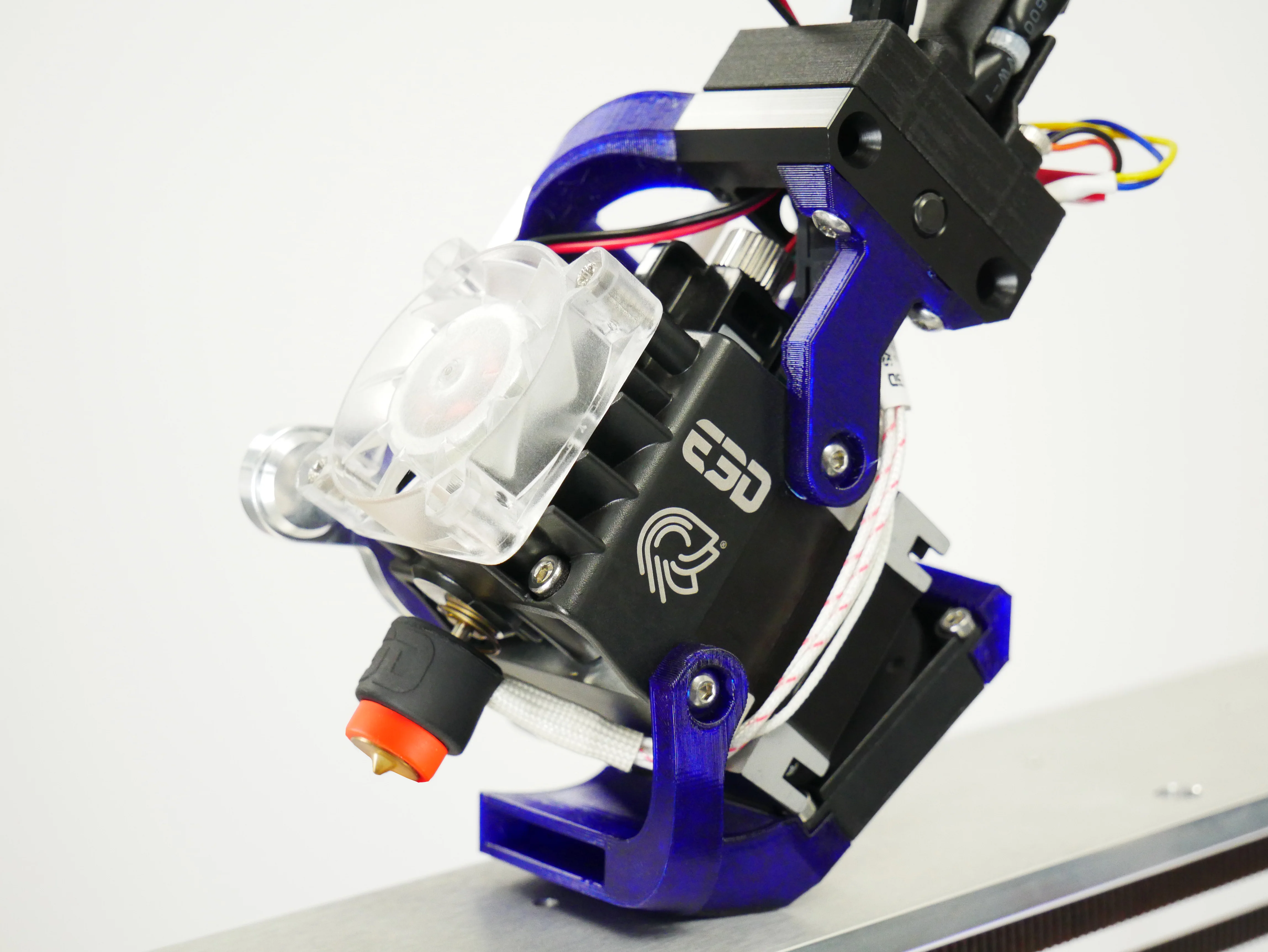

Direct: Leverage the full power of Revo Hemera XS with direct drive toolheads, providing top class filament control with short filaments paths and uncompromising grip with dual drive hobbs. Perfect for challenging materials such as TPE's and TPU's. These tools are compatible with our entire Revo ecosystem, so you can change nozzle size without tools or hot tightening using just your fingers.
Bowden: Do you need lightweight tools for super-fast speeds with no vibration artefacts such as ringing? Opt for the Bowden setup for powerful reliable extrusion from Hemera extruders paired with lightweight V6 toolheads.
Motion system
A Fabtotum inspired CoreXY Motion system provides a fast, precise, and sturdy platform. With no flying motors, no crossed belt paths, and an incredibly lightweight moving mass.
The Motion System is built for high speeds and quick accelerations. Moon’s motors and Genuine Gates 2GT Belts produce fast, reliable and longer-lasting performance.
To ensure the high accuracy of the Motion System the three main axes come pre-assembled, allowing for a simple assembly experience with no additional need to tension.
ToolHead
The ToolChanger ToolHead is the core mechanical component of the tool-changing system. Bolting directly onto the Motion System’s X-Carriage, it provides the pickup and drop-off action, enabling different ToolHeads using the standardised E3D tool plate.
Electronics
The Duet2 wiring kit provides a neatly managed plug & play solution for running the Motion System, ToolChanger ToolHead and up to four V6 Bowden HotEnd Tools. Whilst designed for the Duet2 WiFi / Ethernet in mind, it should be generally applicable to any microcontroller capable of controlling four tools.
Please note:
- The 400W ToolChanger power supply is not suitable for use with the E3D Varipower bed, if you do plan on using a Varipower bed, you will need to source a higher-wattage power supply.
- Printed parts are not included in the bundle. You will need to print them, files can be found here.
- The lead screw has been updated to feature a 4mm pitch.
Motion System Key features:
- CNC milled aluminium top-plate.
- CoreXY Fabtotum-style motion system.
- Genuine Hiwin rails & carriages.
- Genuine Gates belts, pulleys & idlers.
- Partially assembled.
- 200mm x 300mm x 300mm build volume.
ToolChanger ToolHead Key Features:
- Six-point exact-constraint kinematics.
- High-tension spring locking mechanism.
- Integrated Z-Axis endstop.
High-Temperature Heated Bed Key Features:
- 110VAC or 240VAC (depending on region)
- Max operating temperature: 200°C
- 3mm aluminium plate (Alloy: 6000 series)
- Thermistor
Motion System Includes:
- 1 x Motion system
- 1 x Duet wiring pack
- 1 x ToolChanger ToolHead
- 1 x 3 mm borosilicate glass 214 x 314 mm
- 1 x DueX5
- 1 x SSR
- 1 x High temperature Heated bed 110V or 240V
- 1 x Duet Main board WiFi or Ethernet
- 1 x 24V switching power supply
- 10 x Swiss clips
Direct Revo Hemera XS Tool Kit bundle includes:
- 1 x Motion system
- 1 x Duet wiring pack
- 1 x ToolChanger ToolHead
- 4 x Hemera tool upgrade kits
- 4 x Revo Hemera XS extruders (24V)
- 80 x Units of PTFE
- 1 x 4 mm borosilicate glass 214 x 314 mm
- 1 x DueX5
- 1 x SSR
- 1 x High temperature Heated bed 110V or 240V
- 1 x Duet main board WiFi or Ethernet
- 1 x 24V switching power supply
- 10 x Swiss clips
Bowden V6 Tool Kit bundle includes:
- 1 x Motion system
- 1 x Duet wiring pack
- 1 x ToolChanger ToolHead
- 4 x V6 bowden tools
- 4 x Standard Hemera extruders
- 80 x Units of PTFE
- 1 x 4 mm borosilicate glass 214 x 314 mm
- 1 x DueX5
- 1 x SSR
- 1 x High temperature Heated bed 110V or 240V
- 1 x Duet main board WiFi or Ethernet
- 1 x 24V switching power supply
- 10 x Swiss clips
